D-I-TASSER A6NGH8-D3

D-I-TASSER results for A6NGH8-D3

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>A6NGH8 (112 residues)
QVNTQGEISNKRSPLHLAIAYGCYPVLSILTQNGADVNAINEASMTPLHMAANMLNKEMM
ETLIAYGANVNCAVSSTGNTPLKLAVCTASSKAGRLLGAGVSCIRLLLTHGA

Predicted Secondary Structure

Sequence	20 40 60 80 100 \| \| \| \| \| QVNTQGEISNKRSPLHLAIAYGCYPVLSILTQNGADVNAINEASMTPLHMAANMLNKEMMETLIAYGANVNCAVSSTGNTPLKLAVCTASSKAGRLLGAGVSCIRLLLTHGA
Prediction	CCCCCCCCCCCCCHHHHHHHHCCHHHHHHHHHHCCCCCCCCCCCCCHHHHHHHHCCHHHHHHHHHHCCCCCCCCCCCCCCHHHHHHHHCCHHHHHHHHHHHHHHHHHHHCCC
Confidence	9877665799996799999939999999999908986766799998699999939899999999907985724389999879999995999999999631699999997189
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 \| \| \| \| \| QVNTQGEISNKRSPLHLAIAYGCYPVLSILTQNGADVNAINEASMTPLHMAANMLNKEMMETLIAYGANVNCAVSSTGNTPLKLAVCTASSKAGRLLGAGVSCIRLLLTHGA
Prediction	8151544275442040100344233004136735040322175431010100334233004126734040345426634102110033424400420474341041316458
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

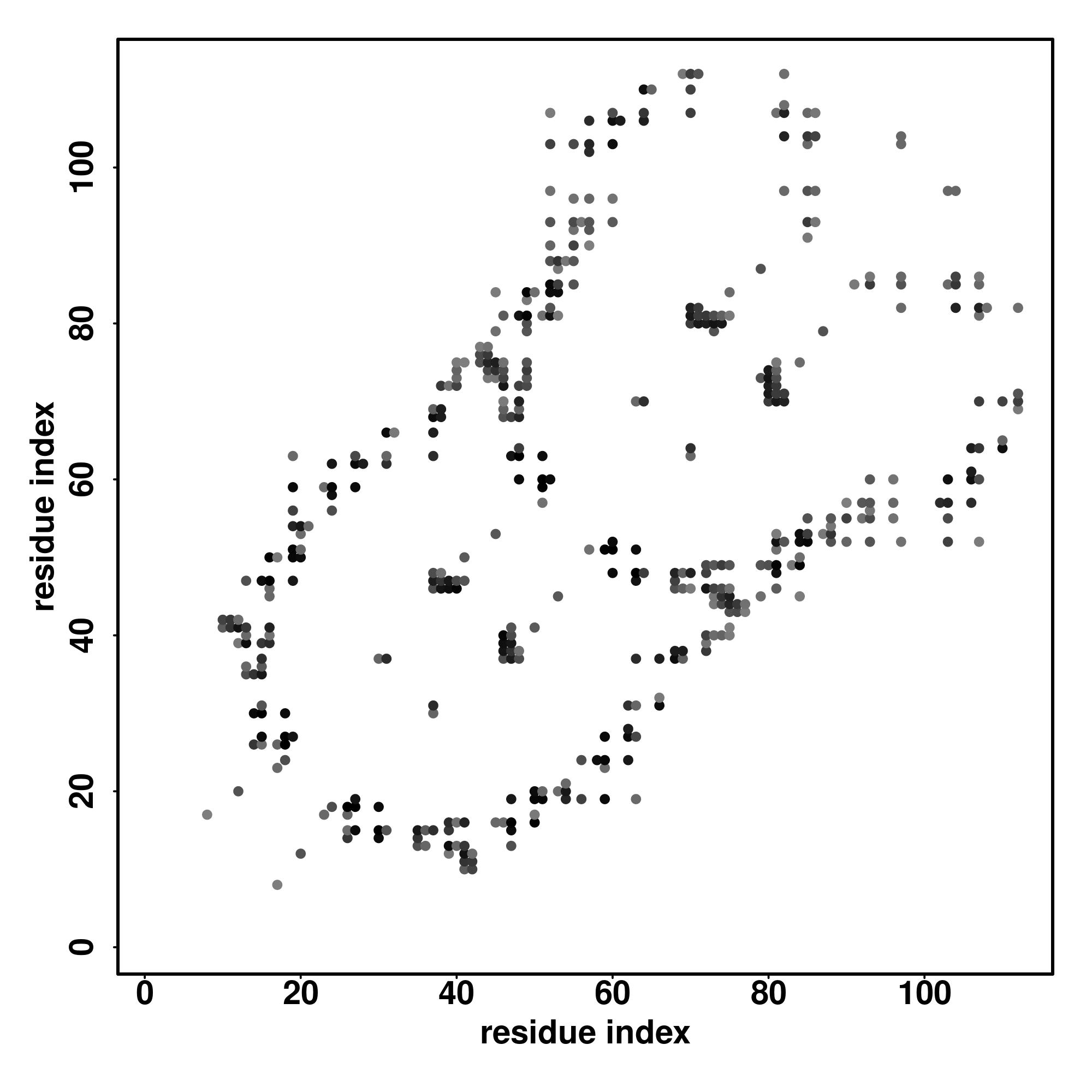

Contact Map

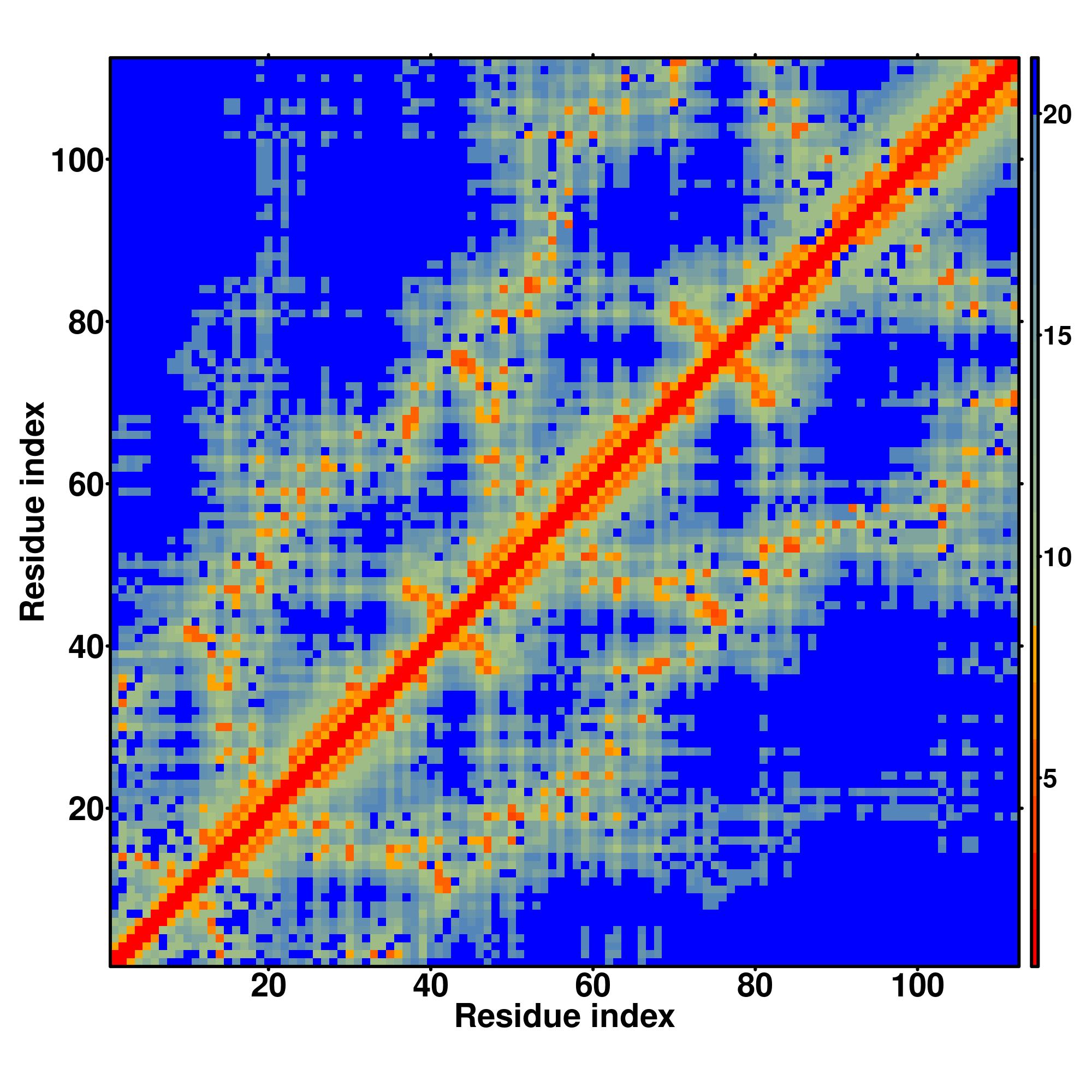

Distance Map

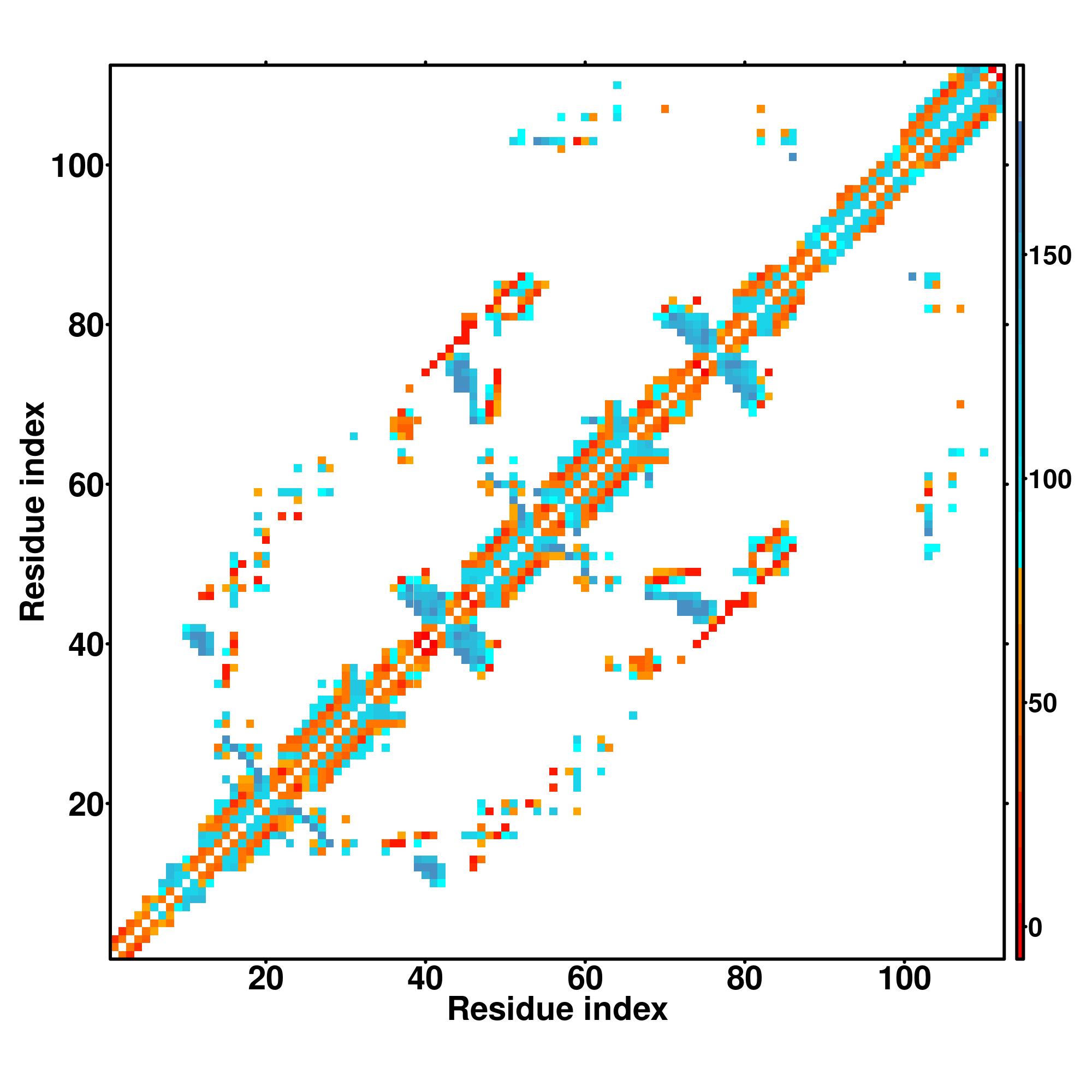

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100

                   |                   |                   |                   |                   |

SS
Seq

CCCCCCCCCCCCCHHHHHHHHCCHHHHHHHHHHCCCCCCCCCCCCCHHHHHHHHCCHHHHHHHHHHCCCCCCCCCCCCCCHHHHHHHHCCHHHHHHHHHHHHHHHHHHHCCC
QVNTQGEISNKRSPLHLAIAYGCYPVLSILTQNGADVNAINEASMTPLHMAANMLNKEMMETLIAYGANVNCAVSSTGNTPLKLAVCTASSKAGRLLGAGVSCIRLLLTHGA

6jd6B

0.23

0.21

6.72

1.33

DEthreader

LANPFVLDDEGATLMHYAVQTASAPTIKLLLLYNADINAQDRDGWTPLHVAVQARRSDIVKLLLIKGADIEVKNK-DGLTPLGLCLYLG----REI--RTYEVMKLLKEFPL

2f8yA2

0.25

0.21

6.63

2.09

SPARKS-K

------VDDLGKSALHWAAAVNNVDAAVVLLKNGANKDMQNNREETPLFLAAREGSYETAKVLLDHFANRDIT-DHMDRLPRDIAQERMHH----------DIVRLLDEYNL

1bu9A

0.25

0.22

6.93

0.42

MapAlign

GANPDLKDRTGFAVIHDAARAGFLDTLQTLLEFQADVNIEDNEGNLPLHLAAKEGHLRVVEFLVKTASNVGHRNHKG-DTACDLARLY----------GRNEVVSLMQANGA

5vrqA

0.17

5.56

0.26

CEthreader

IVHATTLRYVPFQPIHQAVVLDYAEGITLLASMGAQLTNPLGMRDTPVILAARLGKINALAALLELSLSLESENNHTGHTAVEELCERMAN--ENDKADALRGIAMLICRGA

6c9kA

0.38

0.34

10.06

1.48

MUSTER

GADVNAHDDQGSTPLHLAAWIGHPEIVEVLLKHGADVNARDTDGWTPLHLAADNGHLEIVEVLLKYGADVNA-QDAYGLTPLHLAADRGH----------LEIVEVLLKHGA

6mwqA

0.37

0.35

10.34

0.93

HHsearch

------SGSDLGKKLLEAARAGQDDEVRILMANGADVNALDRFGLTPLHLAAQRGHLEIVEVLLKCGADVNAA-DLWGQTPLHLAATAGHLEIVEVLDGHLEIVEVLLKHGA

5le2A3

0.31

0.30

9.19

1.73

FFAS-3D

GADVNANDERGHTPLHLAAYTGHLEIVEVLLKNGAGVNATDVIGTAPLHLAAMWGHLEIVEVLLKNGADVRAQ-DKFGKTPKDLARDNGNEWIRELLAGHRDEVEDLIKNGA

3jxjA

0.27

8.21

0.78

EigenThreader

FINSPFRDVYYQTALHIAIERRCKHYVELLVEKGADVHAQAYFYFLPLSLAACTNQPHIVHYLTENGADLRRQDS-RGNTVLHALVAIADN-TRENTKFVTKMYDLLLIKCA

5aq8A

0.33

9.91

1.31

CNFpred

GADVDASDVFGYTPLHLAAYWGHLEIVEVLLKNGADVNAMDSDGMTPLHLAAKWGYLEIVEVLLKHGADVNAQ-DKFGKTPFDLAIDNGNEDAAGVLLTAAKVKDAADQLGA

3deoA

0.25

0.24

7.49

1.33

DEthreader

SLRVDAVDENGRTALLFVAGLGSDKCVRLLAEAGADLDHRDMGGLTALHMAAGYVRPEVVEALVELGADIEVEDE-RGLTALELAREIKTPKMQFGRRILEKVINVLEGQV-

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.8698

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	3deoA	0.89	1.48	0.234	0.973	model1_3deoA.pdb.gz
2	6jd6A	0.87	1.29	0.238	0.929	model1_6jd6A.pdb.gz
3	2qyjA	0.87	0.87	0.356	0.902	model1_2qyjA.pdb.gz
4	5le2A	0.87	0.89	0.366	0.902	model1_5le2A.pdb.gz
5	6molA2	0.86	0.88	0.396	0.902	model1_6molA2.pdb.gz
6	6fesA1	0.86	0.89	0.366	0.902	model1_6fesA1.pdb.gz
7	4oauC	0.86	1.31	0.276	0.938	model1_4oauC.pdb.gz
8	6c9kA	0.86	0.88	0.376	0.902	model1_6c9kA.pdb.gz
9	2dvwA	0.86	0.89	0.307	0.902	model1_2dvwA.pdb.gz
10	1wdyA3	0.86	1.26	0.276	0.938	model1_1wdyA3.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0019899	0.67	enzyme binding
GO:0008092	0.60	cytoskeletal protein binding
GO:0030507	0.56	spectrin binding
GO:0008093	0.56	cytoskeletal adaptor activity
GO:0005198	0.53	structural molecule activity
GO:0051117	0.52	ATPase binding
GO:0005200	0.52	structural constituent of cytoskeleton

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.90	cellular process
GO:0065007	0.83	biological regulation
GO:0044699	0.79	single-organism process
GO:0050789	0.78	regulation of biological process
GO:0050794	0.76	regulation of cellular process
GO:0044763	0.72	single-organism cellular process
GO:0016043	0.65	cellular component organization
GO:0051179	0.64	localization
GO:0006810	0.63	transport
GO:1902578	0.58	single-organism localization
GO:0051641	0.58	cellular localization
GO:0071702	0.57	organic substance transport
GO:0061024	0.57	membrane organization
GO:0046907	0.57	intracellular transport
GO:0045184	0.57	establishment of protein localization
GO:0044765	0.57	single-organism transport
GO:0008152	0.57	metabolic process
GO:0008104	0.57	protein localization
GO:0072661	0.56	protein targeting to plasma membrane
GO:0071704	0.55	organic substance metabolic process
GO:0044238	0.54	primary metabolic process
GO:0044237	0.54	cellular metabolic process
GO:0019222	0.54	regulation of metabolic process
GO:0016192	0.54	vesicle-mediated transport
GO:0060255	0.53	regulation of macromolecule metabolic process
GO:0044260	0.52	cellular macromolecule metabolic process
GO:0006888	0.52	ER to Golgi vesicle-mediated transport
GO:0007165	0.51	signal transduction

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	1.00	cell part
GO:0044424	0.99	intracellular part
GO:0043226	0.95	organelle
GO:0043229	0.94	intracellular organelle
GO:0043227	0.93	membrane-bounded organelle
GO:0043231	0.92	intracellular membrane-bounded organelle
GO:0005634	0.85	nucleus
GO:0005737	0.83	cytoplasm
GO:0044444	0.66	cytoplasmic part
GO:0044422	0.65	organelle part
GO:0044446	0.57	intracellular organelle part
GO:0032991	0.52	macromolecular complex
GO:0016020	0.50	membrane

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	3draA	0.542	3.74	0.108	0.821	2.5.1.58 2.5.1.59	NA
2	0.060	2ix6E	0.544	3.83	0.075	0.893	1.3.3.6	NA
3	0.060	3c5wA	0.540	4.02	0.098	0.884	3.1.3.16	60
4	0.060	3mddA	0.520	4.30	0.073	0.920	1.3.99.3	68
5	0.060	2v1yA	0.257	4.34	0.066	0.464	2.7.1.153	48

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.22	3twtB	0.856	0.95	0.347	0.902	1.06	III	complex1.pdb.gz	10,12,17,20,21,22,45,50,53,54,56,74,77,79,84
2	0.09	1bi81	0.801	1.22	0.247	0.866	1.02	III	complex2.pdb.gz	17,21,23,25,41,45,50,51,54,55,74,75,84,87,88,100,102
3	0.08	1g3n3	0.812	1.31	0.230	0.893	0.87	III	complex3.pdb.gz	8,12,17,19,21,22,24,41,43,45,50,53,54,55,56,58
4	0.07	1svx0	0.860	0.95	0.366	0.902	0.96	III	complex4.pdb.gz	42,43,45,50,53,54,74,101
5	0.07	2bkk1	0.866	0.90	0.347	0.902	1.05	III	complex5.pdb.gz	13,17,20,42,43,45,49,53,54,74,75,76,79,84,87,88
6	0.06	2rfmB	0.828	1.26	0.267	0.902	0.92	BU2	complex6.pdb.gz	55,97,100

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
