D-I-TASSER A6NKF1-D2

D-I-TASSER results for A6NKF1-D2

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>A6NKF1 (131 residues)
AARLFRLLQTLPYLPSCAVQCHVGHARREALARFARAFSTPKGQTLPLGFMVNLLALDGL
REARDLCQAHGLPLDGEERVVFLRGRYVEEGLPPASTCKVLVESKLRGRTLEEVVMAEEE
DEGTDRPGSPA

Predicted Secondary Structure

Sequence	20 40 60 80 100 120 \| \| \| \| \| \| AARLFRLLQTLPYLPSCAVQCHVGHARREALARFARAFSTPKGQTLPLGFMVNLLALDGLREARDLCQAHGLPLDGEERVVFLRGRYVEEGLPPASTCKVLVESKLRGRTLEEVVMAEEEDEGTDRPGSPA
Prediction	CCHHHHHHHHCCHHHHHHHHHHHHHHHHHHHHHHHHHHCCCCCCCCCHHHHHHHHCCCCHHHHHHHHHHHCCSSCCCCCSSSSCCCCCCCCCCCCHHHHHHHHHHCCCCCHHHHHCCCCCCCCCCCCCCCC
Confidence	91379999858858999999999999999999999996367899868999999984999999999999939755589828972477788777773038999996227994999971898643356899999
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 120 \| \| \| \| \| \| AARLFRLLQTLPYLPSCAVQCHVGHARREALARFARAFSTPKGQTLPLGFMVNLLALDGLREARDLCQAHGLPLDGEERVVFLRGRYVEEGLPPASTCKVLVESKLRGRTLEEVVMAEEEDEGTDRPGSPA
Prediction	73310410470320000002320440043003201302345474502142024103143372035006324040367431203445235775434531241034236733141003134475437447668
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

Contact Map

Distance Map

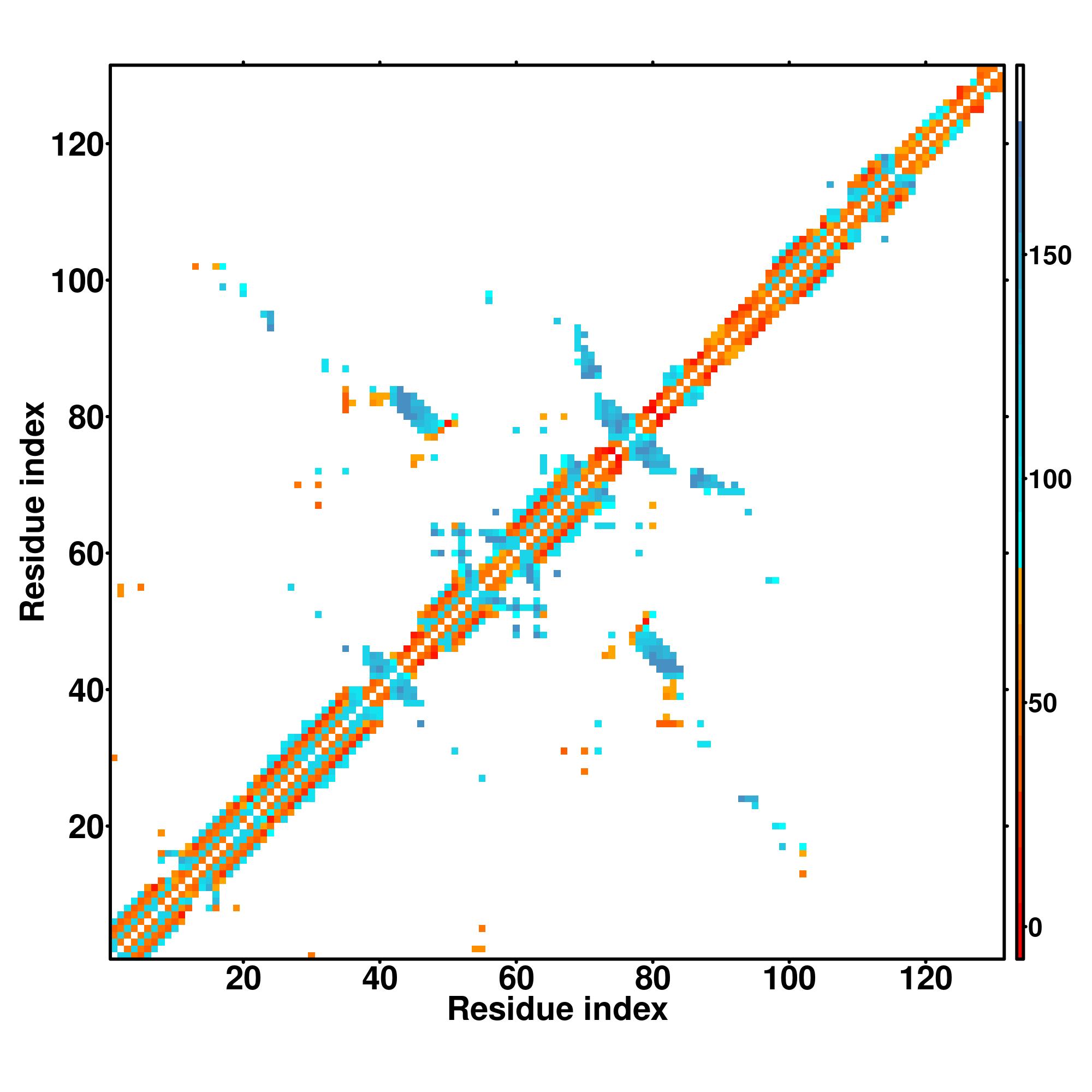

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100                 120

                   |                   |                   |                   |                   |                   |

SS
Seq

CCHHHHHHHHCCHHHHHHHHHHHHHHHHHHHHHHHHHHCCCCCCCCCHHHHHHHHCCCCHHHHHHHHHHHCCSSCCCCCSSSSCCCCCCCCCCCCHHHHHHHHHHCCCCCHHHHHCCCCCCCCCCCCCCCC
AARLFRLLQTLPYLPSCAVQCHVGHARREALARFARAFSTPKGQTLPLGFMVNLLALDGLREARDLCQAHGLPLDGEERVVFLRGRYVEEGLPPASTCKVLVESKLRGRTLEEVVMAEEEDEGTDRPGSPA

5ubpA

0.18

0.16

5.20

1.17

DEthreader

YARFFQLMQSLPLLMGFFLQMHLTDIRFYALRALSHTL-NKKHKPIPFIYLENMLLFNNRQEIIEFCNYYSIEIINGDAADLKTLQHYHLQPLKKTYL-TCLERRLQTTY-KGLING--------------

5ubpA

0.20

0.18

5.63

1.94

SPARKS-K

YARFFQLMQSLPLLMGFFLQMHLTDIRFYALRALSHTLN-KKHKPIPFIYLENMLLFNNRQEIIEFCNYYSIEIINGDAADLQHYSHKLSETQPLKKTYTCLERRLQKTTYKGLING--------------

5ubpA

0.21

0.18

5.80

1.24

MapAlign

YARFFQLMQSLPLLMGFFLQMHLTDIRFYALRALSHT-LNKKHKPIPFIYLENMLLFNNRQEIIEFCNYYSIEIINGDAADL-K-TLQHYSHPLKKTYLTCLERRLQKTTYKGLI----------------

5ubpA2

0.21

0.18

5.83

1.11

CEthreader

YARFFQLMQSLPLLMGFFLQMHLTDIRFYALRALSHTLN-KKHKPIPFIYLENMLLFNNRQEIIEFCNYYSIEIINGDAADLKTLQHYSHTQPLKKTYLTCLERRLQKTTYKGLING--------------

3t5vA

0.22

0.20

6.27

1.46

MUSTER

YARFFQLMQSLPLLMGFFLQMHLTDIRFYALRALSHTLNK-KHKPIPFIYLENMLLFNNRQEIIEFCNYYSIEIINGDAADLKTLQHYSETQPLKKTYLTCLERRLQKTTYKGLINGGEDN----------

5ubpA

0.21

0.18

5.83

3.29

HHsearch

YARFFQLMQSLPLLMGFFLQMHLTDIRFYALRALSHTLNK-KHKPIPFIYLENMLLFNNRQEIIEFCNYYSIEIINGDAADLKTYSHKLSETPLKKTYLTCLERRLQKTTYKGLING--------------

5ubpA2

0.22

0.19

6.03

1.69

FFAS-3D

-ARFFQLMQSLPLLMGFFLQMHLTDIRFYALRALSHTLNK-KHKPIPFIYLENMLLFNNRQEIIEFCNYYSIEIINGDAADLHYSHKLSETQPLKKTYLTCLERRLQKTTYKGLING--------------

3t5vA

0.15

0.14

4.61

1.18

EigenThreader

FYARFFQLMQLPLLMGFFLQMHLTDIRFYALRALSHTLNKKHKPIPF-IYLENMLLFNNRQEIIEFCNYYSIEIING-DAADLKTLQHYSHKLKKTYLTCLERRLQK-TTYKGLINGGEDN----------

5ubpA

0.22

0.19

6.04

1.29

CNFpred

YARFFQLMQSLPLLMGFFLQMHLTDIRFYALRALSHTLN-KKHKPIPFIYLENMLLFNNRQEIIEFCNYYSIEIINGDAADLKTLQHYSHKLPLKKTYLTCLERRLQKTTYKGLING--------------

5ubpA2

0.18

0.16

5.20

1.17

DEthreader

YARFFQLMQSLPLLMGFFLQMHLTDIRFYALRALSHTL-NKKHKPIPFIYLENMLLFNNRQEIIEFCNYYSIEIINGDAADLKTLQHYHLQPLKKTYL-TCLERRLQTTY-KGLING--------------

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.7202

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	3t5vA	0.84	1.33	0.208	0.901	model1_3t5vA.pdb.gz
2	5ubpA2	0.84	1.15	0.207	0.885	model1_5ubpA2.pdb.gz
3	1p4xA	0.54	4.18	0.050	0.847	model1_1p4xA.pdb.gz
4	4rgwA	0.53	4.09	0.065	0.809	model1_4rgwA.pdb.gz
5	4cr2T	0.52	2.18	0.124	0.618	model1_4cr2T.pdb.gz
6	5b04C	0.51	4.48	0.083	0.817	model1_5b04C.pdb.gz
7	4b0zA	0.51	1.81	0.156	0.588	model1_4b0zA.pdb.gz
8	3ecsC	0.45	4.44	0.101	0.756	model1_3ecsC.pdb.gz
9	3bddA	0.40	3.47	0.043	0.573	model1_3bddA.pdb.gz
10	2bv6A	0.40	3.57	0.096	0.565	model1_2bv6A.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0097159	0.48	organic cyclic compound binding
GO:1901363	0.47	heterocyclic compound binding
GO:0003676	0.33	nucleic acid binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.90	cellular process
GO:0065007	0.87	biological regulation
GO:0050789	0.87	regulation of biological process
GO:0050794	0.86	regulation of cellular process
GO:0044699	0.78	single-organism process
GO:0016043	0.68	cellular component organization
GO:0022402	0.65	cell cycle process
GO:0006996	0.65	organelle organization
GO:0044763	0.62	single-organism cellular process
GO:0006810	0.61	transport
GO:0071702	0.58	organic substance transport
GO:0022607	0.58	cellular component assembly
GO:0048523	0.57	negative regulation of cellular process
GO:0048583	0.55	regulation of response to stimulus
GO:0046907	0.55	intracellular transport
GO:1902589	0.54	single-organism organelle organization
GO:0009968	0.54	negative regulation of signal transduction
GO:0007017	0.54	microtubule-based process
GO:0051298	0.53	centrosome duplication
GO:0051225	0.53	spindle assembly
GO:0050776	0.53	regulation of immune response
GO:0046426	0.53	negative regulation of JAK-STAT cascade
GO:0006913	0.53	nucleocytoplasmic transport
GO:0008152	0.52	metabolic process
GO:0071704	0.51	organic substance metabolic process
GO:0044238	0.51	primary metabolic process
GO:0044237	0.50	cellular metabolic process
GO:0043170	0.50	macromolecule metabolic process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044424	1.00	intracellular part
GO:0044446	0.97	intracellular organelle part
GO:0043229	0.88	intracellular organelle
GO:0043227	0.87	membrane-bounded organelle
GO:0043231	0.86	intracellular membrane-bounded organelle
GO:0005634	0.85	nucleus
GO:0044428	0.66	nuclear part
GO:0044444	0.58	cytoplasmic part
GO:0043232	0.50	intracellular non-membrane-bounded organelle

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1tkiB	0.466	4.16	0.057	0.725	2.7.11.1	NA
2	0.060	1kraC	0.466	4.39	0.035	0.771	3.5.1.5	NA
3	0.060	2zxqA	0.450	4.61	0.100	0.786	3.2.1.97	NA
4	0.060	2azdB	0.448	5.11	0.063	0.801	2.4.1.1	NA
5	0.060	1wmkB	0.450	4.10	0.073	0.695	2.7.11.1 2.7.1.37	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.01	3fykX	0.449	4.26	0.129	0.741	0.20	B98	complex1.pdb.gz	23,57,101,102
2	0.01	3r2bA	0.391	4.95	0.101	0.748	0.12	05B	complex2.pdb.gz	62,63,71
3	0.01	4ubpC	0.372	4.97	0.040	0.687	0.19	HAE	complex3.pdb.gz	24,65,67,70,91
4	0.01	1vb50	0.476	4.10	0.106	0.733	0.11	III	complex4.pdb.gz	60,64,114
5	0.01	2p8yT	0.452	5.19	0.048	0.885	0.11	SO1	complex5.pdb.gz	56,57,59,97,98
6	0.01	3a9cB	0.477	4.43	0.115	0.779	0.10	RUB	complex6.pdb.gz	59,60,61
7	0.01	3r30A	0.386	5.35	0.080	0.756	0.20	CD2	complex7.pdb.gz	62,66,67,72,80
8	0.01	3a2cB	0.462	4.19	0.111	0.741	0.15	PDY	complex8.pdb.gz	66,67,75

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
