D-I-TASSER Q0VAK6

D-I-TASSER results for Q0VAK6

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q0VAK6
Protein Name: Leiomodin-3
Gene Name: LMOD3

Input Sequence in FASTA format

>Q0VAK6 (560 residues)
MSEHSRNSDQEELLDEEINEDEILANLSAEELKELQSEMEVMAPDPSLPVGMIQKDQTDK
PPTGNFNHKSLVDYMYWEKASRRMLEEERVPVTFVKSEEKTQEEHEEIEKRNKNMAQYLK
EKLNNEIVANKRESKGSSNIQETDEEDEEEEDDDDDDEGEDDGEESEETNREEEGKAKEQ
IRNCENNCQQVTDKAFKEQRDRPEAQEQSEKKISKLDPKKLALDTSFLKVSTRPSGNQTD
LDGSLRRVRKNDPDMKELNLNNIENIPKEMLLDFVNAMKKNKHIKTFSLANVGADENVAF
ALANMLRENRSITTLNIESNFITGKGIVAIMRCLQFNETLTELRFHNQRHMLGHHAEMEI
ARLLKANNTLLKMGYHFELPGPRMVVTNLLTRNQDKQRQKRQEEQKQQQLKEQKKLIAML
ENGLGLPPGMWELLGGPKPDSRMQEFFQPPPPRPPNPQNVPFSQRSEMMKKPSQAPKYRT
DPDSFRVVKLKRIQRKSRMPEAREPPEKTNLKDVIKTLKPVPRNRPPPLVEITPRDQLLN
DIRHSSVAYLKPVQLPKELA

Predicted Contact and Distance Map Used in D-I-TASSER simulation

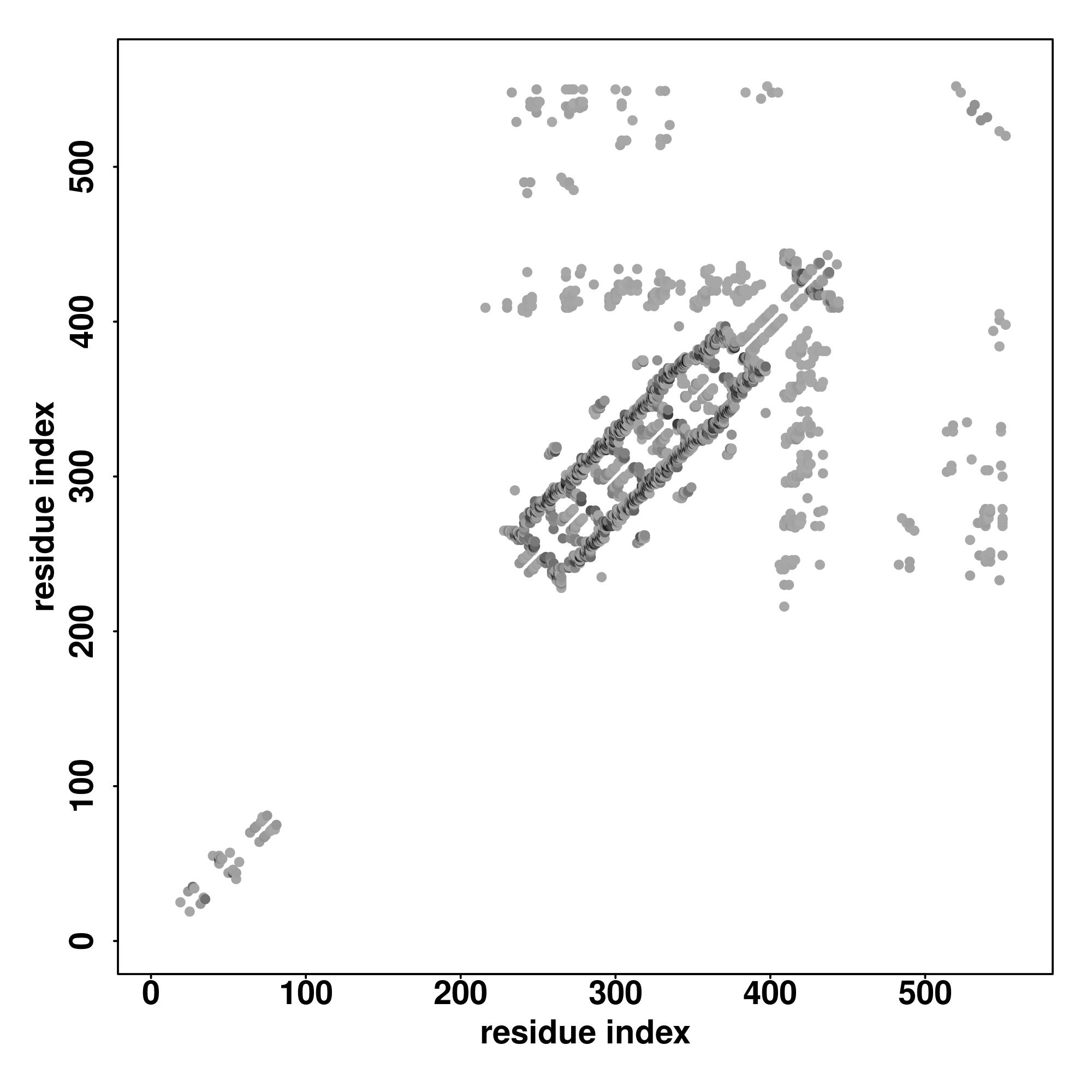

Contact Map

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q0VAK6-D1	1-560	560		MSEHSRNSDQEELLDEEINEDEILANLSAEELKELQSEMEVMAPDPSLPVGMIQKDQTDKPPTGNFNHKSLVDYMYWEKASRRMLEEERVPVTFVKSEEKTQEEHEEIEKRNKNMAQYLKEKLNNEIVANKRESKGSSNIQETDEEDEEEEDDDDDDEGEDDGEESEETNREEEGKAKEQIRNCENNCQQVTDKAFKEQRDRPEAQEQSEKKISKLDPKKLALDTSFLKVSTRPSGNQTDLDGSLRRVRKNDPDMKELNLNNIENIPKEMLLDFVNAMKKNKHIKTFSLANVGADENVAFALANMLRENRSITTLNIESNFITGKGIVAIMRCLQFNETLTELRFHNQRHMLGHHAEMEIARLLKANNTLLKMGYHFELPGPRMVVTNLLTRNQDKQRQKRQEEQKQQQLKEQKKLIAMLENGLGLPPGMWELLGGPKPDSRMQEFFQPPPPRPPNPQNVPFSQRSEMMKKPSQAPKYRTDPDSFRVVKLKRIQRKSRMPEAREPPEKTNLKDVIKTLKPVPRNRPPPLVEITPRDQLLNDIRHSSVAYLKPVQLPKELA

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.568

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	6mu1A	0.34	7.86	0.028	0.568	model1_6mu1A.pdb.gz
2	8c4aA	0.34	7.01	0.029	0.512	model1_8c4aA.pdb.gz
3	6ar6A	0.34	7.80	0.046	0.555	model1_6ar6A.pdb.gz
4	7pogA	0.33	7.87	0.049	0.555	model1_7pogA.pdb.gz
5	3qmzA	0.33	7.34	0.038	0.525	model1_3qmzA.pdb.gz
6	7n95A	0.33	7.89	0.046	0.552	model1_7n95A.pdb.gz
7	6z2wE	0.33	7.27	0.040	0.505	model1_6z2wE.pdb.gz
8	7dxjA	0.33	6.83	0.031	0.487	model1_7dxjA.pdb.gz
9	3javA	0.32	7.28	0.033	0.502	model1_3javA.pdb.gz
10	6bcuA	0.32	7.15	0.058	0.491	model1_6bcuA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0005523	0.97	tropomyosin binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044699	0.99	single-organism process
GO:0009987	0.98	cellular process
GO:0044767	0.97	single-organism developmental process
GO:0044763	0.96	single-organism cellular process
GO:0007015	0.96	actin filament organization
GO:0031032	0.94	actomyosin structure organization
GO:0030239	0.93	myofibril assembly
GO:0032501	0.92	multicellular organismal process
GO:0006936	0.91	muscle contraction

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044424	1.00	intracellular part
GO:0044444	0.99	cytoplasmic part
GO:0044422	0.94	organelle part
GO:0044449	0.93	contractile fiber part
GO:0044446	0.91	intracellular organelle part
GO:0044430	0.89	cytoskeletal part
GO:0005865	0.87	striated muscle thin filament

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	3b8eC	0.257	7.80	0.029	0.423	3.6.3.9	NA
2	0.060	2x58A	0.268	7.79	0.062	0.452	5.3.3.8 4.2.1.17 1.1.1.35	NA
3	0.060	1t3tA	0.273	7.23	0.022	0.420	6.3.5.3	NA
4	0.060	1zcjA	0.190	7.45	0.047	0.307	1.1.1.35	NA
5	0.060	2fhbA	0.230	7.24	0.044	0.364	3.2.1.41	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.01	2easA	0.276	7.13	0.031	0.421	0.15	CZA	complex1.pdb.gz	260,261,293,294,295
2	0.01	2c3oB	0.275	7.48	0.019	0.438	0.15	SF4	complex2.pdb.gz	262,265,289,290
3	0.01	1a4y3	0.288	4.05	0.062	0.334	0.11	III	complex3.pdb.gz	261,263,288,290
4	0.01	3ar9A	0.254	7.37	0.029	0.398	0.23	TM1	complex4.pdb.gz	260,262,294
5	0.01	1ofdA	0.288	7.91	0.046	0.482	0.10	FMN	complex5.pdb.gz	267,270,320
6	0.01	2bex0	0.287	4.02	0.063	0.332	0.17	III	complex6.pdb.gz	287,315,344
7	0.01	2c3oA	0.277	7.47	0.017	0.439	0.28	SF4	complex7.pdb.gz	261,262,291,292,293

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
