D-I-TASSER Q13061

D-I-TASSER results for Q13061

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q13061
Protein Name: Triadin
Gene Name: TRDN

Input Sequence in FASTA format

>Q13061 (729 residues)
MTEITAEGNASTTTTVIDSKNGSVPKSPGKVLKRTVTEDIVTTFSSPAAWLLVIALIITW
SAVAIVMFDLVDYKNFSASSIAKIGSDPLKLVRDAMEETTDWIYGFFSLLSDIISSEDEE
DDDGDEDTDKGEIDEPPLRKKEIHKDKTEKQEKPERKIQTKVTHKEKEKGKEKVREKEKP
EKKATHKEKIEKKEKPETKTLAKEQKKAKTAEKSEEKTKKEVKGGKQEKVKQTAAKVKEV
QKTPSKPKEKEDKEKAAVSKHEQKDQYAFCRYMIDIFVHGDLKPGQSPAIPPPLPTEQAS
RPTPASPALEEKEGEKKKAEKKVTSETKKKEKEDIKKKSEKETAIDVEKKEPGKASETKQ
GTVKIAAQAAAKKDEKKEDSKKTKKPAEVEQPKGKKQEKKEKHVEPAKSPKKEHSVPSDK
QVKAKTERAKEEIGAVSIKKAVPGKKEEKTTKTVEQEIRKEKSGKTSSILKDKEPIKGKE
EKVPASLKEKEPETKKDEKMSKAGKEVKPKPPQLQGKKEEKPEPQIKKEAKPAISEKVQI
HKQDIVKPEKTVSHGKPEEKVLKQVKAVTIEKTAKPKPTKKAEHREREPPSIKTDKPKPT
PKGTSEVTESGKKKTEISEKESKEKADMKHLREEKVSTRKESLQLHNVTKAEKPARVSKD
VEDVPASKKAKEGTEDVSPTKQKSPISFFQCVYLDGYNGYGFQFPFTPADRPGESSGQAN
SPGQKQQGQ

Predicted Contact and Distance Map Used in D-I-TASSER simulation

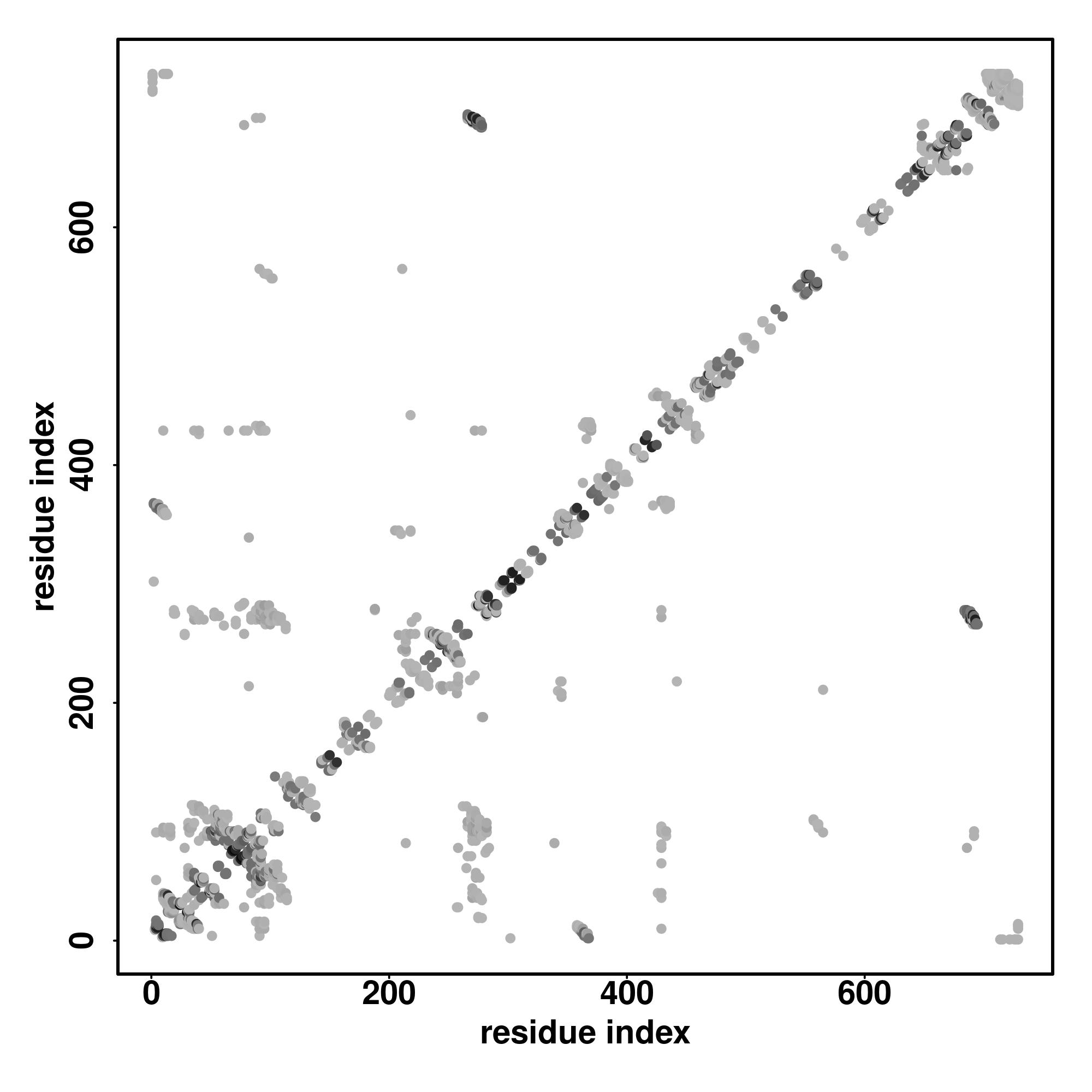

Contact Map

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q13061-D1	1-729	729		MTEITAEGNASTTTTVIDSKNGSVPKSPGKVLKRTVTEDIVTTFSSPAAWLLVIALIITWSAVAIVMFDLVDYKNFSASSIAKIGSDPLKLVRDAMEETTDWIYGFFSLLSDIISSEDEEDDDGDEDTDKGEIDEPPLRKKEIHKDKTEKQEKPERKIQTKVTHKEKEKGKEKVREKEKPEKKATHKEKIEKKEKPETKTLAKEQKKAKTAEKSEEKTKKEVKGGKQEKVKQTAAKVKEVQKTPSKPKEKEDKEKAAVSKHEQKDQYAFCRYMIDIFVHGDLKPGQSPAIPPPLPTEQASRPTPASPALEEKEGEKKKAEKKVTSETKKKEKEDIKKKSEKETAIDVEKKEPGKASETKQGTVKIAAQAAAKKDEKKEDSKKTKKPAEVEQPKGKKQEKKEKHVEPAKSPKKEHSVPSDKQVKAKTERAKEEIGAVSIKKAVPGKKEEKTTKTVEQEIRKEKSGKTSSILKDKEPIKGKEEKVPASLKEKEPETKKDEKMSKAGKEVKPKPPQLQGKKEEKPEPQIKKEAKPAISEKVQIHKQDIVKPEKTVSHGKPEEKVLKQVKAVTIEKTAKPKPTKKAEHREREPPSIKTDKPKPTPKGTSEVTESGKKKTEISEKESKEKADMKHLREEKVSTRKESLQLHNVTKAEKPARVSKDVEDVPASKKAKEGTEDVSPTKQKSPISFFQCVYLDGYNGYGFQFPFTPADRPGESSGQANSPGQKQQGQ

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.4591

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	7abiu	0.88	1.49	0.069	0.900	model1_7abiu.pdb.gz
2	5gm6G	0.87	1.80	0.070	0.897	model1_5gm6G.pdb.gz
3	5lqwQ	0.80	2.41	0.061	0.852	model1_5lqwQ.pdb.gz
4	5ifeC	0.72	4.72	0.072	0.871	model1_5ifeC.pdb.gz
5	5dlqB	0.66	5.68	0.055	0.844	model1_5dlqB.pdb.gz
6	6xjpC	0.65	6.00	0.072	0.855	model1_6xjpC.pdb.gz
7	2x1gF	0.64	5.85	0.058	0.841	model1_2x1gF.pdb.gz
8	6emkA	0.63	6.84	0.063	0.881	model1_6emkA.pdb.gz
9	6zwmA	0.63	5.97	0.076	0.808	model1_6zwmA.pdb.gz
10	2x19B	0.62	6.09	0.050	0.831	model1_2x19B.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0044325	0.76	ion channel binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0065008	0.99	regulation of biological quality
GO:0050794	0.94	regulation of cellular process
GO:0051281	0.92	positive regulation of release of sequestered calcium ion into cytosol
GO:0032501	0.90	multicellular organismal process
GO:0065009	0.84	regulation of molecular function
GO:0010880	0.84	regulation of release of sequestered calcium ion into cytosol by sarcoplasmic reticulum
GO:0009966	0.84	regulation of signal transduction
GO:0086036	0.83	regulation of cardiac muscle cell membrane potential
GO:0060316	0.83	positive regulation of ryanodine-sensitive calcium-release channel activity
GO:0010649	0.83	regulation of cell communication by electrical coupling
GO:0006936	0.83	muscle contraction
GO:0060047	0.72	heart contraction
GO:0044699	0.62	single-organism process
GO:0009987	0.62	cellular process
GO:0044763	0.51	single-organism cellular process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.98	cell part
GO:0044424	0.97	intracellular part
GO:0044444	0.95	cytoplasmic part
GO:0044446	0.94	intracellular organelle part
GO:0044425	0.93	membrane part
GO:0016020	0.93	membrane
GO:0014701	0.92	junctional sarcoplasmic reticulum membrane
GO:0005886	0.82	plasma membrane
GO:0043226	0.54	organelle
GO:0043229	0.52	intracellular organelle
GO:0043227	0.51	membrane-bounded organelle

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1hn0A	0.313	8.04	0.029	0.492	4.2.2.20	NA
2	0.060	3h09B	0.337	8.22	0.037	0.543	3.4.21.72	NA
3	0.060	3hkzJ	0.306	8.07	0.041	0.477	2.7.7.6	NA
4	0.060	2dqmA	0.301	8.13	0.057	0.479	3.4.11.2	NA
5	0.060	1fo4A	0.353	8.09	0.031	0.561	1.17.1.4	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

No Binding sites was predicted

Click to view	Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
