D-I-TASSER results for Q13445

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q13445
Protein Name: Transmembrane emp24 domain-containing protein 1
Gene Name: TMED1

Input Sequence in FASTA format

>Q13445 (227 residues)
MMAAGAALALALWLLMPPVEVGGAGPPPIQDGEFTFLLPAGRKQCFYQSAPANASLETEY
QVIGGAGLDVDFTLESPQGVLLVSESRKADGVHTVEPTEAGDYKLCFDNSFSTISEKLVF
FELIFDSLQDDEEVEGWAEAVEPEEMLDVKMEDIKESIETMRTRLERSIQMLTLLRAFEA
RDRNLQEGNLERVNFWSAVNVAVLLLVAVLQVCTLKRFFQDKRPVPT

Predicted Contact and Distance Map Used in D-I-TASSER simulation

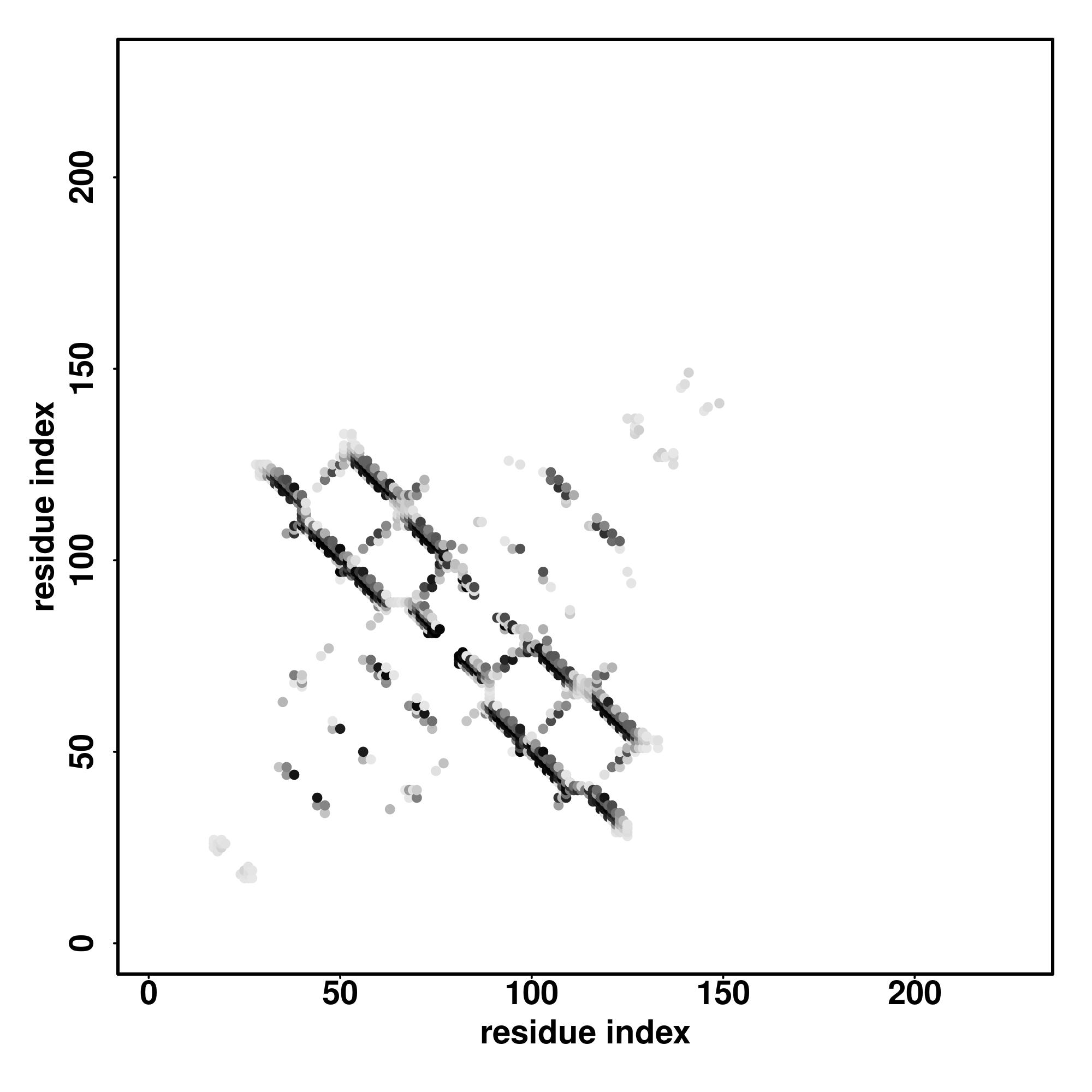

Contact Map

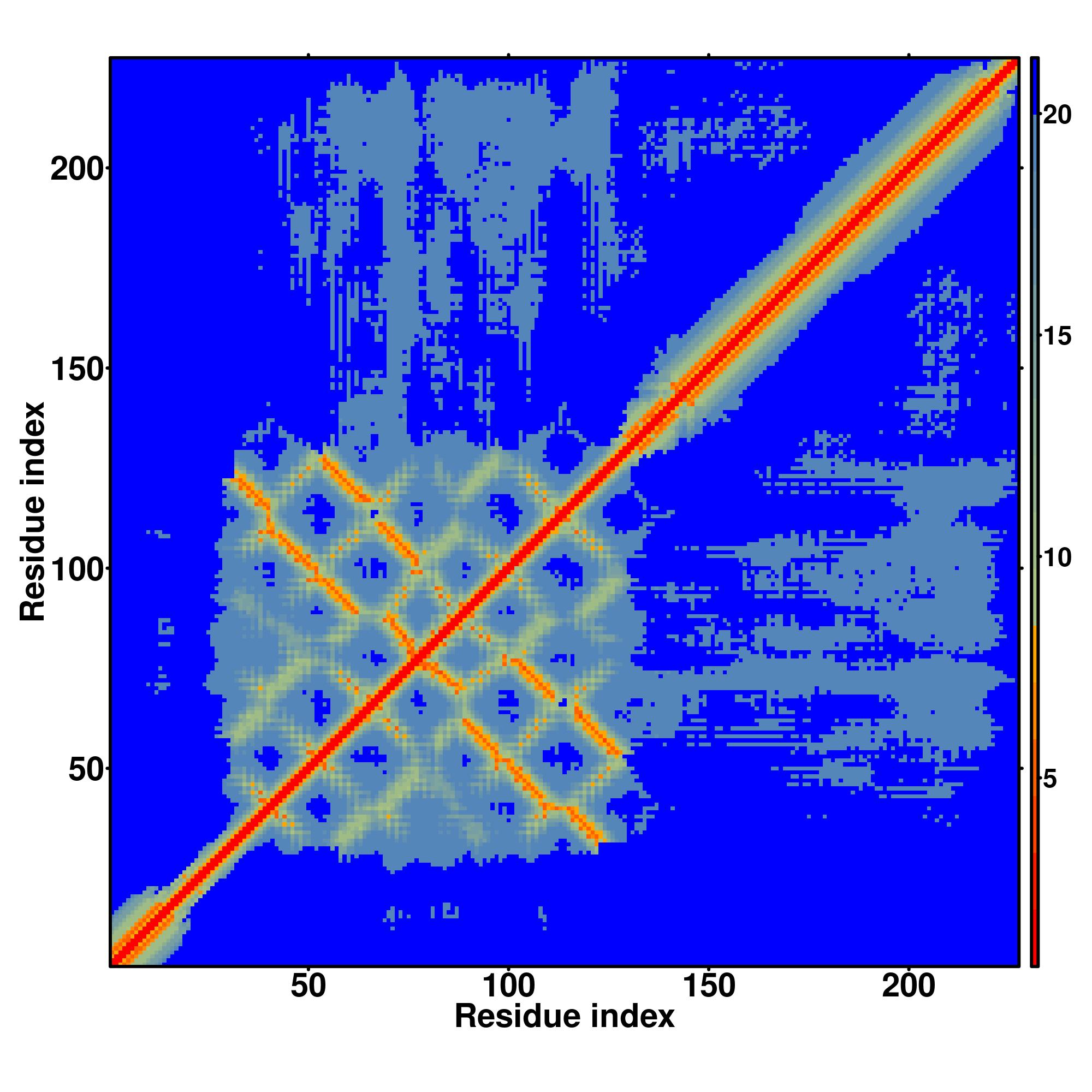

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q13445-D1	1-140	140		MMAAGAALALALWLLMPPVEVGGAGPPPIQDGEFTFLLPAGRKQCFYQSAPANASLETEYQVIGGAGLDVDFTLESPQGVLLVSESRKADGVHTVEPTEAGDYKLCFDNSFSTISEKLVFFELIFDSLQDDEEVEGWAEA
2	Q13445-D2	141-227	87		VEPEEMLDVKMEDIKESIETMRTRLERSIQMLTLLRAFEARDRNLQEGNLERVNFWSAVNVAVLLLVAVLQVCTLKRFFQDKRPVPT

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.67

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	7bjpA	0.52	4.97	0.063	0.766	model1_7bjpA.pdb.gz
2	3m8lA	0.51	5.37	0.071	0.780	model1_3m8lA.pdb.gz
3	6crjB	0.50	4.39	0.043	0.700	model1_6crjB.pdb.gz
4	2gh8A	0.50	5.35	0.076	0.771	model1_2gh8A.pdb.gz
5	3zueA	0.49	5.17	0.055	0.758	model1_3zueA.pdb.gz
6	6ab5A	0.49	4.42	0.063	0.692	model1_6ab5A.pdb.gz
7	6h2bA	0.48	4.43	0.041	0.687	model1_6h2bA.pdb.gz
8	6ouuA	0.48	4.87	0.051	0.709	model1_6ouuA.pdb.gz
9	6ou9B	0.48	5.40	0.036	0.736	model1_6ou9B.pdb.gz
10	6v4aA	0.47	4.45	0.066	0.652	model1_6v4aA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0005215	0.42	transporter activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.73	cellular process
GO:0006810	0.67	transport
GO:0065007	0.64	biological regulation
GO:0044699	0.63	single-organism process
GO:0050789	0.60	regulation of biological process
GO:0016192	0.50	vesicle-mediated transport

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.97	cell part
GO:0044424	0.92	intracellular part
GO:0044444	0.88	cytoplasmic part
GO:0043227	0.88	membrane-bounded organelle
GO:0043229	0.85	intracellular organelle
GO:0043231	0.84	intracellular membrane-bounded organelle
GO:0044425	0.58	membrane part
GO:0044422	0.55	organelle part
GO:0005793	0.55	endoplasmic reticulum-Golgi intermediate compartment
GO:0044446	0.54	intracellular organelle part
GO:0005783	0.52	endoplasmic reticulum
GO:0016020	0.50	membrane

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	2fonB	0.437	5.21	0.051	0.674	1.3.3.6	NA
2	0.060	3mddA	0.400	5.49	0.049	0.630	1.3.99.3	122
3	0.060	1z0hB	0.325	4.55	0.035	0.480	3.4.24.69	NA
4	0.060	1jqiA	0.434	5.13	0.047	0.665	1.3.99.2	NA
5	0.060	3g61A	0.439	4.88	0.072	0.674	3.6.3.44	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.09	3d9dA	0.450	5.12	0.091	0.692	0.14	FAD	complex1.pdb.gz	72,74,75,79,84
2	0.01	3u33D	0.430	5.38	0.051	0.678	0.18	FAD	complex2.pdb.gz	75,78,82
3	0.01	3d26A	0.336	5.38	0.043	0.537	0.40	UUU	complex3.pdb.gz	74,76,77
4	0.01	2fonC	0.442	5.16	0.053	0.683	0.10	FAD	complex4.pdb.gz	76,77,78,102
5	0.01	2c0uA	0.454	5.18	0.104	0.705	0.11	UUU	complex5.pdb.gz	6,7,10
6	0.01	2vu9A	0.318	4.69	0.031	0.476	0.20	UUU	complex6.pdb.gz	47,81,82,102
7	0.01	3mkhA	0.437	5.34	0.038	0.687	0.12	FAD	complex7.pdb.gz	14,75,79,80
8	0.01	3egdB	0.430	5.63	0.069	0.740	0.25	III	complex8.pdb.gz	38,42,44,60
9	0.01	2fonB	0.437	5.21	0.051	0.674	0.17	FAD	complex9.pdb.gz	98,99,101
10	0.01	3n51A	0.468	5.29	0.056	0.745	0.24	BK3	complex10.pdb.gz	58,59,82,91,95,96

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
