D-I-TASSER Q14202

D-I-TASSER results for Q14202

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q14202
Protein Name: Zinc finger MYM-type protein 3
Gene Name: ZMYM3

Input Sequence in FASTA format

>Q14202 (1370 residues)
MDPSDFPSPFDPLTLPEKPLAGDLPVDMEFGEDLLESQTAPTRGWAPPGPSPSSGALDLL
DTPAGLEKDPGVLDGATELLGLGGLLYKAPSPPEVDHGPEGTLAWDAGDQTLEPGPGGQT
PEVVPPDPGAGANSCSPEGLLEPLAPDSPITLQSPHIEEEETTSIATARRGSPGQEEELP
QGQPQSPNAPPSPSVGETLGDGINSSQTKPGGSSPPAHPSLPGDGLTAKASEKPPERKRS
ERVRRAEPPKPEVVDSTESIPVSDEDSDAMVDDPNDEDFVPFRPRRSPRMSLRSSVSQRA
GRSAVGTKMTCAHCRTPLQKGQTAYQRKGLPQLFCSSSCLTTFSKKPSGKKTCTFCKKEI
WNTKDSVVAQTGSGGSFHEFCTSVCLSLYEAQQQRPIPQSGDPADATRCSICQKTGEVLH
EVSNGSVVHRLCSDSCFSKFRANKGLKTNCCDQCGAYIYTKTGSPGPELLFHEGQQKRFC
NTTCLGAYKKKNTRVYPCVWCKTLCKNFEMLSHVDRNGKTSLFCSLCCTTSYKVKQAGLT
GPPRPCSFCRRSLSDPCYYNKVDRTVYQFCSPSCWTKFQRTSPEGGIHLSCHYCHSLFSG
KPEVLDWQDQVFQFCCRDCCEDFKRLRGVVSQCEHCRQEKLLHEKLRFSGVEKSFCSEGC
VLLYKQDFTKKLGLCCITCTYCSQTCQRGVTEQLDGSTWDFCSEDCKSKYLLWYCKAARC
HACKRQGKLLETIHWRGQIRHFCNQQCLLRFYSQQNQPNLDTQSGPESLLNSQSPESKPQ
TPSQTKVENSNTVRTPEENGNLGKIPVKTRSAPTAPTPPPPPPPATPRKNKAAMCKPLMQ
NRGVSCKVEMKSKGSQTEEWKPQVIVLPIPVPIFVPVPMHLYCQKVPVPFSMPIPVPVPM
FLPTTLESTDKIVETIEELKVKIPSNPLEADILAMAEMIAEAEELDKASSDLCDLVSNQS
AEGLLEDCDLFGPARDDVLAMAVKMANVLDEPGQDLEADFPKNPLDINPSVDFLFDCGLV
GPEDVSTEQDLPRTMRKGQKRLVLSESCSRDSMSSQPSCTGLNYSYGVNAWKCWVQSKYA
NGETSKGDELRFGPKPMRIKEDILACSAAELNYGLAQFVREITRPNGERYEPDSIYYLCL
GIQQYLLENNRMVNIFTDLYYLTFVQELNKSLSTWQPTLLPNNTVFSRVEEEHLWECKQL
GVYSPFVLLNTLMFFNTKFFGLQTAEEHMQLSFTNVVRQSRKCTTPRGTTKVVSIRYYAP
VRQRKGRDTGPGKRKREDEAPILEQRENRMNPLRCPVKFYEFYLSKCPESLRTRNDVFYL
QPERSCIAESPLWYSVIPMDRSMLESMLNRILAVREIYEELGRPGEEDLD

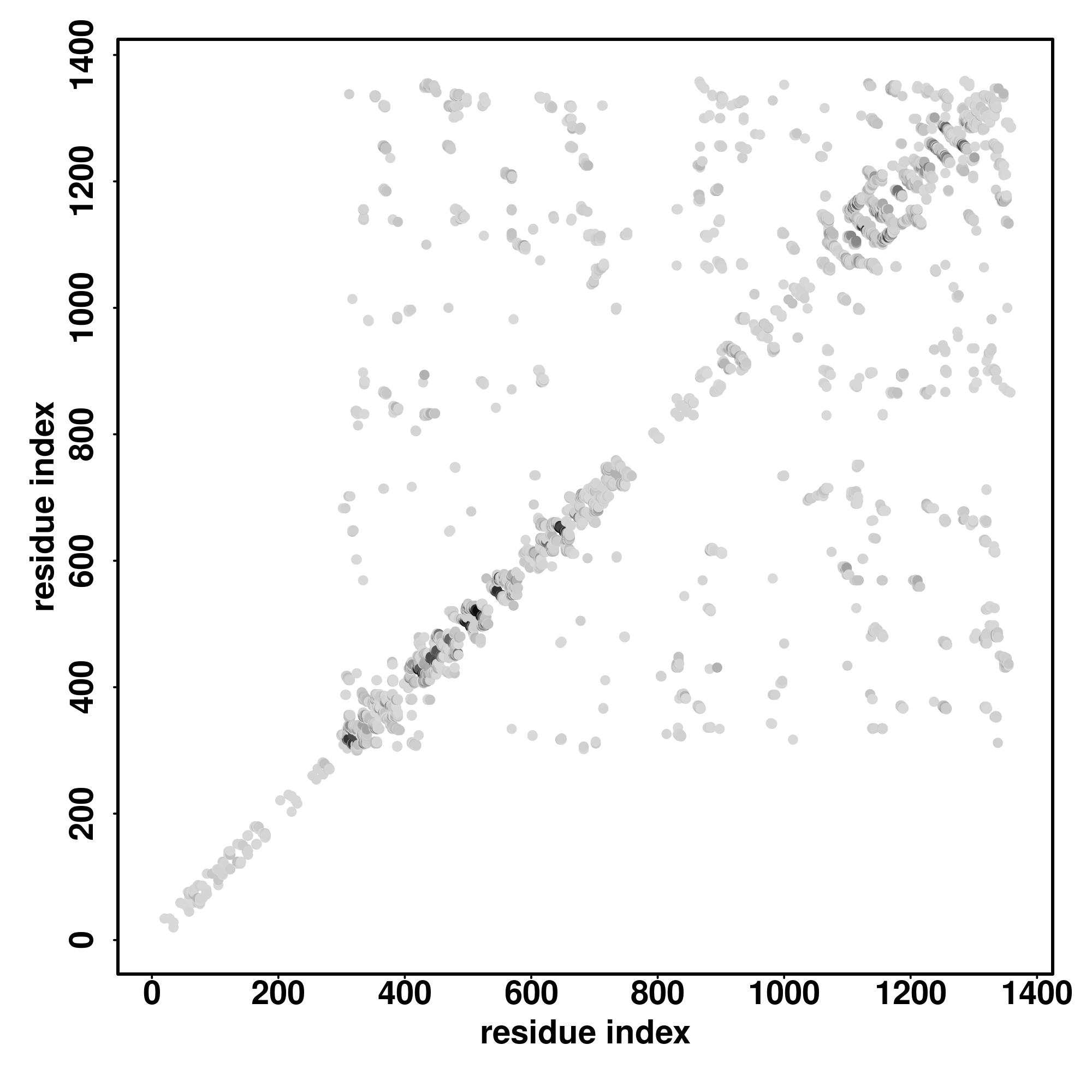

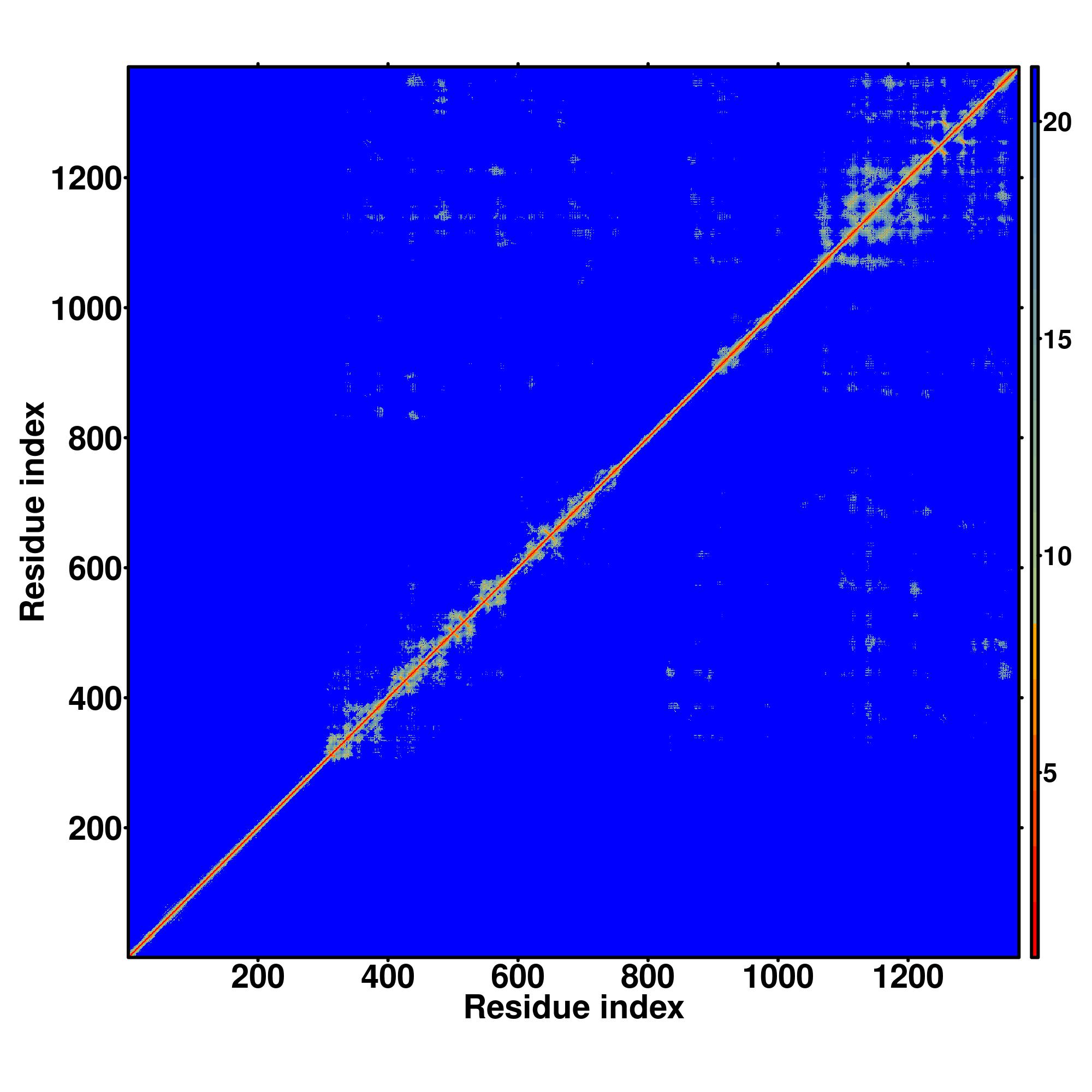

Predicted Contact and Distance Map Used in D-I-TASSER simulation

Contact Map

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q14202-D1	1-356	356		MDPSDFPSPFDPLTLPEKPLAGDLPVDMEFGEDLLESQTAPTRGWAPPGPSPSSGALDLLDTPAGLEKDPGVLDGATELLGLGGLLYKAPSPPEVDHGPEGTLAWDAGDQTLEPGPGGQTPEVVPPDPGAGANSCSPEGLLEPLAPDSPITLQSPHIEEEETTSIATARRGSPGQEEELPQGQPQSPNAPPSPSVGETLGDGINSSQTKPGGSSPPAHPSLPGDGLTAKASEKPPERKRSERVRRAEPPKPEVVDSTESIPVSDEDSDAMVDDPNDEDFVPFRPRRSPRMSLRSSVSQRAGRSAVGTKMTCAHCRTPLQKGQTAYQRKGLPQLFCSSSCLTTFSKKPSGKKTCTFC
2	Q14202-D2	357-709	353		KKEIWNTKDSVVAQTGSGGSFHEFCTSVCLSLYEAQQQRPIPQSGDPADATRCSICQKTGEVLHEVSNGSVVHRLCSDSCFSKFRANKGLKTNCCDQCGAYIYTKTGSPGPELLFHEGQQKRFCNTTCLGAYKKKNTRVYPCVWCKTLCKNFEMLSHVDRNGKTSLFCSLCCTTSYKVKQAGLTGPPRPCSFCRRSLSDPCYYNKVDRTVYQFCSPSCWTKFQRTSPEGGIHLSCHYCHSLFSGKPEVLDWQDQVFQFCCRDCCEDFKRLRGVVSQCEHCRQEKLLHEKLRFSGVEKSFCSEGCVLLYKQDFTKKLGLCCITCTYCSQTCQRGVTEQLDGSTWDFCSEDCKSK
3	Q14202-D3	710-753	44		YLLWYCKAARCHACKRQGKLLETIHWRGQIRHFCNQQCLLRFYS
4	Q14202-D4	754-974,1252-1370	340		QQNQPNLDTQSGPESLLNSQSPESKPQTPSQTKVENSNTVRTPEENGNLGKIPVKTRSAPTAPTPPPPPPPATPRKNKAAMCKPLMQNRGVSCKVEMKSKGSQTEEWKPQVIVLPIPVPIFVPVPMHLYCQKVPVPFSMPIPVPVPMFLPTTLESTDKIVETIEELKVKIPSNPLEADILAMAEMIAEAEELDKASSDLCDLVSNQSAEGLLEDCDLFGPAVVSIRYYAPVRQRKGRDTGPGKRKREDEAPILEQRENRMNPLRCPVKFYEFYLSKCPESLRTRNDVFYLQPERSCIAESPLWYSVIPMDRSMLESMLNRILAVREIYEELGRPGEEDLD
5	Q14202-D5	975-1123	149		RDDVLAMAVKMANVLDEPGQDLEADFPKNPLDINPSVDFLFDCGLVGPEDVSTEQDLPRTMRKGQKRLVLSESCSRDSMSSQPSCTGLNYSYGVNAWKCWVQSKYANGETSKGDELRFGPKPMRIKEDILACSAAELNYGLAQFVREIT
6	Q14202-D6	1124-1137,1175-1251	91		RPNGERYEPDSIYYWQPTLLPNNTVFSRVEEEHLWECKQLGVYSPFVLLNTLMFFNTKFFGLQTAEEHMQLSFTNVVRQSRKCTTPRGTTK
7	Q14202-D7	1138-1174	37		LCLGIQQYLLENNRMVNIFTDLYYLTFVQELNKSLST

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.56

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	7alpU	0.27	9.35	0.020	0.399	model1_7alpU.pdb.gz
2	7lhtA	0.26	10.47	0.028	0.423	model1_7lhtA.pdb.gz
3	6m6gB	0.26	9.86	0.037	0.402	model1_6m6gB.pdb.gz
4	6rw8A	0.26	9.83	0.045	0.396	model1_6rw8A.pdb.gz
5	6w2dJ	0.25	9.93	0.039	0.397	model1_6w2dJ.pdb.gz
6	5m59A	0.25	10.05	0.032	0.398	model1_5m59A.pdb.gz
7	7dxjA	0.25	9.58	0.028	0.377	model1_7dxjA.pdb.gz
8	4o9xA	0.25	10.52	0.042	0.409	model1_4o9xA.pdb.gz
9	6b43A	0.25	10.01	0.035	0.387	model1_6b43A.pdb.gz
10	5vkuL	0.25	9.98	0.038	0.388	model1_5vkuL.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0003676	0.97	nucleic acid binding
GO:0003677	0.96	DNA binding
GO:0000981	0.96	RNA polymerase II transcription factor activity, sequence-specific DNA binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0050794	0.99	regulation of cellular process
GO:0044699	0.99	single-organism process
GO:0009987	0.99	cellular process
GO:0006996	0.98	organelle organization
GO:0048856	0.94	anatomical structure development
GO:0044767	0.94	single-organism developmental process
GO:0032501	0.94	multicellular organismal process
GO:0022604	0.93	regulation of cell morphogenesis
GO:0007275	0.93	multicellular organism development
GO:0007010	0.93	cytoskeleton organization

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044446	1.00	intracellular organelle part
GO:0044428	0.96	nuclear part
GO:0005737	0.96	cytoplasm
GO:0005654	0.95	nucleoplasm

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	3fg3A	0.165	8.60	0.041	0.236	4.2.1.92 1.13.11.40	1069
2	0.060	2vdcA	0.208	10.03	0.038	0.326	1.4.1.13	NA
3	0.060	1w36B	0.191	9.48	0.023	0.288	3.1.11.5	345
4	0.060	2vz8B	0.205	9.79	0.028	0.312	2.3.1.85	NA
5	0.060	2nztA	0.211	8.96	0.027	0.307	2.7.1.1	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Click to view	Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
	1	0.01	2v469	0.036	3.95	0.094	0.039	0.18	III	complex1.pdb.gz	375,376,377

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
