D-I-TASSER Q6ZTQ4-D5

D-I-TASSER results for Q6ZTQ4-D5

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>Q6ZTQ4 (101 residues)
FPLIFDRPSYVFDVSERRPARTRVGQVRATDKDLPQSSLLYSISTGGASLQYPNVFWINP
KTGELQLVTKVDCETTPIYILRIQATNNEDTSSVTVTVNIL

Predicted Secondary Structure

Sequence	20 40 60 80 100 \| \| \| \| \| FPLIFDRPSYVFDVSERRPARTRVGQVRATDKDLPQSSLLYSISTGGASLQYPNVFWINPKTGELQLVTKVDCETTPIYILRIQATNNEDTSSVTVTVNIL
Prediction	CCCCCCCCSSSSSSSCCCCCCCSSSSSSSSCCCCCCCSSSSSSSCCCCCCCCCCSSSSSCCCCSSSSCCCCCCCCCCSSSSSSSSSSCCCCSSSSSSSSSC
Confidence	96975786789999689999939999999839999982899995499994316828992997099986765763476899999999099874899999989
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 \| \| \| \| \| FPLIFDRPSYVFDVSERRPARTRVGQVRATDKDLPQSSLLYSISTGGASLQYPNVFWINPKTGELQLVTKVDCETTPIYILRIQATNNEDTSSVTVTVNIL
Prediction	75644656405040446144413203030334444634030202434457634520403463230303440434536404030303567644304030406
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

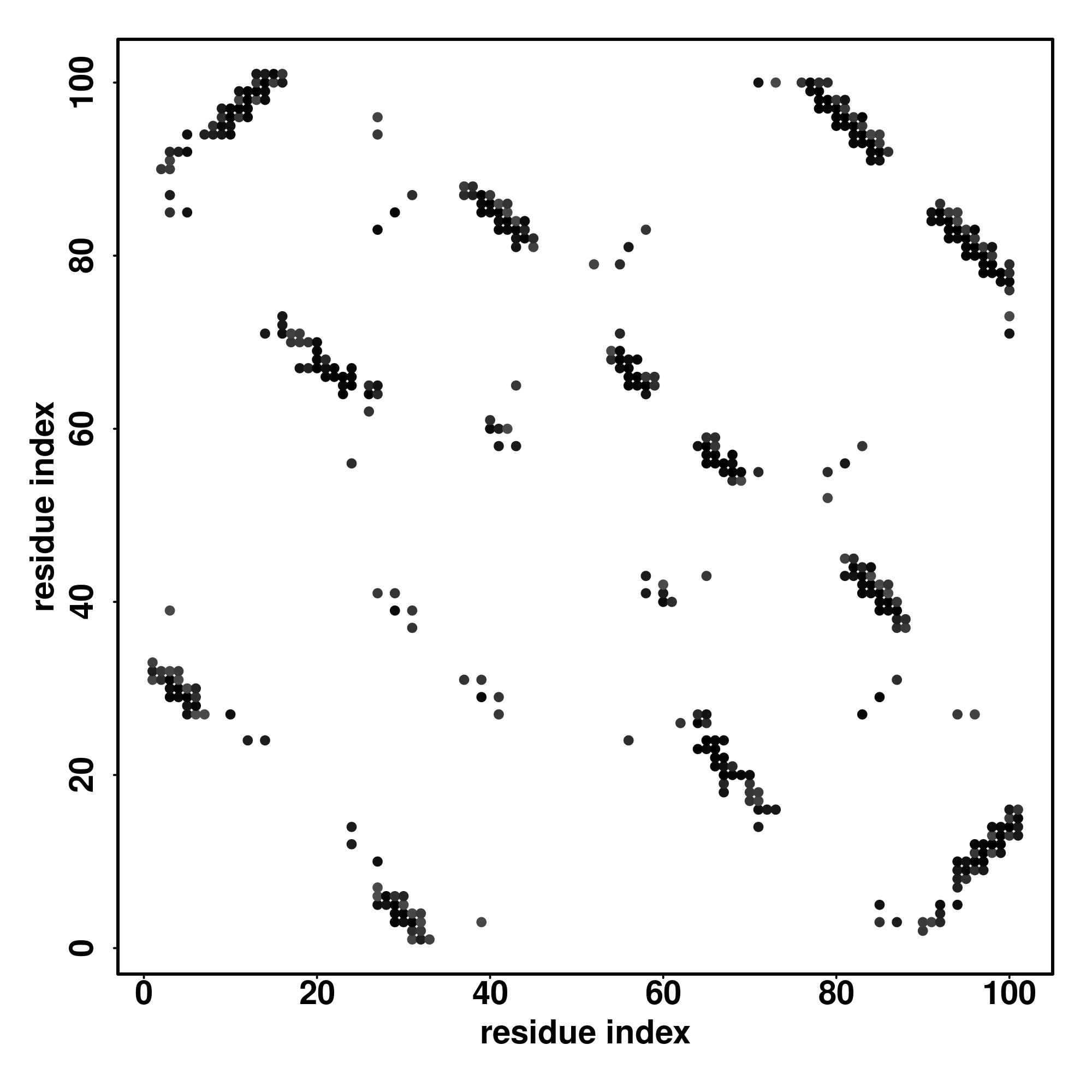

Contact Map

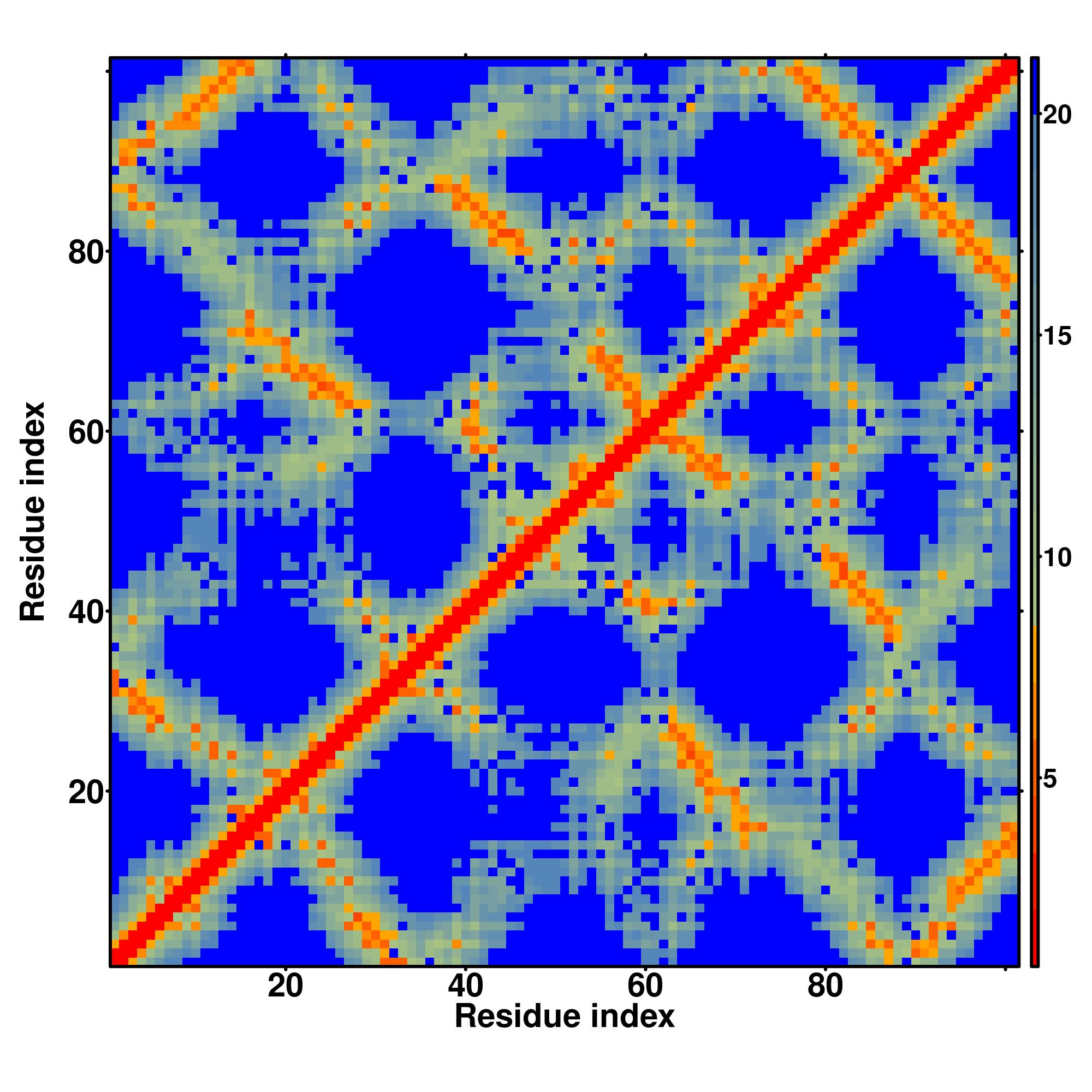

Distance Map

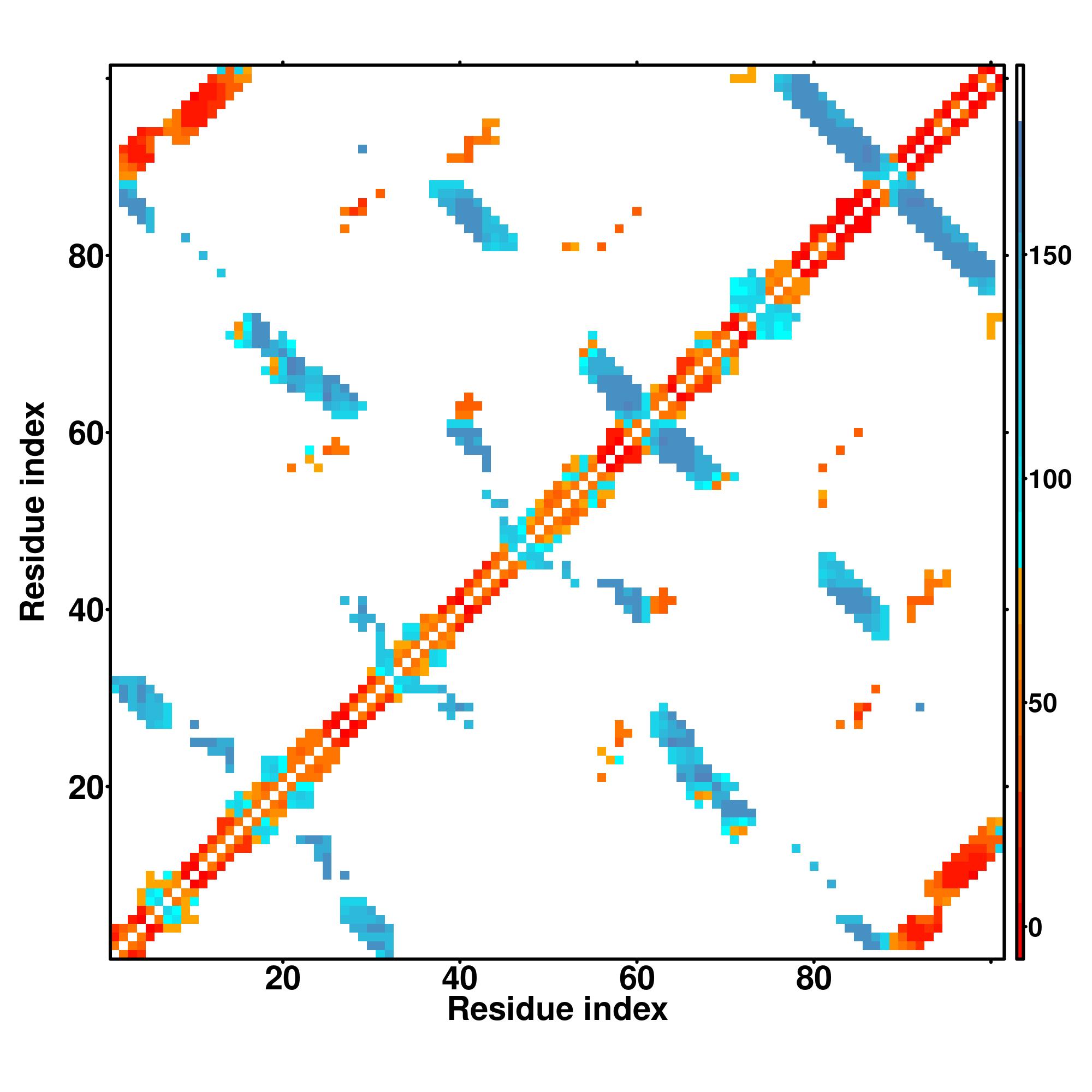

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100

                   |                   |                   |                   |                   |

SS
Seq

CCCCCCCCSSSSSSSCCCCCCCSSSSSSSSCCCCCCCSSSSSSSCCCCCCCCCCSSSSSCCCCSSSSCCCCCCCCCCSSSSSSSSSSCCCCSSSSSSSSSC
FPLIFDRPSYVFDVSERRPARTRVGQVRATDKDLPQSSLLYSISTGGASLQYPNVFWINPKTGELQLVTKVDCETTPIYILRIQATNNEDTSSVTVTVNIL

5t9tA

0.25

7.68

1.50

DEthreader

NAPVFHQASYLVHVAENNPPGTSIAQVSASDPDLGSGLISYSIIASDLEPALSSFVSVNQDSGVVFAQRAFDHEQLRSFQLTLQARDHTLSANVSMRVLVG

5v5xA1

0.23

0.22

6.84

1.73

SPARKS-K

NRPVFSQDVYRVRLPEDLPPGTTVLRLKAMDQDEINAEFTYSFLGVANKA----QFSLDPITGDIVTRQSLDFEEVEQYTIDVEAKDRGLSSQCKVIIEVL

3q2vA

0.26

7.95

0.39

MapAlign

NRPEFTQEVFEGSVAEGAVPGTSVMKVSATDADTYNAAIAYTIVSQDPELPHKNMFTVNRDTGVISVLTSLDRESYPTYTLVVQAADEGLSTTAKAVITVK

4nqqA2

0.30

9.02

0.26

CEthreader

NKPKFTQDTFRGSVLEGVMPGTSVMQVTATDEDDANGVVAYSIHSQEPKEPHDLMFTIHKSTGTISVISSLDREKVPEYRLTVQATDMDSTTTAEAVVQIL

4zi9A2

0.27

8.21

1.61

MUSTER

NPPAFTKAEYHVSVPENVPLGTRLLKVNATDPDEGANGRVTYSFHKVDHS-VVRKFQLDAYTGELSNKEPLDFEEYKVYPMEIQAQDGAGLARAKVLVTVL

5v5xA1

0.23

0.22

6.84

0.79

HHsearch

NRPVFSQDVYRVRLPEDLPPGTTVLRLKAMDQDEGNAEFTYSFLGVAN----KAQFSLDPITGDIVTRQSLDFEEVEQYTIDVEAKDRGSSSQCKVIIEVL

4zi9A2

0.27

8.21

1.84

FFAS-3D

NPPAFTKAEYHVSVPENVPLGTRLLKVNATDPDEGANGRVTYSFHKVDHS-VVRKFQLDAYTGELSNKEPLDFEEYKVYPMEIQAQDGAGMARAKVLVTVL

6e6bA3

0.24

7.42

0.48

EigenThreader

NAPVFTKVSYLVHVAENNPPGASIAQVSASDPDLANGQVTYYIISDLEPESLWSYVTINAQSGVLFAQRAFDHEQLRSFQLTLQARDHGLSANVSMRLLVG

5k8rA

0.27

8.20

1.51

CNFpred

NPPVFTQDMYRVNVAENLPAGSSVLKVMAIDMDEGNAEIIYAFINIGK--EVRQLFKLDSKTGELTTIGELDFEERDSYTIGVEAKDGHHTAYCKVQIDIS

5t9tA5

0.25

7.68

1.50

DEthreader

NAPVFHQASYLVHVAENNPPGTSIAQVSASDPDLGSGLISYSIIASDLEPALSSFVSVNQDSGVVFAQRAFDHEQLRSFQLTLQARDHTLSANVSMRVLVG

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.924

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	6vfvA1	0.94	1.12	0.277	1.000	model1_6vfvA1.pdb.gz
2	5t9tA5	0.94	0.93	0.250	0.990	model1_5t9tA5.pdb.gz
3	5v5xA	0.94	1.06	0.218	1.000	model1_5v5xA.pdb.gz
4	6vg1A2	0.94	1.18	0.238	1.000	model1_6vg1A2.pdb.gz
5	5k8rA3	0.93	1.03	0.263	0.980	model1_5k8rA3.pdb.gz
6	4zplA	0.93	0.92	0.283	0.980	model1_4zplA.pdb.gz
7	6e6bA	0.93	1.03	0.240	0.990	model1_6e6bA.pdb.gz
8	5sznA3	0.93	1.29	0.253	0.980	model1_5sznA3.pdb.gz
9	5szqA2	0.93	1.08	0.240	0.990	model1_5szqA2.pdb.gz
10	5dzvA	0.93	1.23	0.250	0.990	model1_5dzvA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0046872	0.80	metal ion binding
GO:0005509	0.73	calcium ion binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044699	0.92	single-organism process
GO:0007155	0.85	cell adhesion
GO:0098609	0.82	cell-cell adhesion
GO:0009987	0.81	cellular process
GO:0098742	0.77	cell-cell adhesion via plasma-membrane adhesion molecules
GO:0044763	0.77	single-organism cellular process
GO:0032502	0.73	developmental process
GO:0007156	0.70	homophilic cell adhesion via plasma membrane adhesion molecules
GO:0044767	0.67	single-organism developmental process
GO:0065007	0.61	biological regulation
GO:0016043	0.60	cellular component organization
GO:0032501	0.53	multicellular organismal process
GO:0009653	0.53	anatomical structure morphogenesis
GO:0048869	0.51	cellular developmental process
GO:0044707	0.50	single-multicellular organism process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.93	cell part
GO:0016020	0.64	membrane
GO:0044424	0.50	intracellular part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.083	2dleA	0.601	3.09	0.102	0.871	3.1.3.48	NA
2	0.072	2wwmD	0.632	2.99	0.169	0.881	2.7.11.1	NA
3	0.067	2rq8A	0.584	2.85	0.098	0.802	2.7.11.1	NA
4	0.067	2eo1A	0.603	2.91	0.048	0.832	2.7.11.1	NA
5	0.066	2dlhA	0.582	3.24	0.090	0.871	3.1.3.48	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.07	1zvn0	0.725	2.33	0.228	0.861	0.84	III	complex1.pdb.gz	12,13,15,22,23,25,26,27,28,29,83,84,85,94,96
2	0.05	1ncg0	0.761	2.37	0.204	0.901	1.02	III	complex2.pdb.gz	25,26,27,28,29,30,41,83,84,85,94
3	0.04	1usqF	0.558	3.13	0.082	0.832	0.95	CLM	complex3.pdb.gz	23,25,26,64,65,66

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
