D-I-TASSER Q8N3P4

D-I-TASSER results for Q8N3P4

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q8N3P4
Protein Name: Vacuolar protein sorting-associated protein 8 homolog
Gene Name: VPS8

Input Sequence in FASTA format

>Q8N3P4 (1428 residues)
MENEPDHENVEQSLCAKTSEEELNKSFNLEASLSKFSYIDMDKELEFKNDLIDDKEFDIP
QVDTPPTLESILNETDDEDESFILEDPTLLNIDTIDSHSYDTSSVASSDSGDRTNLKRKK
KLPDSFSLHGSVMRHSLLKGISAQIVSAADKVDAGLPTAIAVSSLIAVGTSHGLALIFGK
DQNQALRLCLGSTSVGGQYGAISALSINNDCSRLLCGFAKGQITMWDLASGKLLRSITDA
HPPGTAILHIKFTDDPTLAICNDSGGSVFELTFKRVMGVRTCESRCLFSGSKGEVCCIEP
LHSKPELKDHPITQFSLLAMASLTKILVIGLKPSLKVWMTFPYGRMDPSSVPLLAWHFVA
VQNYVNPMLAFCRGDVVHFLLVKRDESGAIHVTKQKHLHLYYDLINFTWINSRTVVLLDS
VEKLHVIDRQTQEELETVEISEVQLVYNSSHFKSLATGGNVSQALALVGEKACYQSISSY
GGQIFYLGTKSVYVMMLRSWRERVDHLLKQDCLTEALALAWSFHEGKAKAVVGLSGDASK
RKAIVADRMVEILFHYADRALKKCPDQGKIQVMEQHFQDMVPVIVDYCLLLQRKDLLFSQ
MYDKLSENSVAKGVFLECLEPYILSDKLVGITPQVMKDLIVHFQDKKLMENVEALIVHMD
ITSLDIQQVVLMCWENRLYDAMIYVYNRGMNEFISPMEKLFRVIAPPLNAGKTLTDEQVV
MGNKLLVYISCCLAGRAYPLGDIPEDLVPLVKNQVFEFLIRLHSAEASPEEEIYPYIRTL
LHFDTREFLNVLALTFEDFKNDKQAVEYQQRIVDILLKVMVENSDFTPSQVGCLFTFLAR
QLAKPDNTLFVNRTLFDQVLEFLCSPDDDSRHSERQQVLLELLQAGGIVQFEESRLIRMA
EKAEFYQICEFMYEREHQYDKIIDCYLRDPLREEEVFNYIHNILSIPGHSAEEKQSVWQK
AMDHIEELVSLKPCKAAELVATHFSGHIETVIKKLQNQVLLFKFLRSLLDPREGIHVNQE
LLQISPCITEQFIELLCQFNPTQVIETLQVLECYRLEETIQITQKYQLHEVTAYLLEKKG
DIHGAFLIMLERLQSKLQEVTHQGENTKEDPSLKDVEDTMVETIALCQRNSHNLNQQQRE
ALWFPLLEAMMAPQKLSSSAIPHLHSEALKSLTMQVLNSMAAFIALPSILQRILQDPVYG
KGKLGEIQGLILGMLDTFNYEQTLLETTTSLLNQDLHWSLCNLRASVTRGLNPKQDYCSI
CLQQYKRRQEMADEIIVFSCGHLYHSFCLQNKECTVEFEGQTRWTCYKCSSSNKVGKLSE
NSSEIKKGRITPSQVKMSPSYHQSKGDPTAKKGTSEPVLDPQQIQAFDQLCRLYRGSSRL
ALLTELSQNRSSESYRPFSGSQSAPAFNSIFQNENFQLQLIPPPVTED

Predicted Contact and Distance Map Used in D-I-TASSER simulation

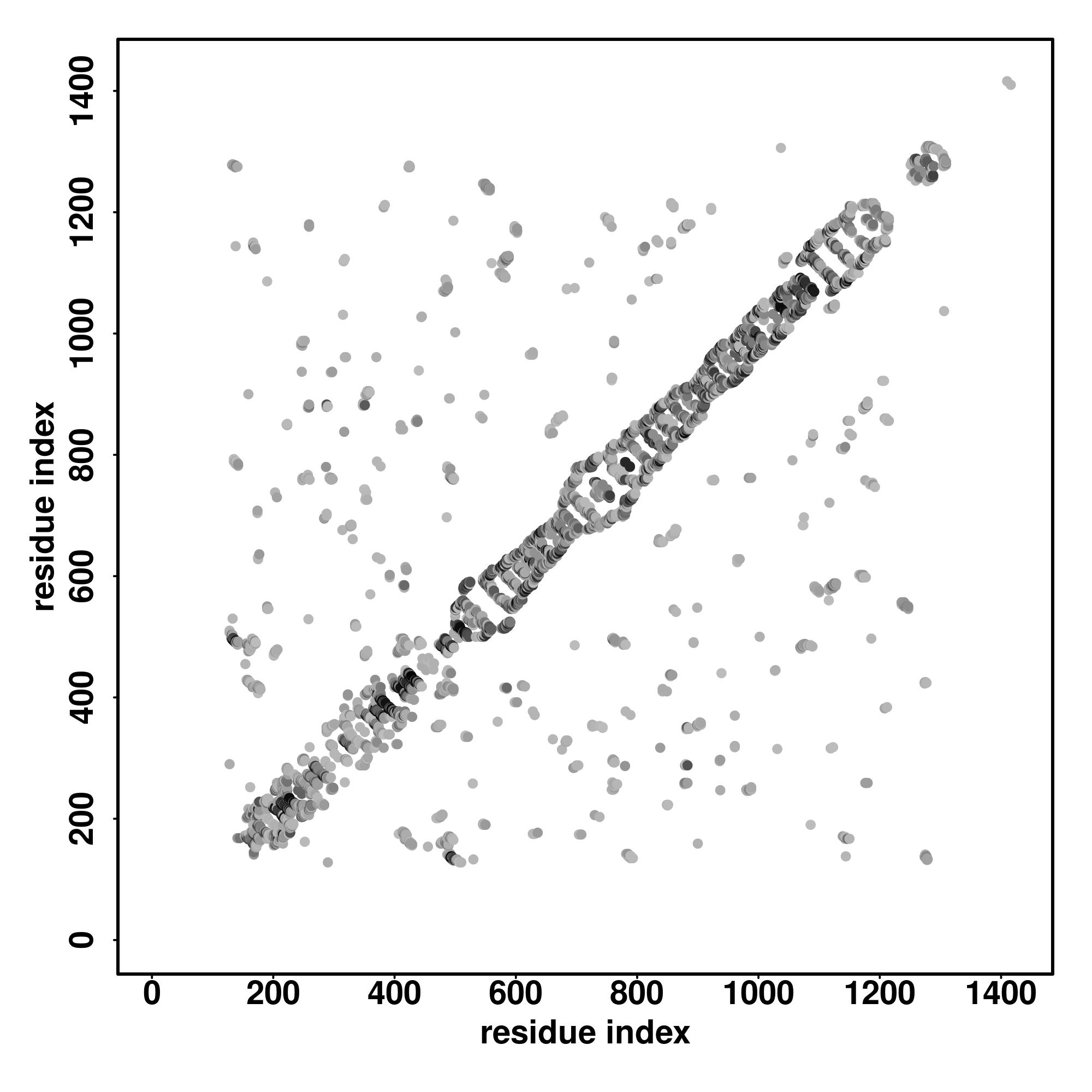

Contact Map

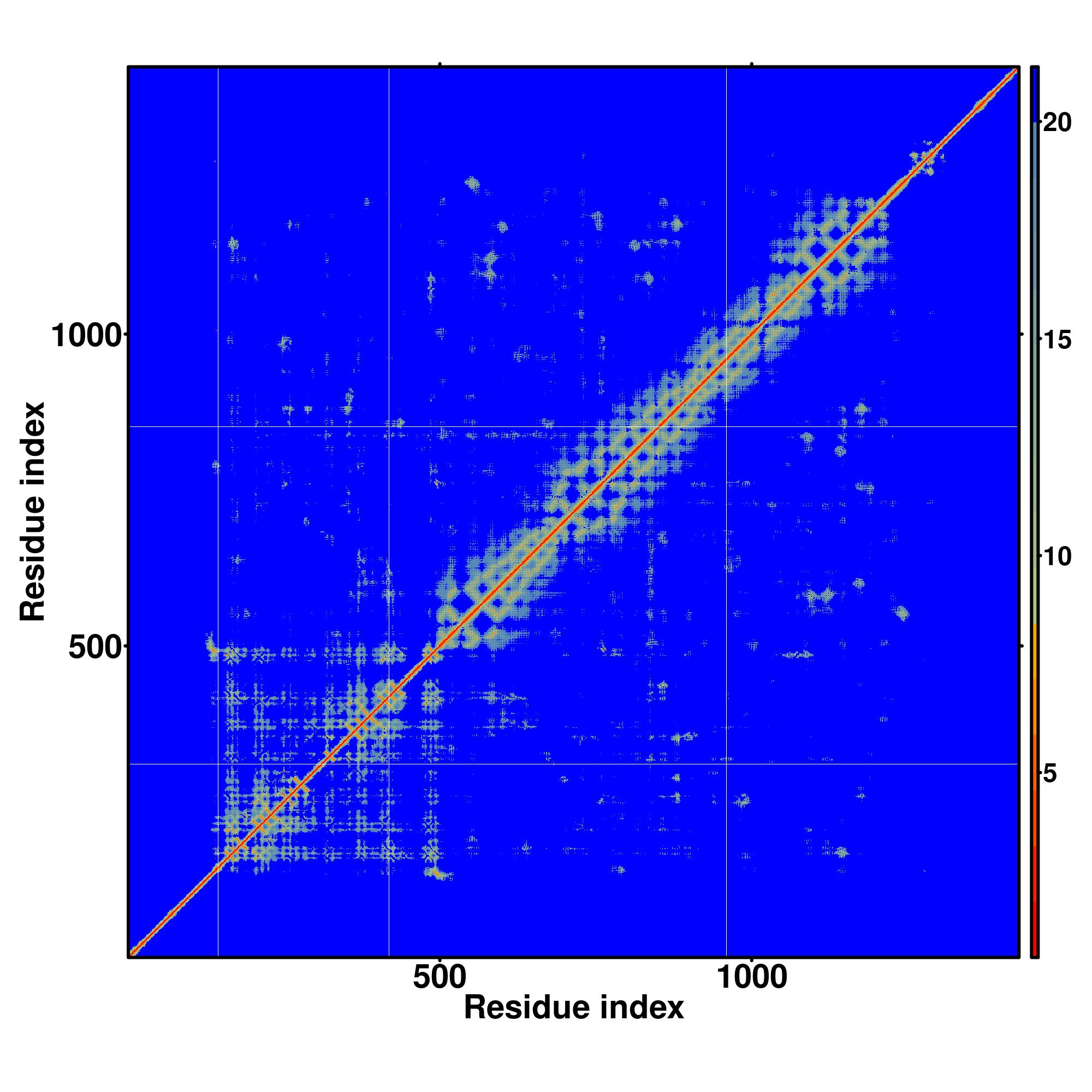

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q8N3P4-D1	1-46,64-148,273-321,1235-1428	374		MENEPDHENVEQSLCAKTSEEELNKSFNLEASLSKFSYIDMDKELETPPTLESILNETDDEDESFILEDPTLLNIDTIDSHSYDTSSVASSDSGDRTNLKRKKKLPDSFSLHGSVMRHSLLKGISAQIVSAFKRVMGVRTCESRCLFSGSKGEVCCIEPLHSKPELKDHPITQFSLLAMADLHWSLCNLRASVTRGLNPKQDYCSICLQQYKRRQEMADEIIVFSCGHLYHSFCLQNKECTVEFEGQTRWTCYKCSSSNKVGKLSENSSEIKKGRITPSQVKMSPSYHQSKGDPTAKKGTSEPVLDPQQIQAFDQLCRLYRGSSRLALLTELSQNRSSESYRPFSGSQSAPAFNSIFQNENFQLQLIPPPVTED
2	Q8N3P4-D2	47-63,149-272,1019-1234	357		FKNDLIDDKEFDIPQVDADKVDAGLPTAIAVSSLIAVGTSHGLALIFGKDQNQALRLCLGSTSVGGQYGAISALSINNDCSRLLCGFAKGQITMWDLASGKLLRSITDAHPPGTAILHIKFTDDPTLAICNDSGGSVFELTQELLQISPCITEQFIELLCQFNPTQVIETLQVLECYRLEETIQITQKYQLHEVTAYLLEKKGDIHGAFLIMLERLQSKLQEVTHQGENTKEDPSLKDVEDTMVETIALCQRNSHNLNQQQREALWFPLLEAMMAPQKLSSSAIPHLHSEALKSLTMQVLNSMAAFIALPSILQRILQDPVYGKGKLGEIQGLILGMLDTFNYEQTLLETTTSLLNQ
3	Q8N3P4-D3	322-1018	697		SLTKILVIGLKPSLKVWMTFPYGRMDPSSVPLLAWHFVAVQNYVNPMLAFCRGDVVHFLLVKRDESGAIHVTKQKHLHLYYDLINFTWINSRTVVLLDSVEKLHVIDRQTQEELETVEISEVQLVYNSSHFKSLATGGNVSQALALVGEKACYQSISSYGGQIFYLGTKSVYVMMLRSWRERVDHLLKQDCLTEALALAWSFHEGKAKAVVGLSGDASKRKAIVADRMVEILFHYADRALKKCPDQGKIQVMEQHFQDMVPVIVDYCLLLQRKDLLFSQMYDKLSENSVAKGVFLECLEPYILSDKLVGITPQVMKDLIVHFQDKKLMENVEALIVHMDITSLDIQQVVLMCWENRLYDAMIYVYNRGMNEFISPMEKLFRVIAPPLNAGKTLTDEQVVMGNKLLVYISCCLAGRAYPLGDIPEDLVPLVKNQVFEFLIRLHSAEASPEEEIYPYIRTLLHFDTREFLNVLALTFEDFKNDKQAVEYQQRIVDILLKVMVENSDFTPSQVGCLFTFLARQLAKPDNTLFVNRTLFDQVLEFLCSPDDDSRHSERQQVLLELLQAGGIVQFEESRLIRMAEKAEFYQICEFMYEREHQYDKIIDCYLRDPLREEEVFNYIHNILSIPGHSAEEKQSVWQKAMDHIEELVSLKPCKAAELVATHFSGHIETVIKKLQNQVLLFKFLRSLLDPREGIHVN

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.39

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	6sytA	0.34	8.11	0.051	0.460	model1_6sytA.pdb.gz
2	6tc0C	0.32	7.14	0.057	0.411	model1_6tc0C.pdb.gz
3	6tgbA	0.32	9.34	0.024	0.475	model1_6tgbA.pdb.gz
4	6edoA	0.32	10.08	0.042	0.497	model1_6edoA.pdb.gz
5	6bq1A	0.32	9.65	0.030	0.482	model1_6bq1A.pdb.gz
6	3s4wA	0.32	8.08	0.069	0.432	model1_3s4wA.pdb.gz
7	6wg3E	0.31	7.75	0.063	0.417	model1_6wg3E.pdb.gz
8	3javA	0.31	9.04	0.039	0.452	model1_3javA.pdb.gz
9	6reyc	0.31	8.91	0.049	0.443	model1_6reyc.pdb.gz
10	6yufD	0.31	7.64	0.050	0.404	model1_6yufD.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0019899	0.52	enzyme binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.89	cellular process
GO:0016043	0.85	cellular component organization
GO:0044699	0.77	single-organism process
GO:0044763	0.73	single-organism cellular process
GO:0006996	0.69	organelle organization
GO:1902589	0.68	single-organism organelle organization
GO:0065007	0.65	biological regulation
GO:0048284	0.64	organelle fusion
GO:0044801	0.64	single-organism membrane fusion
GO:0051179	0.62	localization
GO:0006810	0.61	transport
GO:0050789	0.60	regulation of biological process
GO:0050794	0.58	regulation of cellular process
GO:0071702	0.50	organic substance transport

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044424	1.00	intracellular part
GO:0044444	0.92	cytoplasmic part
GO:0044446	0.89	intracellular organelle part
GO:0043226	0.79	organelle
GO:0043229	0.78	intracellular organelle
GO:0043227	0.76	membrane-bounded organelle
GO:0043231	0.74	intracellular membrane-bounded organelle
GO:0032991	0.71	macromolecular complex
GO:0005768	0.69	endosome
GO:0044437	0.63	vacuolar part
GO:0043234	0.63	protein complex
GO:0044440	0.62	endosomal part
GO:0033263	0.53	CORVET complex

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	3b9jC	0.165	8.60	0.028	0.233	1.17.3.2 1.17.1.4	NA
2	0.060	1q16A	0.221	9.38	0.037	0.326	1.7.99.4	NA
3	0.060	1bxrA	0.197	9.47	0.035	0.295	6.3.5.5	NA
4	0.060	2cseW	0.209	9.14	0.046	0.304	3.6.4.13	NA
5	0.060	2e1qA	0.181	10.02	0.024	0.281	1.17.3.2 1.17.1.4	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.01	3cmvB	0.228	9.13	0.039	0.333	0.20	ANP	complex1.pdb.gz	158,159,168,169,200,203
2	0.01	1w9c0	0.154	4.78	0.100	0.174	0.18	III	complex2.pdb.gz	64,157,176,214,215
3	0.01	1jppA	0.224	6.24	0.057	0.273	0.13	III	complex3.pdb.gz	157,179,184
4	0.01	2vglA	0.246	6.50	0.063	0.306	0.29	IHP	complex4.pdb.gz	60,175,1006,1007,1008
5	0.01	2gl7A	0.231	6.64	0.084	0.288	0.24	III	complex5.pdb.gz	156,174,183,186,206
6	0.01	3cmvH	0.230	9.28	0.033	0.340	0.25	ANP	complex6.pdb.gz	158,159,209
7	0.01	3cmvE	0.229	9.11	0.034	0.333	0.25	ANP	complex7.pdb.gz	61,155,156,157,169
8	0.01	2uvcG	0.260	9.48	0.029	0.388	0.10	FMN	complex8.pdb.gz	156,157,239,247
9	0.01	2uvaG	0.239	10.21	0.026	0.373	0.12	FMN	complex9.pdb.gz	218,247,248
10	0.01	2l1lB	0.074	4.07	0.077	0.081	0.18	III	complex10.pdb.gz	157,179,183,323

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
