D-I-TASSER Q8NGR1

D-I-TASSER results for Q8NGR1

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q8NGR1
Protein Name: Olfactory receptor 13A1
Gene Name: OR13A1

Input Sequence in FASTA format

>Q8NGR1 (328 residues)
MKLWMESHLIVPETRPSPRMMSNQTLVTEFILQGFSEHPEYRVFLFSCFLFLYSGALTGN
VLITLAITFNPGLHAPMYFFLLNLATMDIICTSSIMPKALASLVSEESSISYGGCMAQLY
FLTWAASSELLLLTVMAYDRYAAICHPLHYSSMMSKVFCSGLATAVWLLCAVNTAIHTGL
MLRLDFCGPNVIIHFFCEVPPLLLLSCSSTYVNGVMIVLADAFYGIVNFLMTIASYGFIV
SSILKVKTAWGRQKAFSTCSSHLTVVCMYYTAVFYAYISPVSGYSAGKSKLAGLLYTVLS
PTLNPLIYTLRNKEVKAALRKLFPFFRN

Predicted Contact and Distance Map Used in D-I-TASSER simulation

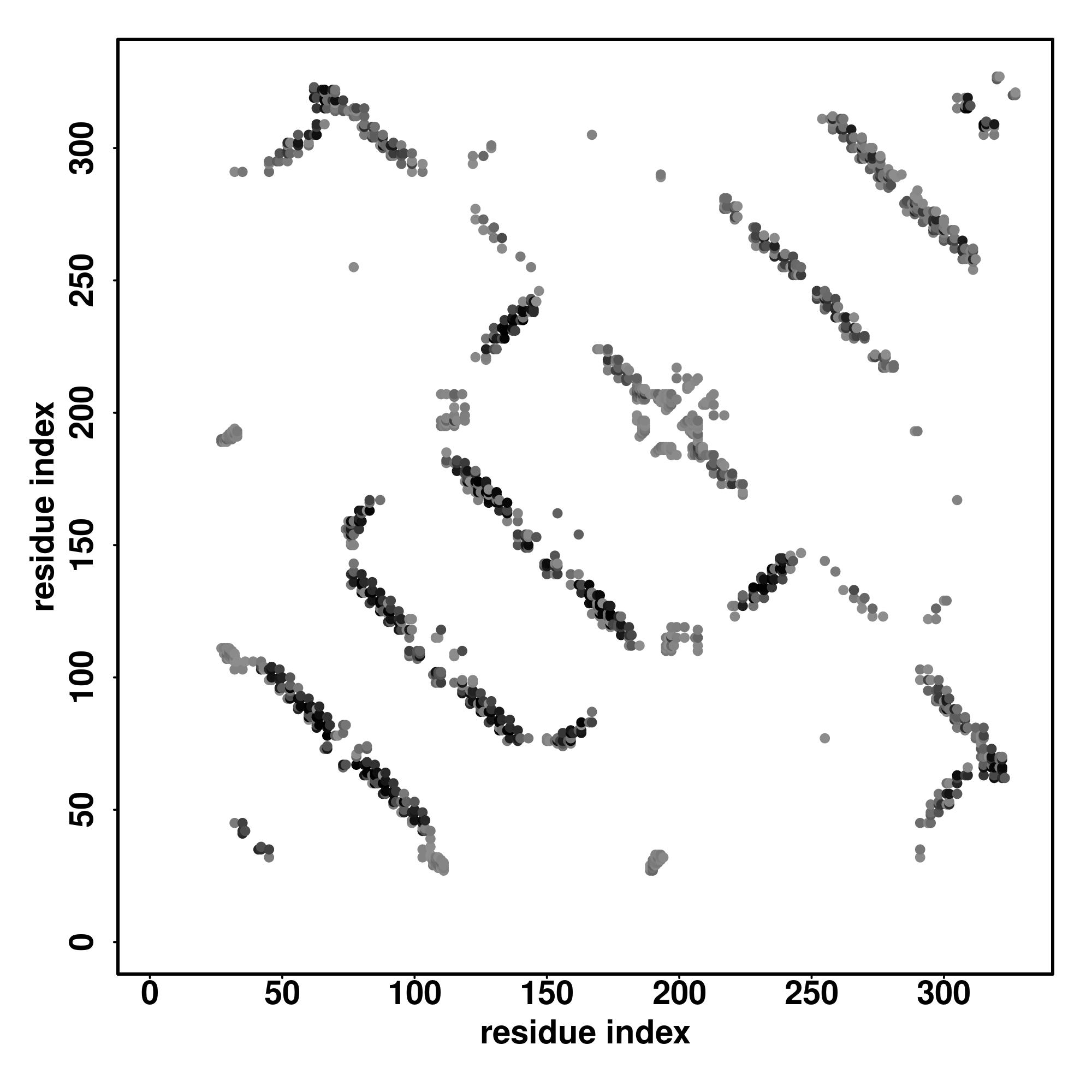

Contact Map

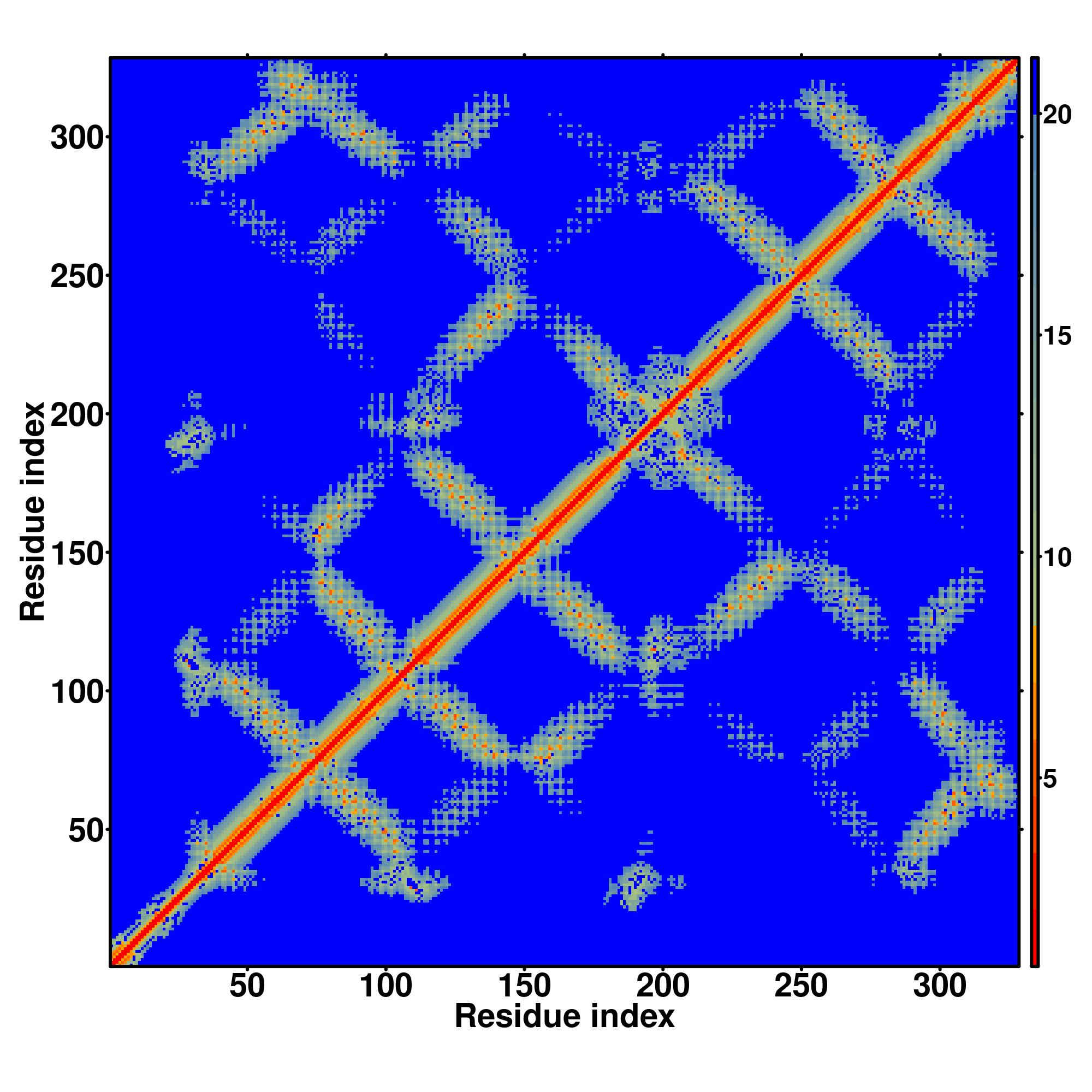

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q8NGR1-D1	1-328	328		MKLWMESHLIVPETRPSPRMMSNQTLVTEFILQGFSEHPEYRVFLFSCFLFLYSGALTGNVLITLAITFNPGLHAPMYFFLLNLATMDIICTSSIMPKALASLVSEESSISYGGCMAQLYFLTWAASSELLLLTVMAYDRYAAICHPLHYSSMMSKVFCSGLATAVWLLCAVNTAIHTGLMLRLDFCGPNVIIHFFCEVPPLLLLSCSSTYVNGVMIVLADAFYGIVNFLMTIASYGFIVSSILKVKTAWGRQKAFSTCSSHLTVVCMYYTAVFYAYISPVSGYSAGKSKLAGLLYTVLSPTLNPLIYTLRNKEVKAALRKLFPFFRN

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.8386

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	4zwjA	0.87	2.66	0.143	0.960	model1_4zwjA.pdb.gz
2	3capA	0.86	2.79	0.156	0.957	model1_3capA.pdb.gz
3	2ks9A	0.85	2.56	0.147	0.936	model1_2ks9A.pdb.gz
4	6me6A	0.81	2.90	0.143	0.912	model1_6me6A.pdb.gz
5	2ziyA	0.80	3.09	0.129	0.899	model1_2ziyA.pdb.gz
6	6lw5A	0.79	3.56	0.115	0.927	model1_6lw5A.pdb.gz
7	4n6hA	0.79	3.17	0.160	0.887	model1_4n6hA.pdb.gz
8	5nddA	0.78	3.19	0.131	0.890	model1_5nddA.pdb.gz
9	6i9kA	0.77	2.94	0.154	0.863	model1_6i9kA.pdb.gz
10	5vblB	0.77	2.95	0.147	0.875	model1_5vblB.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0004888	1.00	transmembrane signaling receptor activity
GO:0004984	0.75	olfactory receptor activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0050794	1.00	regulation of cellular process
GO:0007165	0.99	signal transduction
GO:0007186	0.91	G-protein coupled receptor signaling pathway
GO:0009987	0.60	cellular process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044425	0.87	membrane part
GO:0016021	0.86	integral component of membrane
GO:0044464	0.82	cell part
GO:0044424	0.67	intracellular part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	3d4sA	0.748	2.68	0.165	0.826	3.2.1.17	135,140
2	0.060	1jtnA	0.221	4.66	0.047	0.299	3.2.1.17	NA
3	0.060	1yisA	0.427	5.40	0.047	0.628	4.3.2.2	98,106
4	0.060	3e04D	0.429	6.06	0.046	0.677	4.2.1.2	NA
5	0.060	2nyfA	0.434	6.23	0.063	0.677	4.3.1.5	275

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.04	3dqbA	0.854	2.83	0.159	0.957	0.29	UUU	complex1.pdb.gz	56,59,86
2	0.04	2x72A	0.855	2.81	0.162	0.957	0.22	RET	complex2.pdb.gz	45,46,49,99,102
3	0.04	1gzmA	0.842	2.93	0.153	0.957	0.36	UUU	complex3.pdb.gz	59,63,64
4	0.04	2ks9A	0.849	2.56	0.147	0.936	0.33	III	complex4.pdb.gz	10,31,33,283
5	0.03	2ksaA	0.849	2.56	0.147	0.936	0.25	III	complex5.pdb.gz	111,112,113
6	0.03	2ksbA	0.849	2.56	0.147	0.936	0.16	III	complex6.pdb.gz	33,112,113
7	0.03	2rh1A	0.753	2.75	0.167	0.835	0.32	CAU	complex7.pdb.gz	59,125,129,263,266,267,270
8	0.01	1ln6A	0.551	5.27	0.103	0.814	0.10	RET	complex8.pdb.gz	102,110,193
9	0.01	3htbA	0.216	4.78	0.043	0.293	0.26	JZ4	complex9.pdb.gz	84,85,89,132
10	0.01	1c61A	0.197	5.48	0.031	0.299	0.28	KR	complex10.pdb.gz	56,57,60

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
