D-I-TASSER Q8WUX2-D2

D-I-TASSER results for Q8WUX2-D2

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>Q8WUX2 (63 residues)
APLEDIAEQIFNAAGPSGRNTEYLFELANSIRNLVPEEADEHLFALEKLVKERLEGKQNL
NCI

Predicted Secondary Structure

Sequence	20 40 60 \| \| \| APLEDIAEQIFNAAGPSGRNTEYLFELANSIRNLVPEEADEHLFALEKLVKERLEGKQNLNCI
Prediction	CCHHHHHHHHHHHSCCCCCCHHHHHHHHHHHHHHCCCCCCHHHHHHHHHHHHHHHHHHCCCCC
Confidence	989999999999028899969999999999999779999848999999999999832122569
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 \| \| \| APLEDIAEQIFNAAGPSGRNTEYLFELANSIRNLVPEEADEHLFALEKLVKERLEGKQNLNCI
Prediction	754651052025142442513400230151037125725151034015204621674663627
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

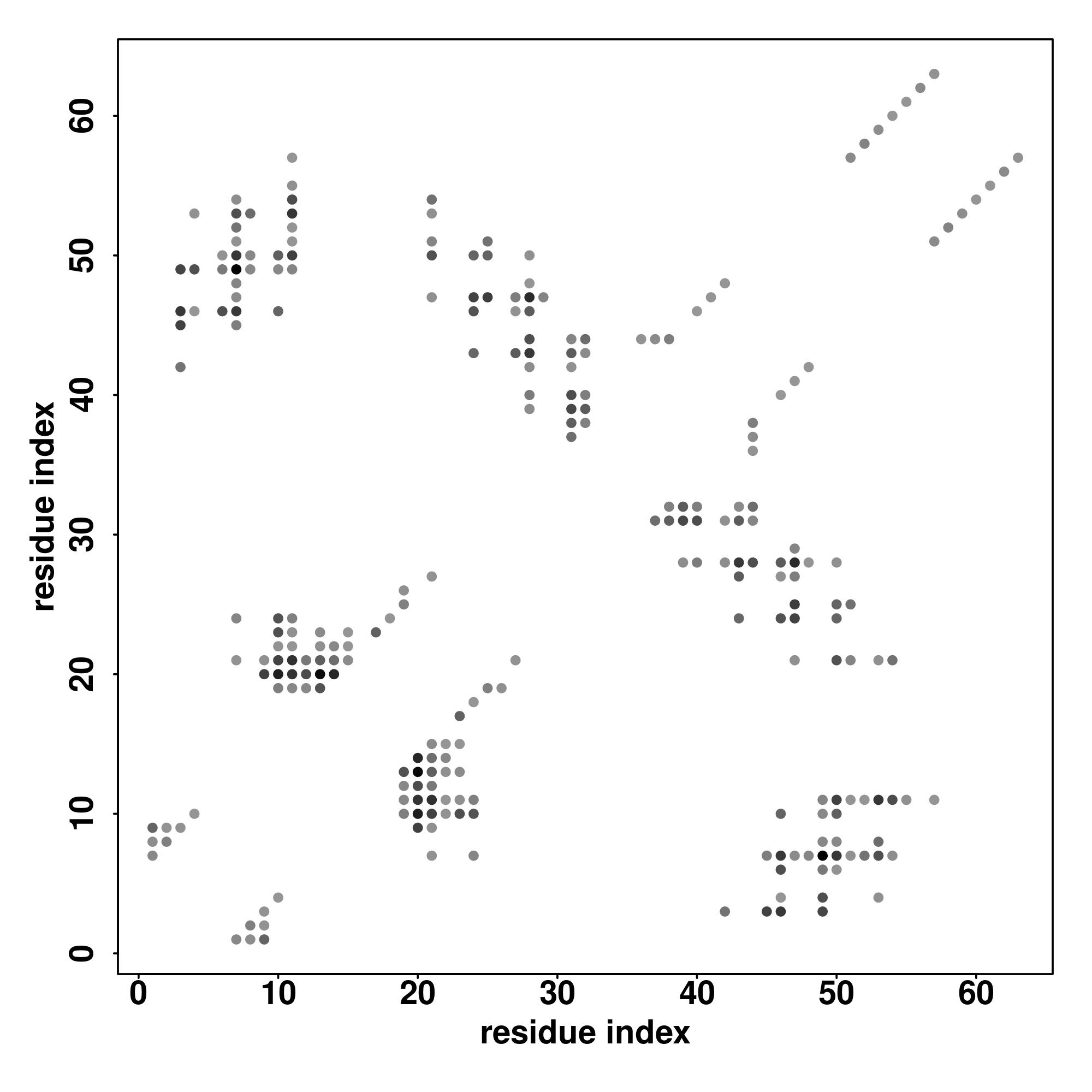

Contact Map

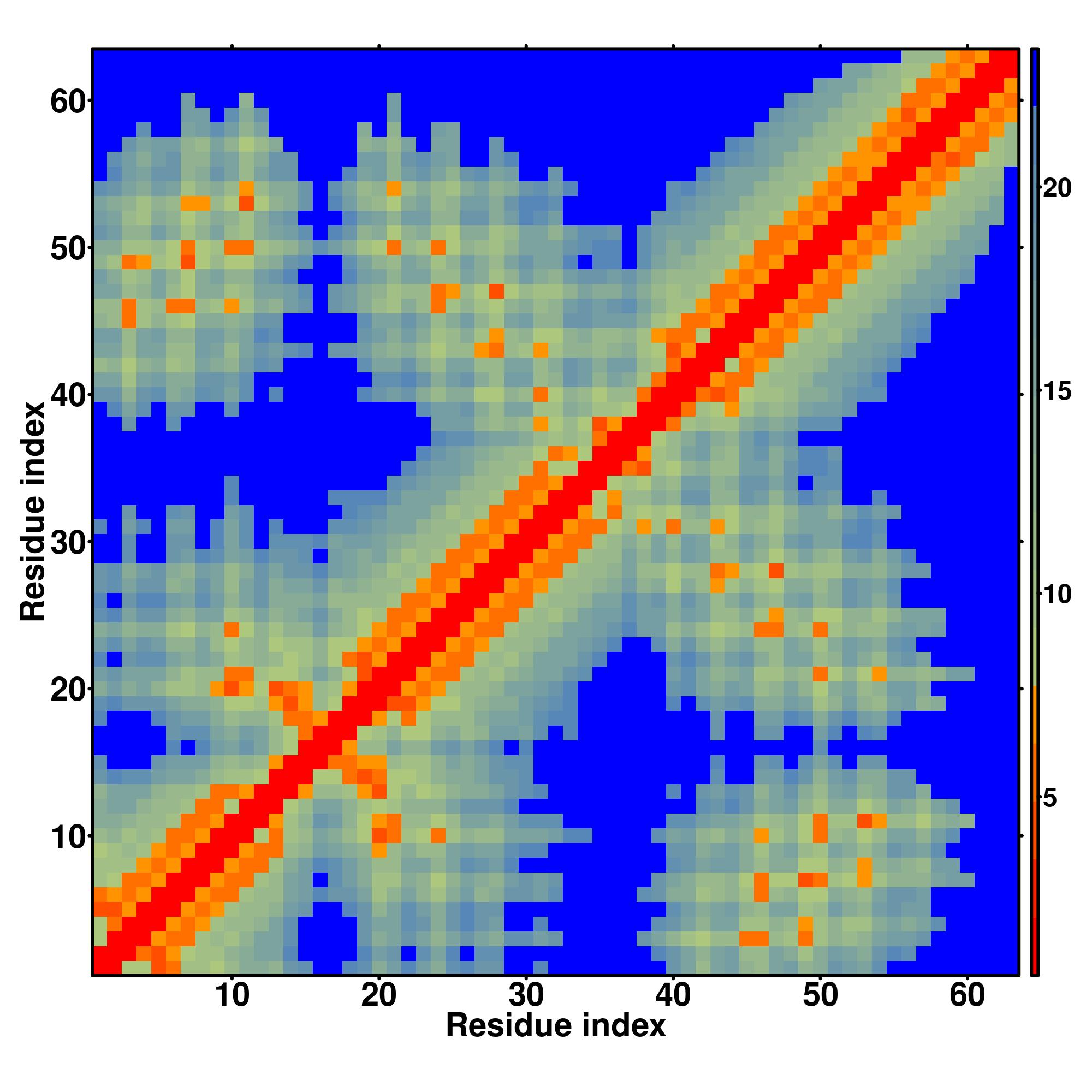

Distance Map

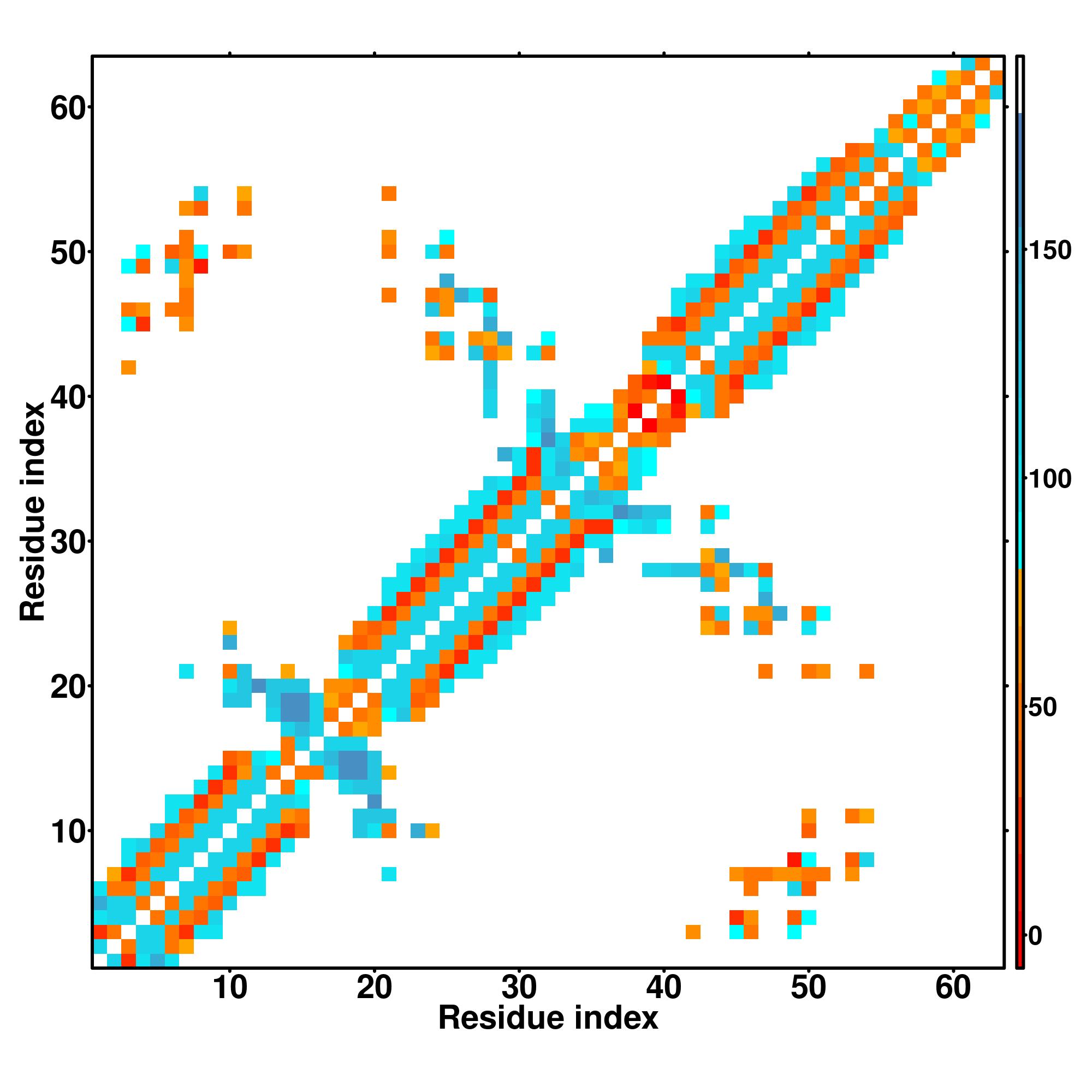

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60

                   |                   |                   |

SS
Seq

CCHHHHHHHHHHHSCCCCCCHHHHHHHHHHHHHHCCCCCCHHHHHHHHHHHHHHHHHHCCCCC
APLEDIAEQIFNAAGPSGRNTEYLFELANSIRNLVPEEADEHLFALEKLVKERLEGKQNLNCI

5i6xA

0.03

1.81

1.17

DEthreader

MLIFTVIYFSIW-KG--VKTSGKVVWVTATFPYIALLFFMLITLGLDSSFAGLEGVITAVLDP

6k95A1

1.00

0.89

24.89

1.46

SPARKS-K

APLEDIAEQIFNAAGPSGRNTEYLFELANSIRNLVPEEADEHLFALEKLVKERLEG-------

6k95A1

1.00

0.89

24.89

1.51

HHsearch

APLEDIAEQIFNAAGPSGRNTEYLFELANSIRNLVPEEADEHLFALEKLVKERLEG-------

6k95A

0.96

0.84

23.59

1.17

DEthreader

APLEDIAEQIFNAAGPSGRNTEYLFELANSIRNL-VPEADEHLFALEKLVKERLEG-------

6k95A

1.00

0.89

24.89

1.04

SPARKS-K

APLEDIAEQIFNAAGPSGRNTEYLFELANSIRNLVPEEADEHLFALEKLVKERLEG-------

5cwdA2

0.13

4.38

0.84

MapAlign

EVAKIAAKACLEVAKQAGMAARSFCEAAKRAAKESNDEVEKIAKKACKEVAKQAGMPWLE---

6k95A

1.00

0.89

24.89

0.67

CEthreader

APLEDIAEQIFNAAGPSGRNTEYLFELANSIRNLVPEEADEHLFALEKLVKERLEG-------

5hwiA

0.29

0.27

8.21

0.96

MUSTER

ET-DETAKVIAVSHGPSGSNYEYLAKLEQALAQPIMKETDHYLTALLETVNKYRHHHHH----

5hwiA

0.29

0.27

8.21

1.42

HHsearch

ET-DETAKVIAVSHGPSGSNYEYLAKLEQALAQPIMKETDHYLTALLETVNKYRHHHHH----

6k95A1

1.00

0.87

24.44

0.85

FFAS-3D

APLEDIAEQIFNAAGPSGRNTEYLFELANSIRNLVPEEADEHLFALEKLVKERLE--------

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.922

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	6k95A1	0.82	1.21	1.000	0.889	model1_6k95A1.pdb.gz
2	5hwiA	0.73	2.52	0.293	0.905	model1_5hwiA.pdb.gz
3	7wkkA	0.69	2.76	0.085	0.921	model1_7wkkA.pdb.gz
4	7zh3D	0.67	2.28	0.140	0.889	model1_7zh3D.pdb.gz
5	3wajA	0.66	2.38	0.098	0.968	model1_3wajA.pdb.gz
6	7xyaF	0.66	2.81	0.033	0.889	model1_7xyaF.pdb.gz
7	6npsA4	0.66	2.31	0.069	0.921	model1_6npsA4.pdb.gz
8	7wooE	0.66	2.93	0.048	0.968	model1_7wooE.pdb.gz
9	5hb4B	0.65	2.62	0.052	0.889	model1_5hb4B.pdb.gz
10	4ifqA4	0.56	3.03	0.053	0.873	model1_4ifqA4.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0003824	0.65	catalytic activity
GO:0016740	0.60	transferase activity
GO:0016755	0.56	transferase activity, transferring amino-acyl groups
GO:0005102	0.56	receptor binding
GO:0005112	0.55	Notch binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.95	cellular process
GO:0008152	0.70	metabolic process
GO:0044699	0.69	single-organism process
GO:0071704	0.66	organic substance metabolic process
GO:0044763	0.66	single-organism cellular process
GO:0044237	0.66	cellular metabolic process
GO:0065007	0.63	biological regulation
GO:0050789	0.60	regulation of biological process
GO:0050794	0.58	regulation of cellular process
GO:0022008	0.56	neurogenesis
GO:0006807	0.56	nitrogen compound metabolic process
GO:1901576	0.54	organic substance biosynthetic process
GO:0044249	0.54	cellular biosynthetic process
GO:0034641	0.54	cellular nitrogen compound metabolic process
GO:1901564	0.51	organonitrogen compound metabolic process
GO:1901566	0.50	organonitrogen compound biosynthetic process
GO:0080090	0.50	regulation of primary metabolic process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044444	1.00	cytoplasmic part
GO:0005829	0.69	cytosol
GO:0044422	0.66	organelle part
GO:0044446	0.60	intracellular organelle part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1ayxA	0.567	3.32	0.102	0.921	3.2.1.3	NA
2	0.060	1f28B	0.415	3.82	0.038	0.667	2.1.1.45	18
3	0.060	3ix6B	0.589	3.10	0.018	0.873	2.1.1.45	19
4	0.060	3fjwA	0.602	2.64	0.103	0.889	1.11.1.16	NA
5	0.060	1bgpA	0.607	2.73	0.067	0.873	1.11.1.7	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.12	3l1lA	0.640	2.50	0.100	0.952	0.16	ARG	complex1.pdb.gz	15,18,20,23
2	0.11	1bdgA	0.632	3.03	0.081	0.952	0.14	GLC	complex2.pdb.gz	14,18,19,20
3	0.01	1hvyD	0.612	2.64	0.018	0.841	0.13	UMP	complex3.pdb.gz	17,18,19,22
4	0.01	1rtsB	0.534	3.66	0.033	0.905	0.13	UMP	complex4.pdb.gz	17,19,23
5	0.01	1f28A	0.416	3.90	0.038	0.667	0.12	F89	complex5.pdb.gz	5,43,49
6	0.01	2h2qB	0.626	2.77	0.018	0.873	0.11	NAP	complex6.pdb.gz	11,12,14,15,18,19
7	0.01	2tsrC	0.542	3.60	0.033	0.905	0.16	UMP	complex7.pdb.gz	13,15,18
8	0.01	1ci7A	0.624	2.77	0.035	0.873	0.16	UMP	complex8.pdb.gz	12,13,14,15
9	0.01	3kjsA	0.631	2.75	0.018	0.873	0.17	DQ1	complex9.pdb.gz	10,14,15,18,19,50,51
10	0.01	3kjsB	0.629	2.75	0.018	0.873	0.17	DQ1	complex10.pdb.gz	10,13,14,17,50,51

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
