D-I-TASSER Q92823-D4

D-I-TASSER results for Q92823-D4

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>Q92823 (104 residues)
TPAPVYDVPNPPFDLELTDQLDKSVQLSWTPGDDNNSPITKFIIEYEDAMHKPGLWHHQT
EVSGTQTTAQLKLSPYVNYSFRVMAVNSIGKSLPSEASEQYLTK

Predicted Secondary Structure

Sequence	20 40 60 80 100 \| \| \| \| \| TPAPVYDVPNPPFDLELTDQLDKSVQLSWTPGDDNNSPITKFIIEYEDAMHKPGLWHHQTEVSGTQTTAQLKLSPYVNYSFRVMAVNSIGKSLPSEASEQYLTK
Prediction	CCCCCCCCCCCCCCCSSSSSCCCSSSSSSSCCCCCCCCCSSSSSSSSSCCCCCCSSSSSSSSCCCSSSSSCCCCCCCSSSSSSSSSSCCCSCCCCCCCCCSSSC
Confidence	98664467959998589995199899999789899986218999999699999638998985274299982898892999999999177416992885558839
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 \| \| \| \| \| TPAPVYDVPNPPFDLELTDQLDKSVQLSWTPGDDNNSPITKFIIEYEDAMHKPGLWHHQTEVSGTQTTAQLKLSPYVNYSFRVMAVNSIGKSLPSEASEQYLTK
Prediction	87251643454754040323364104036533754414133020112256555432342342444332223634443423312222252352431532443408
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

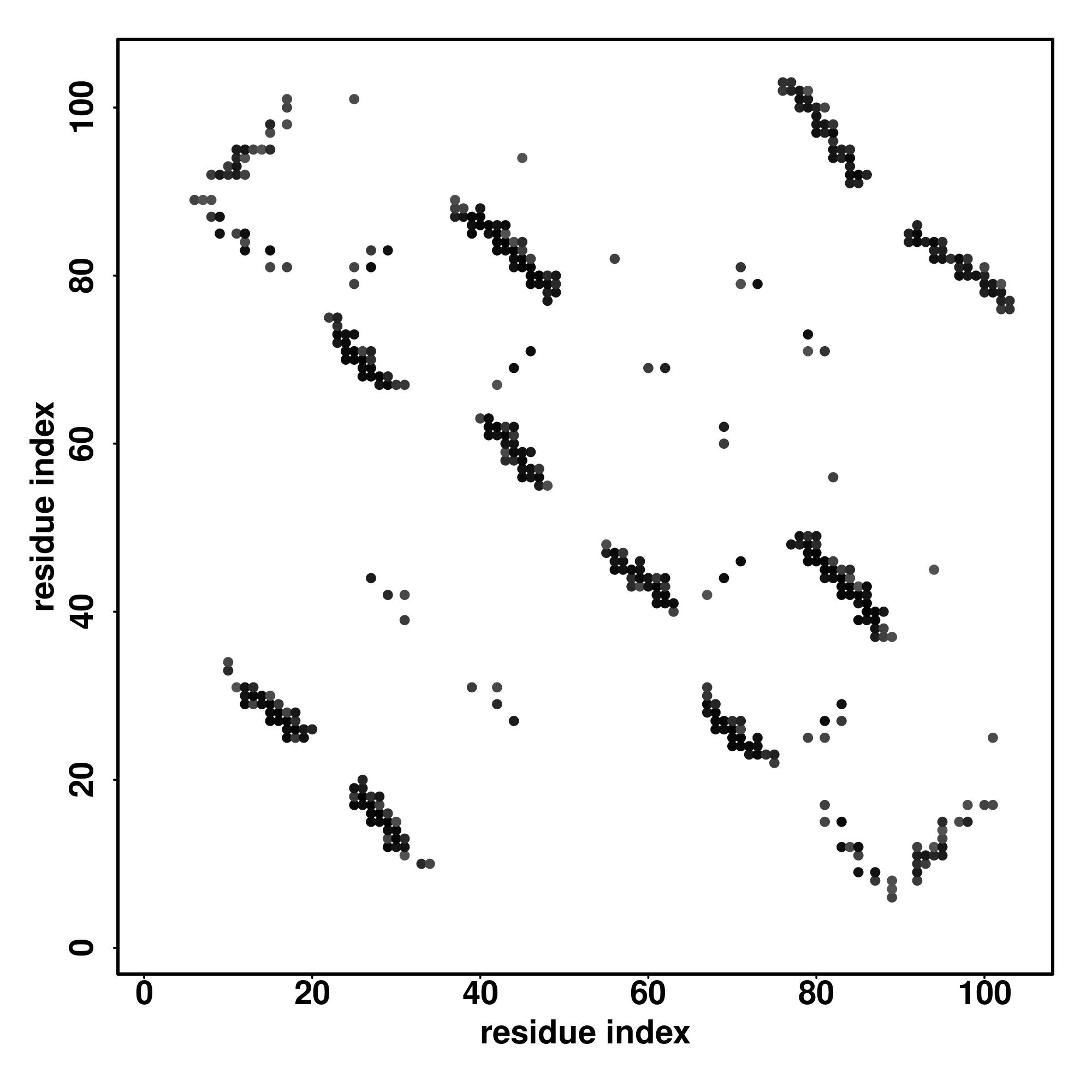

Contact Map

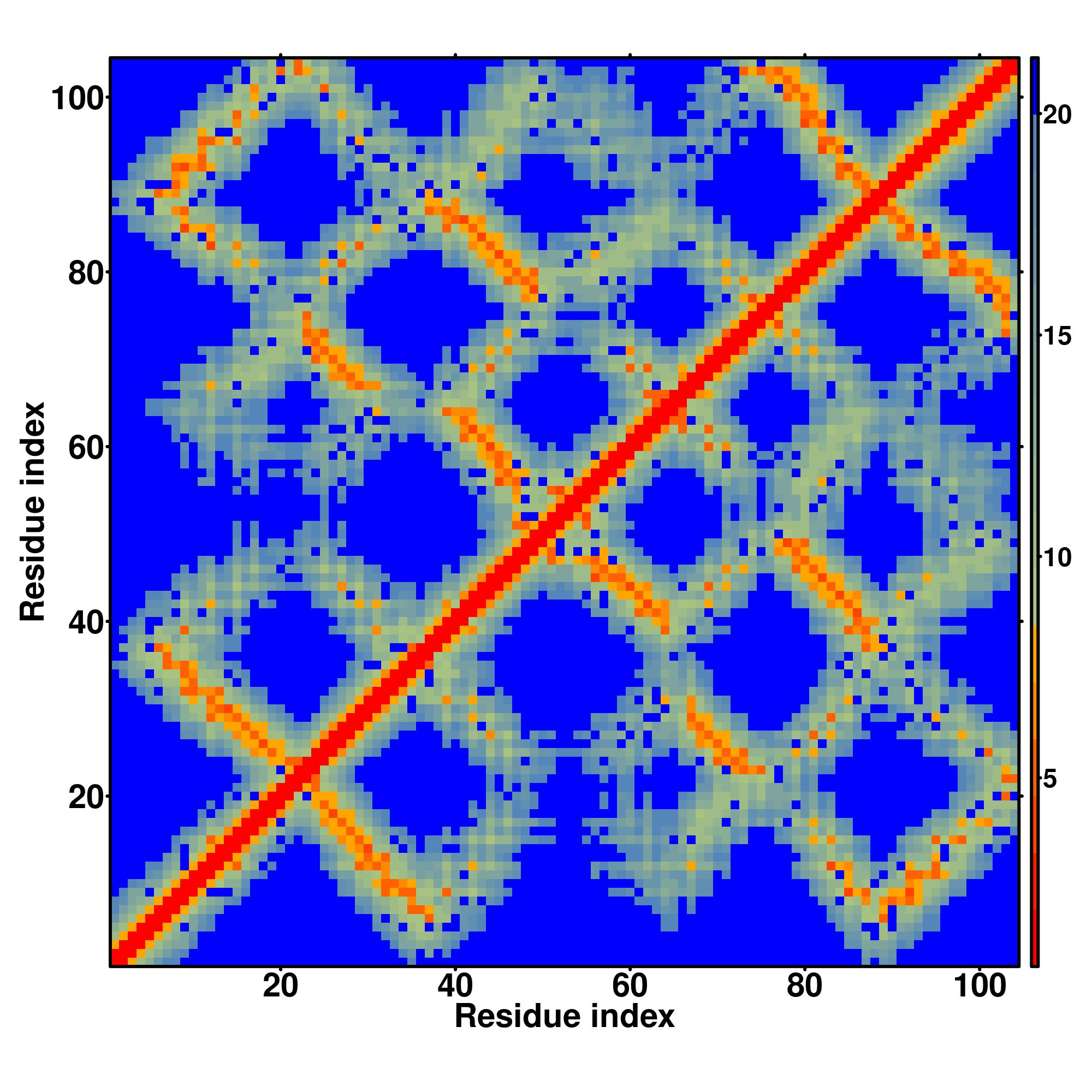

Distance Map

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100

                   |                   |                   |                   |                   |

SS
Seq

CCCCCCCCCCCCCCCSSSSSCCCSSSSSSSCCCCCCCCCSSSSSSSSSCCCCCCSSSSSSSSCCCSSSSSCCCCCCCSSSSSSSSSSCCCSCCCCCCCCCSSSC
TPAPVYDVPNPPFDLELTDQLDKSVQLSWTPGDDNNSPITKFIIEYEDAMHKPGLWHHQTEVSGTQTTAQLKLSPYVNYSFRVMAVNSIGKSLPSEASEQYLTK

3lpwA

0.32

0.31

9.27

1.33

DEthreader

TCSKASERPLPPGKITLMDVTRNSVSLSWEKPEHDGSRILGYIVEMQTKGS--DKWATCATVK--VTEATITLIQGEEYSFRVSAQNEKGISDPRQLSVPVIAK

1cfbA1

0.32

0.31

9.27

1.50

SPARKS-K

---IVQDVPNAP-KLTGITCQADKAEIHWEQQGDNRSPILHYTIQFNTSFTPASWDAAYEKVPNTDSSFVVQMSPWANYTFRVIAFNKIGASPPSAHSDSCTTQ

2nziA

0.37

0.34

10.00

0.45

MapAlign

-----ADVPDPPRGVKVSDVSRDSVNLTWTEPSDGGSKITNYIVEKCATT--AERWLRVGQARE--TRYTVILFGKTSYQFRVIAENKFGLSKPSEPSEPTITK

2nziA

0.35

0.34

10.05

0.33

CEthreader

VELDVADVPDPPRGVKVSDVSRDSVNLTWTEPASGGSKITNYIVEKCATT--AERWLRVGQARE--TRYTVILFGKTSYQFRVIAENKFGLSKPSEPSEPTITK

1ueyA

0.99

27.74

1.24

MUSTER

TPAPVYDVPNPPFDLELTDQLDKSVQLSWTPGDDNNSPITKFIIEYEDAMHKPGLWHHQTEVSGTQTTAQLNLSPYVNYSFRVMAVNSIGKSLPSEASEQYLTK

4bk4A

0.20

0.19

6.16

0.84

HHsearch

VSVTVQAAPSSIALVQAKEVTRYSVALAWLEPDRPNGVILEYEVKYYEKDQNERSYRIVR---TAARNTDIGLNPLTSYVFHVRARTAAGYGDFSEPLEVTTNT

1cfbA1

0.31

0.30

9.00

1.98

FFAS-3D

----VQDVPNAPKLTGI-TCQADKAEIHWEQQGDNRSPILHYTIQFNTSFTPASWDAAYEKVPNTDSSFVVQMSPWANYTFRVIAFNKIGASPPSAHSDSCTTQ

1wisA

0.27

8.27

0.43

EigenThreader

SSGVPPELPGPPTNLGISNIGPRSVTLQFRPGYDGKTSISRWLVEAQVGVVGEEEWLLIHQLSNERSMEVPDLNPFTCYSFRMRQVNIVGTSPPSQPSRKIQTL

1ueyA

0.99

27.74

1.47

CNFpred

TPAPVYDVPNPPFDLELTDQLDKSVQLSWTPGDDNNSPITKFIIEYEDAMHKPGLWHHQTEVSGTQTTAQLNLSPYVNYSFRVMAVNSIGKSLPSEASEQYLTK

4urtB

0.26

7.99

1.33

DEthreader

VATYEAAPTSAPKDLTVITRKPRAVIVSWQPPLEANGKITAYILFYTLD-KNIPDWIM-ETISGDRLTHQIMLNLDTMYYFRIQARNSKGVGPLSDPILFRTLK

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.8769

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	2nziA	0.90	1.19	0.360	0.962	model1_2nziA.pdb.gz
2	1ueyA	0.88	1.81	0.962	0.971	model1_1ueyA.pdb.gz
3	1cfbA1	0.87	1.36	0.343	0.952	model1_1cfbA1.pdb.gz
4	1x4zA	0.87	1.71	0.252	0.971	model1_1x4zA.pdb.gz
5	5i99A	0.87	1.40	0.333	0.952	model1_5i99A.pdb.gz
6	3lpwA	0.87	1.52	0.320	0.952	model1_3lpwA.pdb.gz
7	4o00A	0.86	1.16	0.344	0.923	model1_4o00A.pdb.gz
8	6ygnA	0.85	1.20	0.358	0.913	model1_6ygnA.pdb.gz
9	6pogA	0.85	1.09	0.284	0.913	model1_6pogA.pdb.gz
10	2jllA	0.85	1.63	0.220	0.952	model1_2jllA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0004872	0.50	receptor activity
GO:0042802	0.45	identical protein binding
GO:0099600	0.44	transmembrane receptor activity
GO:0004888	0.43	transmembrane signaling receptor activity
GO:0046983	0.39	protein dimerization activity
GO:0042803	0.37	protein homodimerization activity
GO:0008046	0.35	axon guidance receptor activity
GO:0003823	0.33	antigen binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.92	cellular process
GO:0044699	0.91	single-organism process
GO:0044763	0.88	single-organism cellular process
GO:0032502	0.77	developmental process
GO:0065007	0.76	biological regulation
GO:0050789	0.75	regulation of biological process
GO:0050794	0.74	regulation of cellular process
GO:0044767	0.68	single-organism developmental process
GO:0048856	0.64	anatomical structure development
GO:0048869	0.58	cellular developmental process
GO:0006928	0.55	movement of cell or subcellular component
GO:0009653	0.52	anatomical structure morphogenesis

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.96	cell part
GO:0044425	0.54	membrane part
GO:0044424	0.53	intracellular part
GO:0097458	0.48	neuron part
GO:0044459	0.46	plasma membrane part
GO:0031224	0.43	intrinsic component of membrane
GO:0016020	0.43	membrane
GO:0042995	0.41	cell projection
GO:0016021	0.41	integral component of membrane
GO:0031226	0.40	intrinsic component of plasma membrane
GO:0044444	0.39	cytoplasmic part
GO:0043005	0.39	neuron projection
GO:0005887	0.39	integral component of plasma membrane
GO:0030424	0.36	axon
GO:0044422	0.34	organelle part
GO:0043025	0.33	neuronal cell body
GO:0043226	0.31	organelle
GO:0005886	0.31	plasma membrane
GO:0030425	0.30	dendrite

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.261	2dlhA	0.775	2.08	0.190	0.942	3.1.3.48	14,39,95
2	0.067	2gg1A	0.571	2.97	0.095	0.779	2.7.7.48 3.4.21.91	NA
3	0.067	2amuA	0.647	2.87	0.133	0.875	1.15.1.2	NA
4	0.067	2djmA	0.607	2.65	0.065	0.827	3.2.1.3	14,41
5	0.066	2wwmD	0.563	3.18	0.080	0.837	2.7.11.1	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.04	2ibg0	0.761	2.35	0.196	0.942	1.01	III	complex1.pdb.gz	40,41,43,45,58,82,86,90,91,92,93,94
2	0.01	3fmg3	0.639	3.05	0.054	0.885	0.49	III	complex2.pdb.gz	42,61,85,87,88,90,91
3	0.01	2rd58	0.285	4.47	0.085	0.529	0.43	III	complex3.pdb.gz	9,10,11,32,33,34

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
