D-I-TASSER Q96MS0

D-I-TASSER results for Q96MS0

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q96MS0
Protein Name: Roundabout homolog 3
Gene Name: ROBO3

Input Sequence in FASTA format

>Q96MS0 (1386 residues)
MLRYLLKTLLQMNLFADSLAGDISNSSELLLGFNSSLAALNHTLLPPGDPSLNGSRVGPE
DAMPRIVEQPPDLLVSRGEPATLPCRAEGRPRPNIEWYKNGARVATVREDPRAHRLLLPS
GALFFPRIVHGRRARPDEGVYTCVARNYLGAAASRNASLEVAVLRDDFRQSPGNVVVAVG
EPAVLECVPPRGHPEPSVSWRKDGARLKEEEGRITIRGGKLMMSHTLKSDAGMYVCVASN
MAGERESAAAEVMVLERPSFLRRPVNQVVLADAPVTFLCEVKGDPPPRLRWRKEDGELPT
GRYEIRSDHSLWIGHVSAEDEGTYTCVAENSVGRAEASGSLSVHVPPQLVTQPQDQMAAP
GESVAFQCETKGNPPPAIFWQKEGSQVLLFPSQSLQPTGRFSVSPRGQLNITAVQRGDAG
YYVCQAVSVAGSILAKALLEIKGASLDGLPPVILQGPANQTLVLGSSVWLPCRVTGNPQP
SVRWKKDGQWLQGDDLQFKTMANGTLYIANVQEMDMGFYSCVAKSSTGEATWSGWLKMRE
DWGVSPDPPTEPSSPPGAPSQPVVTEITKNSITLTWKPNPQTGAAVTSYVIEAFSPAAGN
TWRTVADGVQLETHTVSGLQPNTIYLFLVRAVGAWGLSEPSPVSEPVRTQDSSPSRPVED
PWRGQQGLAEVAVRLQEPIVLGPRTLQVSWTVDGPVQLVQGFRVSWRVAGPEGGSWTMLD
LQSPSQQSTVLRGLPPGTQIQIKVQAQGQEGLGAESLSVTRSIPEEAPSGPPQGVAVALG
GDGNSSITVSWEPPLPSQQNGVITEYQIWCLGNESRFHLNRSAAGWARSAMLRGLVPGLL
YRTLVAAATSAGVGVPSAPVLVQLPSPPDLEPGLEVGAGLAVRLARVLREPAFLAGSGAA
CGALLLGLCAALYWRRKQRKELSHYTASFAYTPAVSFPHSEGLSGASSRPPMGLGPAPYS
WLADSWPHPSRSPSAQEPRGSCCPSNPDPDDRYYNEAGISLYLAQTARGTAAPGEGPVYS
TIDPAGEELQTFHGGFPQHPSGDLGPWSQYAPPEWSQGDSGAKGGKVKLLGKPVQMPSLN
WPEALPPPPPSCELSCLEGPEEELEGSSEPEEWCPPMPERSHLTEPSSSGGCLVTPSRRE
TPSPTPSYGQQSTATLTPSPPDPPQPPTDMPHLHQMPRRVPLGPSSPLSVSQPMLGIREA
RPAGLGAGPAASPHLSPSPAPSTASSAPGRTWQGNGEMTPPLQGPRARFRKKPKALPYRR
ENSPGDLPPPPLPPPEEEASWALELRAAGSMSSLERERSGERKAVQAVPLAAQRVLHPDE
EAWLPYSRPSFLSRGQGTSTCSTAGSNSSRGSSSSRGSRGPGRSRSRSQSRSQSQRPGQK
RREEPR

Predicted Contact and Distance Map Used in D-I-TASSER simulation

Contact Map

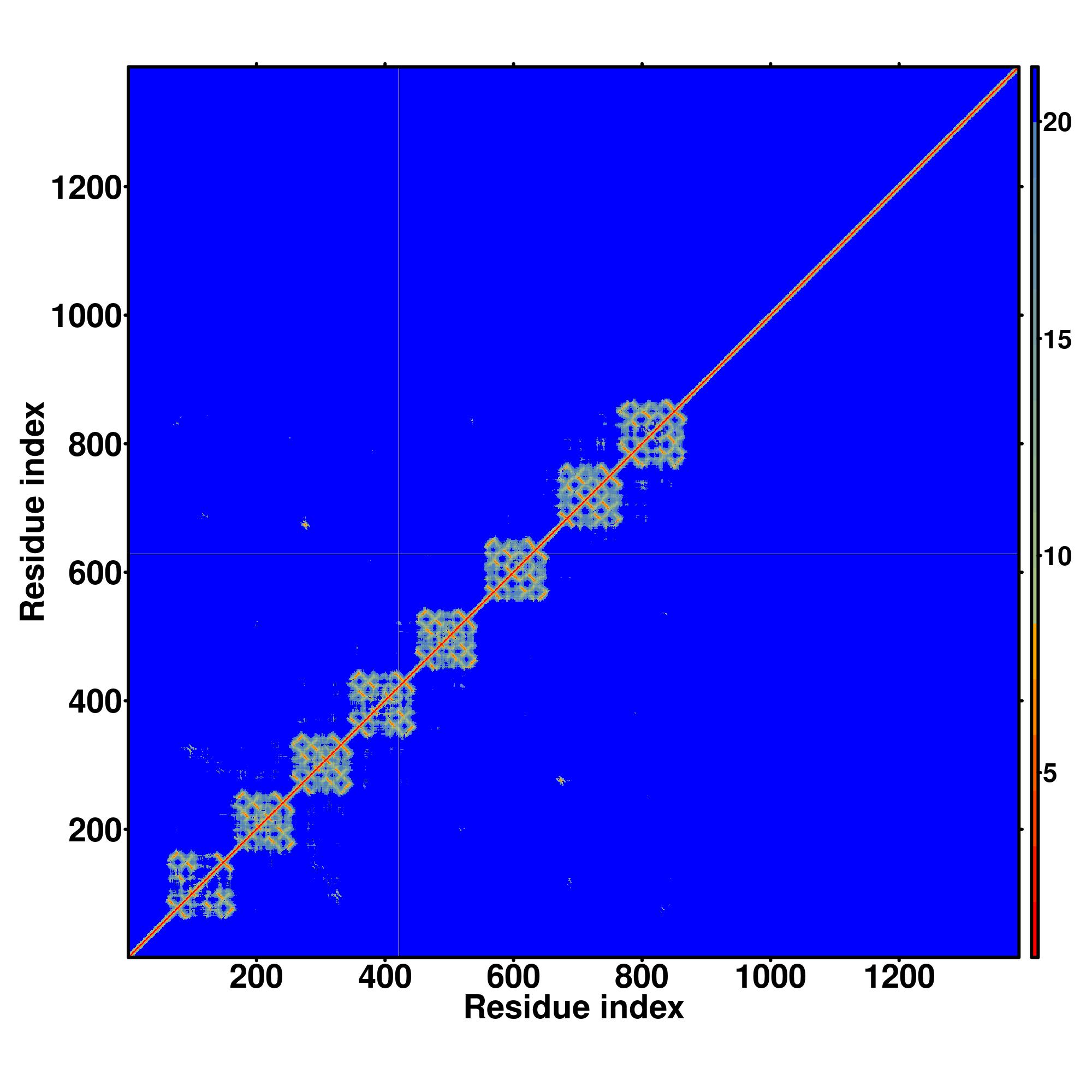

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q96MS0-D1	1-28,81-157,344-558,675-764,781-881,1220-1291	583		MLRYLLKTLLQMNLFADSLAGDISNSSEATLPCRAEGRPRPNIEWYKNGARVATVREDPRAHRLLLPSGALFFPRIVHGRRARPDEGVYTCVARNYLGAAASRNAHVPPQLVTQPQDQMAAPGESVAFQCETKGNPPPAIFWQKEGSQVLLFPSQSLQPTGRFSVSPRGQLNITAVQRGDAGYYVCQAVSVAGSILAKALLEIKGASLDGLPPVILQGPANQTLVLGSSVWLPCRVTGNPQPSVRWKKDGQWLQGDDLQFKTMANGTLYIANVQEMDMGFYSCVAKSSTGEATWSGWLKMREDWGVSPDPPTEPSSPPGALQEPIVLGPRTLQVSWTVDGPVQLVQGFRVSWRVAGPEGGSWTMLDLQSPSQQSTVLRGLPPGTQIQIKVQAQGQEGLGAESLSVTRSIPGDGNSSITVSWEPPLPSQQNGVITEYQIWCLGNESRFHLNRSAAGWARSAMLRGLVPGLLYRTLVAAATSAGVGVPSAPVLVQLPSPPDLEPGLEVGAGLAAPSTASSAPGRTWQGNGEMTPPLQGPRARFRKKPKALPYRRENSPGDLPPPPLPPPEEEASWALELRAAGSM
2	Q96MS0-D2	29-80,1292-1386	147		LLLGFNSSLAALNHTLLPPGDPSLNGSRVGPEDAMPRIVEQPPDLLVSRGEPSSLERERSGERKAVQAVPLAAQRVLHPDEEAWLPYSRPSFLSRGQGTSTCSTAGSNSSRGSSSSRGSRGPGRSRSRSQSRSQSQRPGQKRREEPR
3	Q96MS0-D3	158-249,765-780	108		SLEVAVLRDDFRQSPGNVVVAVGEPAVLECVPPRGHPEPSVSWRKDGARLKEEEGRITIRGGKLMMSHTLKSDAGMYVCVASNMAGERESAAEEAPSGPPQGVAVALG
4	Q96MS0-D4	250-343	94		AEVMVLERPSFLRRPVNQVVLADAPVTFLCEVKGDPPPRLRWRKEDGELPTGRYEIRSDHSLWIGHVSAEDEGTYTCVAENSVGRAEASGSLSV
5	Q96MS0-D5	559-650	92		PSQPVVTEITKNSITLTWKPNPQTGAAVTSYVIEAFSPAAGNTWRTVADGVQLETHTVSGLQPNTIYLFLVRAVGAWGLSEPSPVSEPVRTQ
6	Q96MS0-D6	651-674,918-1075,1212-1219	190		DSSPSRPVEDPWRGQQGLAEVAVRQRKELSHYTASFAYTPAVSFPHSEGLSGASSRPPMGLGPAPYSWLADSWPHPSRSPSAQEPRGSCCPSNPDPDDRYYNEAGISLYLAQTARGTAAPGEGPVYSTIDPAGEELQTFHGGFPQHPSGDLGPWSQYAPPEWSQGDSGAKGGKVKLLGKPVQSPHLSPSP
7	Q96MS0-D7	882-917,1076-1105,1167-1211	111		VRLARVLREPAFLAGSGAACGALLLGLCAALYWRRKMPSLNWPEALPPPPPSCELSCLEGPEEELEPTDMPHLHQMPRRVPLGPSSPLSVSQPMLGIREARPAGLGAGPAA
8	Q96MS0-D8	1106-1166	61		GSSEPEEWCPPMPERSHLTEPSSSGGCLVTPSRRETPSPTPSYGQQSTATLTPSPPDPPQP

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.43

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	6iaaA	0.36	3.50	0.283	0.380	model1_6iaaA.pdb.gz
2	5a22A	0.27	10.36	0.037	0.423	model1_5a22A.pdb.gz
3	6r9tA	0.26	10.16	0.035	0.403	model1_6r9tA.pdb.gz
4	6fb3A	0.26	10.54	0.033	0.415	model1_6fb3A.pdb.gz
5	6uebA	0.26	10.10	0.035	0.402	model1_6uebA.pdb.gz
6	6eojA	0.25	9.96	0.042	0.400	model1_6eojA.pdb.gz
7	1llwA	0.25	10.23	0.041	0.403	model1_1llwA.pdb.gz
8	1kekA	0.25	10.06	0.031	0.395	model1_1kekA.pdb.gz
9	2vdcA	0.25	10.19	0.037	0.398	model1_2vdcA.pdb.gz
10	6cinA	0.25	9.81	0.036	0.387	model1_6cinA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0004872	0.48	receptor activity
GO:0004871	0.38	signal transducer activity
GO:0042802	0.36	identical protein binding
GO:0004888	0.36	transmembrane signaling receptor activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044699	0.89	single-organism process
GO:0009987	0.87	cellular process
GO:0044763	0.82	single-organism cellular process
GO:0065007	0.72	biological regulation
GO:0050789	0.70	regulation of biological process
GO:0032502	0.69	developmental process
GO:0050794	0.66	regulation of cellular process
GO:0044767	0.63	single-organism developmental process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.95	cell part
GO:0044424	0.61	intracellular part
GO:0016020	0.53	membrane
GO:0044425	0.51	membrane part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1ea0A	0.248	10.16	0.037	0.392	1.4.1.13	673
2	0.060	1n1hA	0.195	10.33	0.026	0.312	2.7.7.48	1108
3	0.060	2vdcA	0.252	10.19	0.037	0.398	1.4.1.13	NA
4	0.060	3ikmD	0.222	9.43	0.045	0.333	2.7.7.7	98,142
5	0.060	2vkzG	0.238	9.85	0.026	0.365	2.3.1.38 3.1.2.14	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.01	1a9xA	0.238	9.59	0.040	0.361	0.16	ADP	complex1.pdb.gz	84,86,140,1107,1343
2	0.01	1llzA	0.239	10.51	0.036	0.386	0.11	FMN	complex2.pdb.gz	89,149,150,151,152
3	0.01	1ce8A	0.236	9.87	0.035	0.364	0.27	ADP	complex3.pdb.gz	12,50,98,99,100,101,150,151
4	0.01	2pdaA	0.253	10.03	0.029	0.395	0.11	TPP	complex4.pdb.gz	93,94,95,145,146,150
5	0.01	1ce8C	0.242	9.54	0.043	0.368	0.16	ADP	complex5.pdb.gz	102,153,1103
6	0.01	1a9xG	0.234	9.87	0.031	0.361	0.19	ADP	complex6.pdb.gz	18,100,101,102,103,104,124
7	0.01	1ce8E	0.241	9.57	0.048	0.365	0.12	IMP	complex7.pdb.gz	69,151,152
8	0.01	1m6vC	0.242	9.56	0.043	0.368	0.16	ADP	complex8.pdb.gz	91,95,144,150,151

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
