D-I-TASSER Q9BZW8-D2

D-I-TASSER results for Q9BZW8-D2

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>Q9BZW8 (96 residues)
SLLPDKVEKPRLQGQGKILDRGRCQVALSCLVSRDGNVSYAWYRGSKLIQTAGNLTYLDE
EVDINGTHTYTCNVSNPVSWESHTLNLTQDCQNAHQ

Predicted Secondary Structure

Sequence	20 40 60 80 \| \| \| \| SLLPDKVEKPRLQGQGKILDRGRCQVALSCLVSRDGNVSYAWYRGSKLIQTAGNLTYLDEEVDINGTHTYTCNVSNPVSWESHTLNLTQDCQNAHQ
Prediction	CCCCCCCCCCSSSSSSSSCCCCSSSSSSSSSSCCCCCSSSSSSCCCCCCCCCCCSSSSSSSCCCCCCCSSSSSSSCCCCCCCCCSSCCCCCCCCCC
Confidence	976434899879995444379868999999972999389998169942346798179999627888853899988564478761533577877889
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 \| \| \| \| SLLPDKVEKPRLQGQGKILDRGRCQVALSCLVSRDGNVSYAWYRGSKLIQTAGNLTYLDEEVDINGTHTYTCNVSNPVSWESHTLNLTQDCQNAHQ
Prediction	833454174050434445467430302020306666403030356754355754233034335676342020303032136444043464157468
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

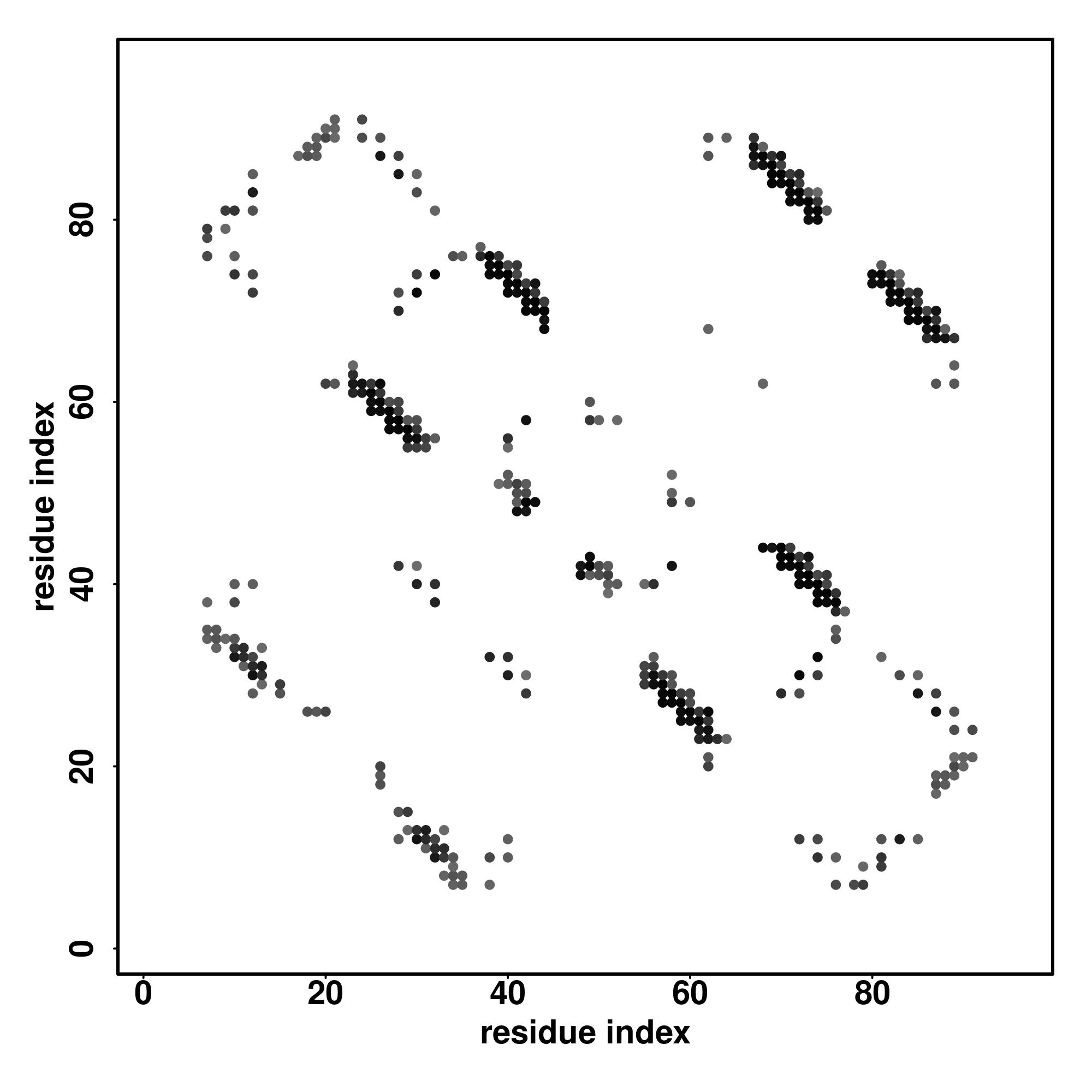

Contact Map

Distance Map

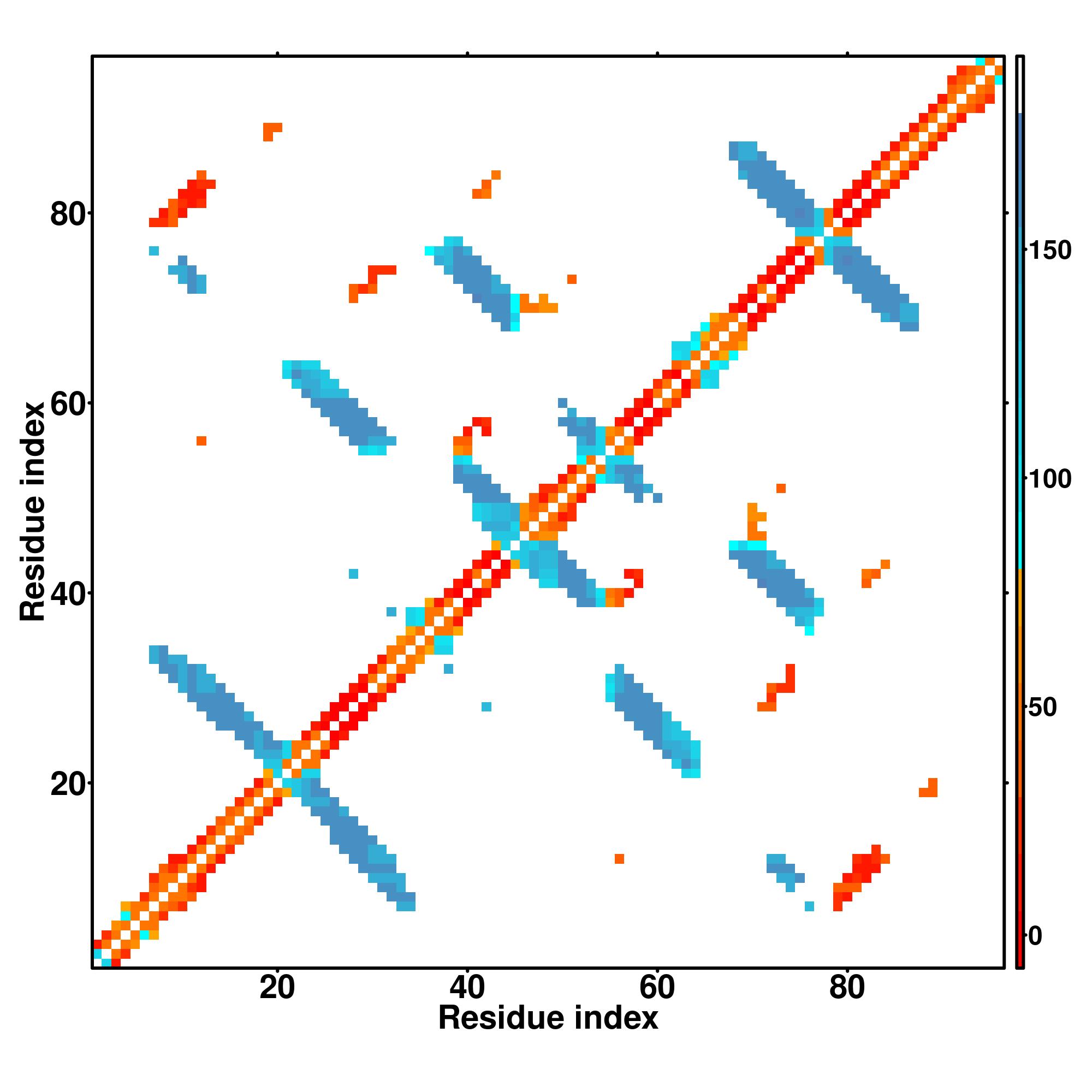

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80

                   |                   |                   |                   |

SS
Seq

CCCCCCCCCCSSSSSSSSCCCCSSSSSSSSSSCCCCCSSSSSSCCCCCCCCCCCSSSSSSSCCCCCCCSSSSSSSCCCCCCCCCSSCCCCCCCCCC
SLLPDKVEKPRLQGQGKILDRGRCQVALSCLVSRDGNVSYAWYRGSKLIQTAGNLTYLDEEVDINGTHTYTCNVSNPVSWESHTLNLTQDCQNAHQ

4ofyD

0.08

0.07

2.91

1.33

DEthreader

LRSVNYPPASVELFGES-NIRYGSSANIQCKSPSNPASQITWIINGRSVPTPTQRSCVSVHSNVAHQINVECMATNPEGSSAKQHVIKIIA-----

3rjdA2

0.16

0.15

4.84

1.08

SPARKS-K

----ELFPAPVLNASVTSPLLEGNLVTLSCETKLLLQLYFSFYMGSKTLRGRNTSSEYQITARREDSGLYWCEAATEDGNVLKRLELQVLG-----

4ofyD4

0.10

0.08

3.12

0.53

MapAlign

-----YPPSVELFG-ESNIRY-GSSANIQCKSLPSNPSQITWIINGRSVPTPQSSSCVSVHSNEAHQINVECMATNPEGSSAKQHVIKIIA-----

3grwA2

0.12

0.11

4.01

0.34

CEthreader

-ERSPHRPILQAGLPANQTAVLGSDVEFHCKVYSDAQPHIQWLKHVTVLKSWISDVRLRLNVSERDGGEYLCRATNFIGVAEKAFWLSV-------

2if7D2

0.20

0.18

5.68

1.12

MUSTER

----RQLRNIQVTNHSQLFQNMTCELHLTCSVEADDNVSFRWEALGNTLS--SQPNLTVSWDPRISEQDYTCIAENAVSNLSFSVSAQKLCE----

3p3yA

0.17

5.49

0.43

HHsearch

KVLTTAERTPSFMYPQSQMVLRGMDLLLECIASGVPTPDIAWYKKGGDLPSDNFNKALRITVSEEDSGEYFCLASNKMGSIRHTISVRVKA-APYW

2if7D2

0.21

0.19

5.97

1.31

FFAS-3D

----RQLRNIQVTNHSQLFQNMTCELHLTCSVEADDNVSFRWEALGNTLS-SQPNLTVSWDPRISSEQDYTCIAENAVSNLSFSVSAQKLCE----

2dm2A

0.16

5.22

0.35

EigenThreader

GSSGSSGAPFFEMKLKHYKIFEGMPVTFTCRVAGNPKPKIYWFKDGKQISPLDGTCSLHTTSTLDDDGNYTIMAANPQGRISCTGRLMVQAVNSGP

5lfrA

0.20

0.19

5.98

1.36

CNFpred

--------PPVIVEMNSVEAIEGSHVSLLCGADSNPPPLLTWMRDGMVLREAVKSLYLDLEVTPGEDGVYACLAENAYGQDNRTVELSVMYAAAAH

1vcaA

0.11

0.10

3.77

1.33

DEthreader

YLEIYSFPKDPEIHLSGPL-EAGKPITVKCSVAVYFDLEIDLLKGDHLMKSQEFSLEVTFTPVIEDIKVLVCRAKLHITVRQAVKELQVYISP---

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.7907

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	5lf5A	0.80	2.27	0.168	0.958	model1_5lf5A.pdb.gz
2	4oi9A	0.78	2.15	0.094	0.969	model1_4oi9A.pdb.gz
3	1nunB	0.78	2.22	0.189	0.917	model1_1nunB.pdb.gz
4	3dmkA	0.78	2.46	0.135	0.958	model1_3dmkA.pdb.gz
5	5uv6A	0.78	2.00	0.141	0.917	model1_5uv6A.pdb.gz
6	3bn3B	0.77	2.11	0.097	0.958	model1_3bn3B.pdb.gz
7	1g1cA	0.75	2.11	0.125	0.917	model1_1g1cA.pdb.gz
8	1e0oB1	0.75	2.71	0.163	0.958	model1_1e0oB1.pdb.gz
9	1koaA2	0.73	2.10	0.115	0.885	model1_1koaA2.pdb.gz
10	1l6zA	0.73	2.72	0.174	0.958	model1_1l6zA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0005102	0.73	receptor binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0002376	1.00	immune system process
GO:0065007	0.79	biological regulation
GO:0050789	0.79	regulation of biological process
GO:0050794	0.75	regulation of cellular process
GO:0009987	0.75	cellular process
GO:0044699	0.74	single-organism process
GO:0044763	0.72	single-organism cellular process
GO:0045321	0.68	leukocyte activation
GO:0048518	0.60	positive regulation of biological process
GO:0048522	0.56	positive regulation of cellular process
GO:0080090	0.55	regulation of primary metabolic process
GO:0031323	0.55	regulation of cellular metabolic process
GO:0051239	0.53	regulation of multicellular organismal process
GO:0046649	0.53	lymphocyte activation
GO:0031325	0.53	positive regulation of cellular metabolic process
GO:0045937	0.52	positive regulation of phosphate metabolic process
GO:0001817	0.52	regulation of cytokine production
GO:0002252	0.51	immune effector process
GO:0002366	0.50	leukocyte activation involved in immune response

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.98	cell part
GO:0044425	0.65	membrane part
GO:0044459	0.61	plasma membrane part
GO:0016020	0.58	membrane
GO:0009897	0.52	external side of plasma membrane
GO:0044424	0.51	intracellular part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.112	2bk8A	0.728	1.96	0.149	0.875	2.7.11.1	71,79
2	0.090	2edrA	0.671	2.69	0.124	0.885	2.7.11.1	NA
3	0.089	2cknA	0.602	3.16	0.160	0.844	2.7.10.1	NA
4	0.084	2edtA	0.665	2.88	0.146	0.917	2.7.11.1	NA
5	0.083	1tnnA	0.614	2.81	0.134	0.854	2.7.11.1	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.04	1iil1	0.787	1.92	0.178	0.906	0.47	III	complex1.pdb.gz	32,33,34,36,37,38,39,40,75,76,80
2	0.04	2fdb1	0.769	2.11	0.169	0.906	0.50	III	complex2.pdb.gz	6,34,35,36,37,38,39,41,43,45,46,48,56,73,75,76,77,82
3	0.04	1ry71	0.758	2.56	0.170	0.927	0.45	III	complex3.pdb.gz	31,32,33,34,37,38,39,56,76,80
4	0.03	1tlk0	0.753	2.28	0.132	0.927	0.81	III	complex4.pdb.gz	7,10,33,35,37,39,40,41,48
5	0.03	2iep0	0.737	2.63	0.163	0.938	0.49	III	complex5.pdb.gz	12,27,29,31,33,35,55
6	0.03	3sdxG	0.712	2.26	0.125	0.896	0.49	GCY	complex6.pdb.gz	5,6,36,78
7	0.03	3qibC	0.704	2.24	0.105	0.875	0.54	III	complex7.pdb.gz	8,35,36,37

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
