D-I-TASSER Q9H7R0-D4

D-I-TASSER results for Q9H7R0-D4

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>Q9H7R0 (86 residues)
KPYECKQCGKAFHHLGSFQRHMIRHTGDGPHKCKICGKGFDCPSSLQSHERTHTGEKPYE
CKQCGKALSHHSSFRSHMIMHTGDGP

Predicted Secondary Structure

Sequence	20 40 60 80 \| \| \| \| KPYECKQCGKAFHHLGSFQRHMIRHTGDGPHKCKICGKGFDCPSSLQSHERTHTGEKPYECKQCGKALSHHSSFRSHMIMHTGDGP
Prediction	CCCCCCCCCCSSCCCCCCCCSSCCSCCCCCSSCCCCCCSSCCCCCCCCSCCCSCCCCCSCCCCCCCSSCCCCCCCCSSCCCCCCCC
Confidence	98446878765344344310112105999821688876554545541120323588882168887662344443100033379797
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 \| \| \| \| KPYECKQCGKAFHHLGSFQRHMIRHTGDGPHKCKICGKGFDCPSSLQSHERTHTGEKPYECKQCGKALSHHSSFRSHMIMHTGDGP
Prediction	76451651333034434144143314464434056133303343414414231344442506512330334341441424146758
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

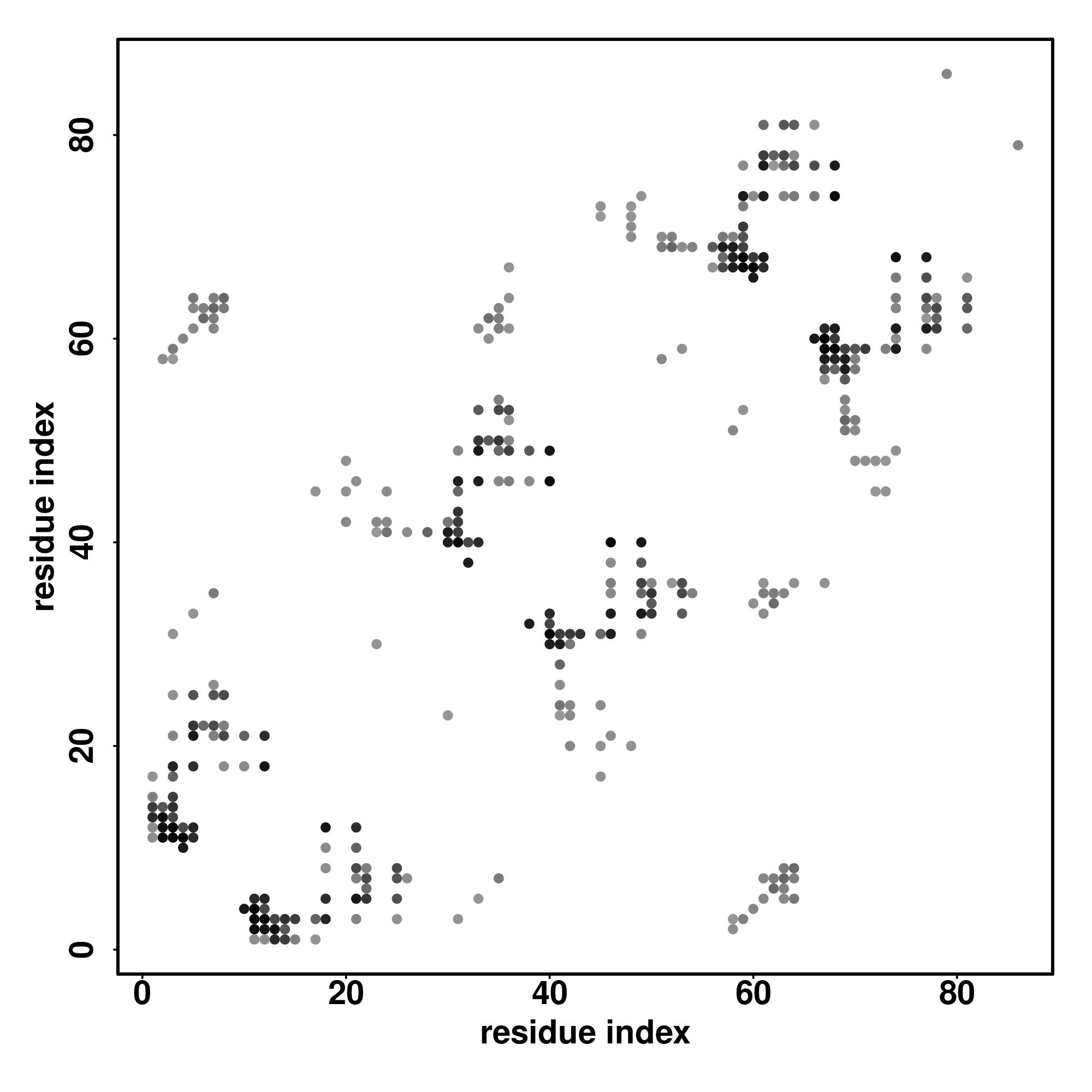

Contact Map

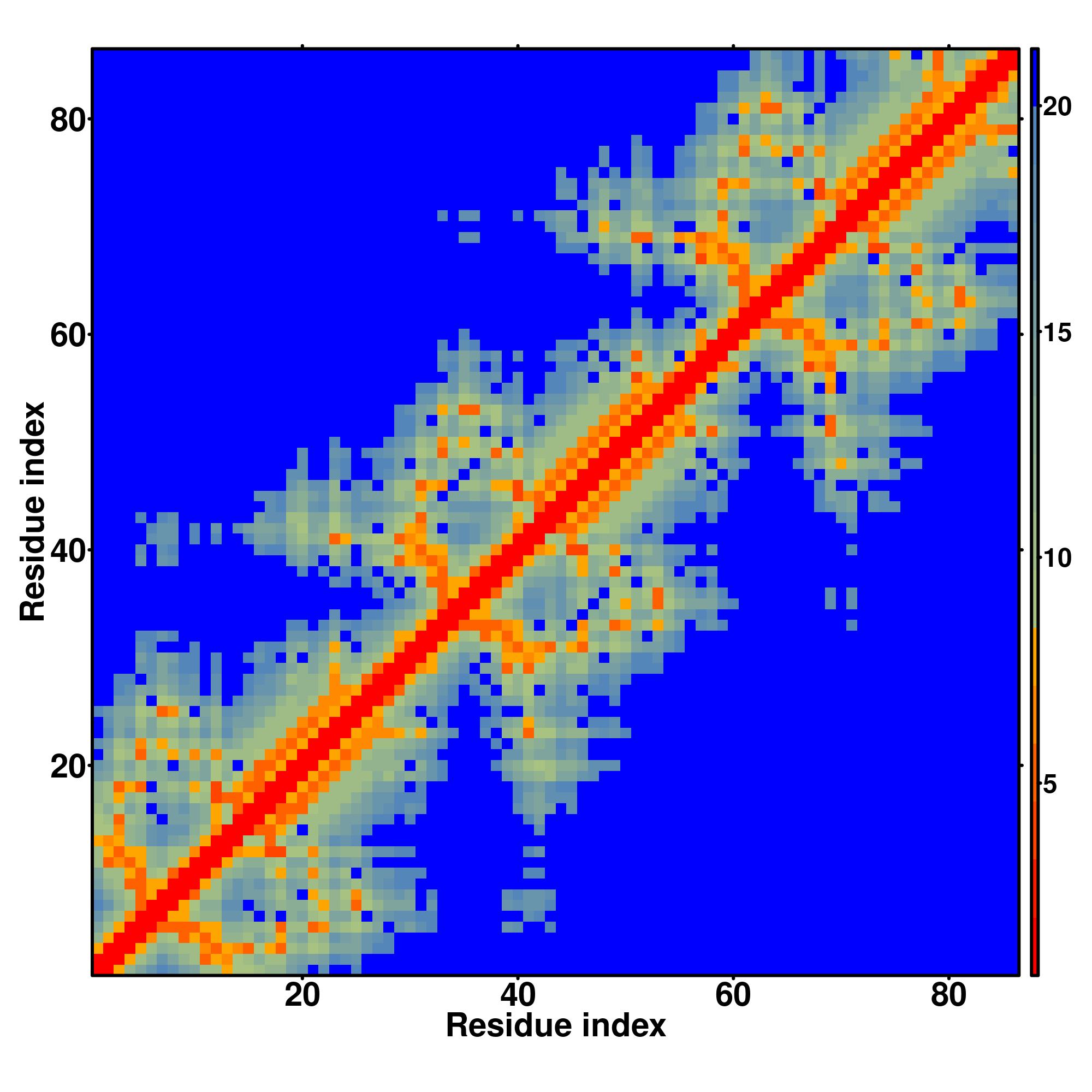

Distance Map

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80

                   |                   |                   |                   |

SS
Seq

CCCCCCCCCCSSCCCCCCCCSSCCSCCCCCSSCCCCCCSSCCCCCCCCSCCCSCCCCCSCCCCCCCSSCCCCCCCCSSCCCCCCCC
KPYECKQCGKAFHHLGSFQRHMIRHTGDGPHKCKICGKGFDCPSSLQSHERTHTGEKPYECKQCGKALSHHSSFRSHMIMHTGDGP

6e93A

0.36

0.35

10.38

1.17

DEthreader

KPYQCK-TCGRCFSQGNLQKHERIHLGLKEFVCQYCNKAFTLNETLKIHERIHTGEKRYHCQFCFQRFLYLSTKRNHEQRHIRE--

5t0uA1

0.37

0.36

10.70

4.09

SPARKS-K

-THKCHLCGRAFRTVTLLRNHLNTHTGTRPHKCPDCDMAFVTSGELVRHRRYHTHEKPFKCSMCDYASVEVSKLKRHIRSHTGE--

5v3gD

0.44

12.93

0.76

MapAlign

KPYVCRECGRGFRDKSNLLSHQRTHTGEKPYVCRECGRGFSWQSVLLRHQRTHTGEKPYVCRECGRGFRDKSNLLSHQRTHTGERN

2i13A

0.49

14.19

0.59

CEthreader

KPYKCPECGKSFSDKKDLTRHQRTHTGEKPYKCPECGKSFSQRANLRAHQRTHTGEKPYACPECGKSFSQLAHLRAHQRTHTGEKP

5v3jE2

0.55

0.52

15.08

3.08

MUSTER

KPYKCKECGKSFTCTTELFRHQKVHTGDRPHKCKECGKAFIRRSELTHHERSHSGEKPYECKECGKTFGRGSELSRHQKIHT----

5v3jE

0.45

13.24

1.20

HHsearch

TPYKCKECGKGFRRGSELARHQRAHSGDKPYKCKECGKSFTCTTELFRHQKVHTGDRPHKCKECGKAFIRRSELTHHERSHSGEKP

5egbA

0.47

13.56

1.44

FFAS-3D

KPYVCRECGRGFSNKSHLLRHQRTHTGEKPYVCRECGRGFRDKSHLLRHQRTHTGEKPYVCRECGRGFRDKSNLLSHQRTHTGEKP

5v3gD

0.48

13.87

0.95

EigenThreader

KPYVCRECGRGFSNKSHLLRHQRTHTGEKPYVCRECGRGFRDKSHLLSHQRTHTGEKPYVCRECGRGFRDKSNLLSHQRTHTGEKP

5v3mC

0.45

13.24

4.35

CNFpred

RRFECKDCDKVYSCASQLALHQMSHTGEKPHKCKECGKGFISDSHLLRHQSVHTGETPYKCKECGKGFRRGSELARHQRAHSGDKP

5v3gD

0.42

0.41

11.95

1.17

DEthreader

KPYVC---REGRGFDSNLLSHQRTHTGEKPYVCRECGRGFSWQSVLLRHQRTHTGEKPYVCRECGRGFRDKSNLLSHQRTHTGEKR

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.6925

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	5undA	0.93	1.15	0.337	1.000	model1_5undA.pdb.gz
2	2i13A	0.93	1.00	0.488	1.000	model1_2i13A.pdb.gz
3	5v3gD	0.91	1.19	0.430	1.000	model1_5v3gD.pdb.gz
4	6wmiA	0.90	1.45	0.360	1.000	model1_6wmiA.pdb.gz
5	6e93A	0.90	1.13	0.388	0.988	model1_6e93A.pdb.gz
6	1p47A	0.89	1.47	0.357	0.977	model1_1p47A.pdb.gz
7	2jpaA	0.89	0.84	0.407	0.942	model1_2jpaA.pdb.gz
8	5t0uA	0.89	1.19	0.376	0.988	model1_5t0uA.pdb.gz
9	5v3jE	0.85	1.62	0.442	1.000	model1_5v3jE.pdb.gz
10	6ml2A	0.84	1.63	0.369	0.977	model1_6ml2A.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0003700	0.86	transcription factor activity, sequence-specific DNA binding
GO:0046872	0.73	metal ion binding
GO:1901363	0.70	heterocyclic compound binding
GO:0097159	0.70	organic cyclic compound binding
GO:0003676	0.56	nucleic acid binding
GO:0003677	0.55	DNA binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0065007	0.98	biological regulation
GO:0050789	0.98	regulation of biological process
GO:0050794	0.97	regulation of cellular process
GO:0080090	0.95	regulation of primary metabolic process
GO:0060255	0.95	regulation of macromolecule metabolic process
GO:0031323	0.95	regulation of cellular metabolic process
GO:0006355	0.94	regulation of transcription, DNA-templated
GO:0044699	0.65	single-organism process
GO:0009987	0.60	cellular process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0005634	1.00	nucleus
GO:0044446	0.63	intracellular organelle part
GO:0044428	0.57	nuclear part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1occA	0.437	3.95	0.000	0.849	1.9.3.1	NA
2	0.060	3b9jI	0.264	4.44	0.041	0.500	1.17.1.4 1.17.3.2	NA
3	0.060	1cvrA	0.437	3.83	0.088	0.767	3.4.22.37	NA
4	0.060	1wppA	0.405	3.37	0.014	0.628	3.6.1.1	NA
5	0.060	1gw6A	0.453	4.12	0.059	0.849	3.3.2.6	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.69	1meyF	0.892	1.07	0.488	0.954	1.46	QNA	complex1.pdb.gz	10,12,13,14,17,20,21,24,42,45,48,49,52,66,70,73,76,77,80
2	0.66	1meyF	0.892	1.07	0.488	0.954	1.43	UUU	complex2.pdb.gz	16,19,31,43,44,70,72
3	0.49	2jpaA	0.888	0.84	0.407	0.942	1.05	QNA	complex3.pdb.gz	1,3,14,15,16,44,47,59,71,72,76
4	0.34	1tf3A	0.725	2.44	0.318	0.988	1.00	QNA	complex4.pdb.gz	29,38,39,40,41,45,48,49,52,57,67,68,69,73,76,77,80
5	0.30	2jp9A	0.860	1.10	0.407	0.942	1.08	QNA	complex5.pdb.gz	12,14,17,20,21,24,38,40,41,42,45,49,52,68,70,73,76
6	0.08	1p47B	0.888	1.06	0.366	0.954	1.39	QNA	complex6.pdb.gz	12,14,20,21,24,38,41,42,45,49,52,66,68,70,73,76,77,80
7	0.08	1p47A	0.893	1.47	0.357	0.977	1.05	QNA	complex7.pdb.gz	16,20,42,43,44
8	0.05	1f2i0	0.624	1.91	0.281	0.721	1.01	III	complex8.pdb.gz	30,31,41,42,46,47,50,54,56

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
