D-I-TASSER Q9P218

D-I-TASSER results for Q9P218

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q9P218
Protein Name: Collagen alpha-1(XX) chain
Gene Name: COL20A1

Input Sequence in FASTA format

>Q9P218 (1284 residues)
MSSGDPAHLGLCLWLWLGATLGREQVQASGLLRLAVLPEDRLQMKWRESEGSGLGYLVQV
KPMAGDSEQEVILTTKTPKATVGGLSPSKGYTLQIFELTGSGRFLLARREFVIEDLKSSS
LDRSSQRPLGSGAPEPTPSHTGSPDPEQASEPQVAFTPSQDPRTPAGPQFRCLPPVPADM
VFLVDGSWSIGHSHFQQVKDFLASVIAPFEIGPDKVQVGLTQYSGDAQTEWDLNSLSTKE
QVLAAVRRLRYKGGNTFTGLALTHVLGQNLQPAAGLRPEAAKVVILVTDGKSQDDVHTAA
RVLKDLGVNVFAVGVKNADEAELRLLASPPRDITVHSVLDFLQLGALAGLLSRLICQRLQ
GGSPRQGPAAAPALDTLPAPTSLVLSQVTSSSIRLSWTPAPRHPLKYLIVWRASRGGTPR
EVVVEGPAASTELHNLASRTEYLVSVFPIYEGGVGEGLRGLVTTAPLPPPRALTLAAVTP
RTVHLTWQPSAGATHYLVRCSPASPKGEEEEREVQVGRPEVLLDGLEPGRDYEVSVQSLR
GPEGSEARGIRARTPTLAPPRHLGFSDVSHDAARVFWEGAPRPVRLVRVTYVSSEGGHSG
QTEAPGNATSATLGPLSSSTTYTVRVTCLYPGGGSSTLTGRVTTKKAPSPSQLSMTELPG
DAVQLAWVAAAPSGVLVYQITWTPLGEGKAHEISVPGNLGTAVLPGLGRHTEYDVTILAY
YRDGARSDPVSLRYTPSTVSRSPPSNLALASETPDSLQVSWTPPLGRVLHYWLTYAPASG
LGPEKSVSVPGARSHVTLPDLQAATKYRVLVSAIYAAGRSEAVSATGQTACPALRPDGSL
PGFDLMVAFSLVEKAYASIRGVAMEPSAFGGTPTFTLFKDAQLTRRVSDVYPAPLPPEHT
IVFLVRLLPETPREAFALWQMTAEDFQPLLGVLLDAGKKSLTYFHRDPRAALQEATFDPQ
EVRKIFFGSFHKVHVAVGRSKVRLYVDCRKVAERPLGEMGSPPAAGFVTLGRLAKARGPR
SSSAAFQLQMLQIVCSDTWADEDRCCELPASRDGETCPAFVSACSCSSETPGPPGPQGPP
GLPGRNGTPGEQGFPGPRGPPGVKGEKGDHGLPGLQGHPGHQGIPGRVGLQGPKGMRGLE
GTAGLPGPPGPRGFQGMAGARGTSGERGPPGTVGPTGLPGPKGERGEKGEPQSLATLYQL
VSQASHVSKFDSFHENTRPPMPILEQKLEPGTEPLGSPGTRSKALVPGEWGRGGRHLEGR
GEPGAVGQMGSPGQQGASTQGLWE

Predicted Contact and Distance Map Used in D-I-TASSER simulation

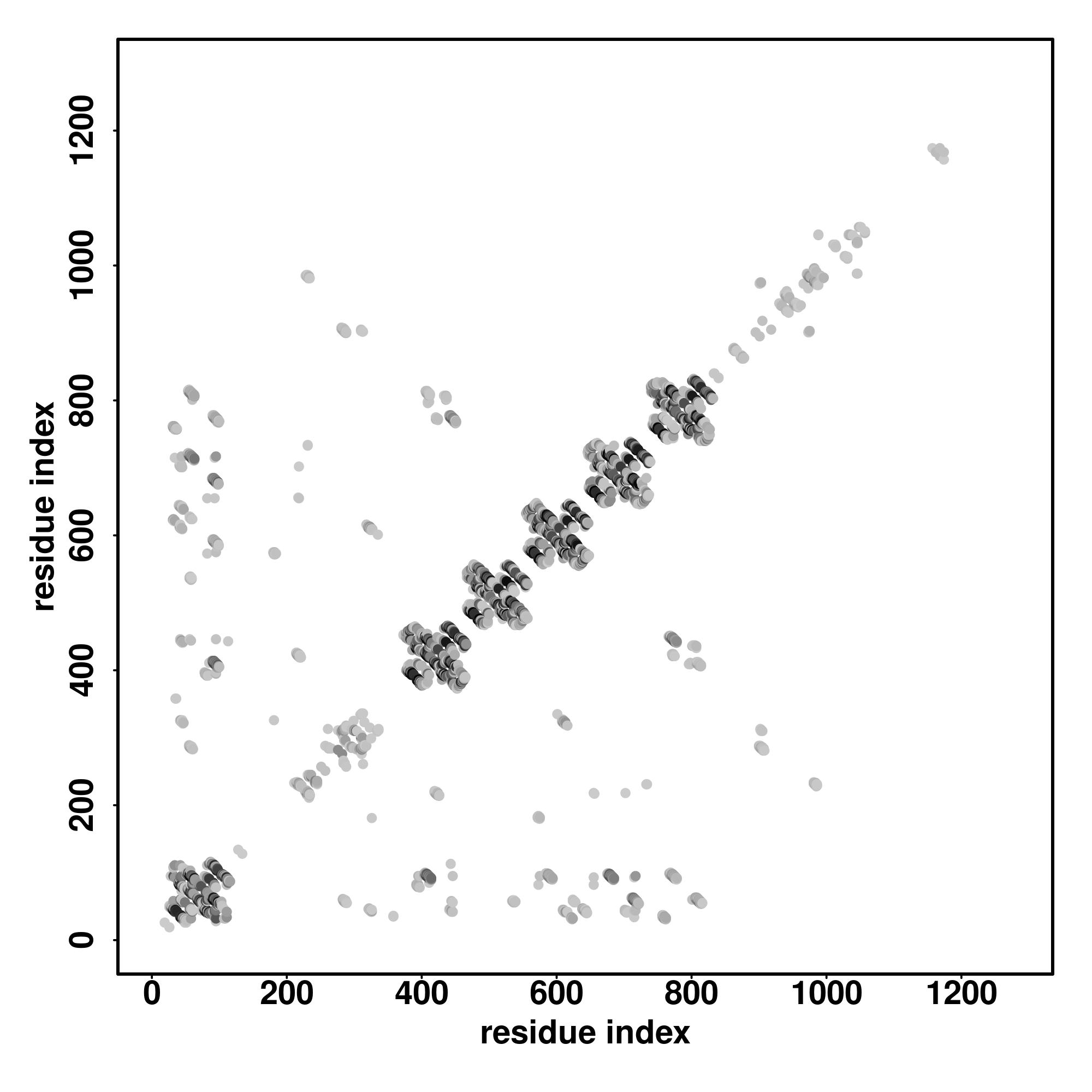

Contact Map

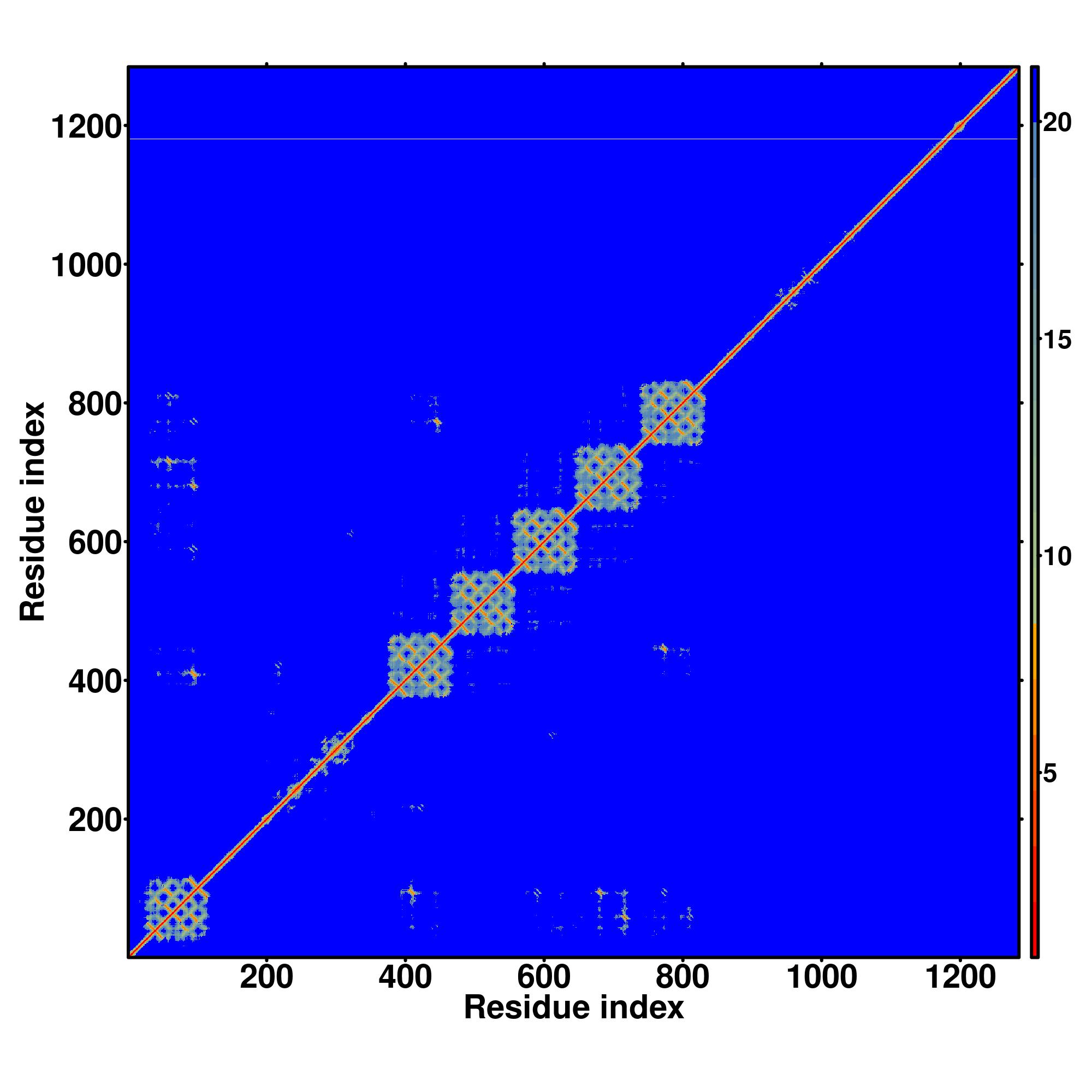

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q9P218-D1	1-115,241-309,988-1067,1226-1284	323		MSSGDPAHLGLCLWLWLGATLGREQVQASGLLRLAVLPEDRLQMKWRESEGSGLGYLVQVKPMAGDSEQEVILTTKTPKATVGGLSPSKGYTLQIFELTGSGRFLLARREFVIEDQVLAAVRRLRYKGGNTFTGLALTHVLGQNLQPAAGLRPEAAKVVILVTDGKSQDDVHTAARVLKDLGVNCRKVAERPLGEMGSPPAAGFVTLGRLAKARGPRSSSAAFQLQMLQIVCSDTWADEDRCCELPASRDGETCPAFVSACSCSQKLEPGTEPLGSPGTRSKALVPGEWGRGGRHLEGRGEPGAVGQMGSPGQQGASTQGLWE
2	Q9P218-D2	116-178,1158-1225	131		LKSSSLDRSSQRPLGSGAPEPTPSHTGSPDPEQASEPQVAFTPSQDPRTPAGPQFRCLPPVPAAGARGTSGERGPPGTVGPTGLPGPKGERGEKGEPQSLATLYQLVSQASHVSKFDSFHENTRPPMPILE
3	Q9P218-D3	179-240	62		DMVFLVDGSWSIGHSHFQQVKDFLASVIAPFEIGPDKVQVGLTQYSGDAQTEWDLNSLSTKE
4	Q9P218-D4	310-366,899-987	146		VFAVGVKNADEAELRLLASPPRDITVHSVLDFLQLGALAGLLSRLICQRLQGGSPRQHTIVFLVRLLPETPREAFALWQMTAEDFQPLLGVLLDAGKKSLTYFHRDPRAALQEATFDPQEVRKIFFGSFHKVHVAVGRSKVRLYVD
5	Q9P218-D5	367-457	91		GPAAAPALDTLPAPTSLVLSQVTSSSIRLSWTPAPRHPLKYLIVWRASRGGTPREVVVEGPAASTELHNLASRTEYLVSVFPIYEGGVGEG
6	Q9P218-D6	458-484,738-830	120		LRGLVTTAPLPPPRALTLAAVTPRTVHTVSRSPPSNLALASETPDSLQVSWTPPLGRVLHYWLTYAPASGLGPEKSVSVPGARSHVTLPDLQAATKYRVLVSAIYAAGRSEAVSATGQTA
7	Q9P218-D7	485-557,831-898	141		LTWQPSAGATHYLVRCSPASPKGEEEEREVQVGRPEVLLDGLEPGRDYEVSVQSLRGPEGSEARGIRARTPTLCPALRPDGSLPGFDLMVAFSLVEKAYASIRGVAMEPSAFGGTPTFTLFKDAQLTRRVSDVYPAPLPPE
8	Q9P218-D8	558-648	91		APPRHLGFSDVSHDAARVFWEGAPRPVRLVRVTYVSSEGGHSGQTEAPGNATSATLGPLSSSTTYTVRVTCLYPGGGSSTLTGRVTTKKAP
9	Q9P218-D9	649-737	89		SPSQLSMTELPGDAVQLAWVAAAPSGVLVYQITWTPLGEGKAHEISVPGNLGTAVLPGLGRHTEYDVTILAYYRDGARSDPVSLRYTPS
10	Q9P218-D10	1068-1157	90		SETPGPPGPQGPPGLPGRNGTPGEQGFPGPRGPPGVKGEKGDHGLPGLQGHPGHQGIPGRVGLQGPKGMRGLEGTAGLPGPPGPRGFQGM

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.48

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	7jptA	0.26	9.97	0.024	0.414	model1_7jptA.pdb.gz
2	3ir7A	0.26	10.03	0.037	0.414	model1_3ir7A.pdb.gz
3	5w1hA	0.26	9.75	0.038	0.405	model1_5w1hA.pdb.gz
4	6sdrA	0.25	8.95	0.050	0.373	model1_6sdrA.pdb.gz
5	5kf6A	0.25	9.32	0.056	0.382	model1_5kf6A.pdb.gz
6	6eqoA	0.25	9.68	0.034	0.386	model1_6eqoA.pdb.gz
7	5h3zA	0.25	9.21	0.030	0.375	model1_5h3zA.pdb.gz
8	1t3tA	0.25	9.42	0.057	0.379	model1_1t3tA.pdb.gz
9	6l42A1	0.25	9.93	0.036	0.393	model1_6l42A1.pdb.gz
10	7alpU2	0.25	10.34	0.036	0.406	model1_7alpU2.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0046872	0.57	metal ion binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044699	0.97	single-organism process
GO:0009987	0.93	cellular process
GO:0044763	0.89	single-organism cellular process
GO:0016043	0.75	cellular component organization
GO:0032502	0.65	developmental process
GO:0008152	0.62	metabolic process
GO:0065007	0.60	biological regulation
GO:0050789	0.59	regulation of biological process
GO:0030198	0.57	extracellular matrix organization
GO:0044767	0.56	single-organism developmental process
GO:0050794	0.55	regulation of cellular process
GO:0044710	0.53	single-organism metabolic process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.87	cell part
GO:0044421	0.64	extracellular region part
GO:0005576	0.48	extracellular region
GO:0044424	0.45	intracellular part
GO:0043234	0.40	protein complex
GO:0031012	0.38	extracellular matrix
GO:0044425	0.37	membrane part
GO:0043226	0.37	organelle
GO:0044444	0.35	cytoplasmic part
GO:0016020	0.35	membrane
GO:0043227	0.32	membrane-bounded organelle
GO:0031224	0.30	intrinsic component of membrane

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1ea0A	0.247	9.77	0.028	0.385	1.4.1.13	NA
2	0.060	1t3tA	0.251	9.42	0.057	0.379	6.3.5.3	NA
3	0.060	3eqlM	0.229	9.09	0.046	0.339	2.7.7.6	589
4	0.060	3b9jC	0.197	8.78	0.040	0.289	1.17.3.2 1.17.1.4	NA
5	0.060	2vumB	0.217	10.05	0.030	0.346	2.7.7.6	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.01	1m6vC	0.227	9.23	0.048	0.341	0.13	ADP	complex1.pdb.gz	112,113,114,687
2	0.01	2vdcA	0.247	9.76	0.027	0.382	0.14	FMN	complex2.pdb.gz	32,417,418
3	0.01	1a9xA	0.237	9.38	0.026	0.362	0.11	ADP	complex3.pdb.gz	686,687,689
4	0.01	3ir6A	0.262	9.97	0.034	0.413	0.12	GDP	complex4.pdb.gz	95,592,593,599
5	0.01	1ce8E	0.236	9.38	0.028	0.360	0.11	IMP	complex5.pdb.gz	45,565,566

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
