D-I-TASSER Q9Y2G9

D-I-TASSER results for Q9Y2G9

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q9Y2G9
Protein Name: Protein strawberry notch homolog 2
Gene Name: SBNO2

Input Sequence in FASTA format

>Q9Y2G9 (1366 residues)
MLAVGPAMDRDYPQHEPPPAGSLLYSPPPLQSAMLHCPYWNTFSLPPYPAFSSDSRPFMS
SASFLGSQPCPDTSYAPVATASSLPPKTCDFAQDSSYFEDFSNISIFSSSVDSLSDIVDT
PDFLPADSLNQVSTIWDDNPAPSTHDKLFQLSRPFAGFEDFLPSHSTPLLVSYQEQSVQS
QPEEEDEAEEEEAEELGHTETYADYVPSKSKIGKQHPDRVVETSTLSSVPPPDITYTLAL
PSDSGALSALQLEAITYACQQHEVLLPSGQRAGFLIGDGAGVGKGRTVAGVILENHLRGR
KKALWFSVSNDLKYDAERDLRDIEATGIAVHALSKIKYGDTTTSEGVLFATYSALIGESQ
AGGQHRTRLRQILDWCGEAFEGVIVFDECHKAKNAGSTKMGKAVLDLQNKLPLARVVYAS
ATGASEPRNMIYMSRLGIWGEGTPFRNFEEFLHAIEKRGVGAMEIVAMDMKVSGMYIARQ
LSFSGVTFRIEEIPLAPAFECVYNRAALLWAEALNVFQQAADWIGLESRKSLWGQFWSAH
QRFFKYLCIAAKVRRLVELAREELARDKCVVIGLQSTGEARTREVLGENDGHLNCFVSAA
EGVFLSLIQKHFPSTKRKRDRGAGSKRKRRPRGRGAKAPRLACETAGVIRISDDSSTESD
PGLDSDFNSSPESLVDDDVVIVDAVGLPSDDRGPLCLLQRDPHGPGVLERVERLKQDLLD
KVRRLGRELPVNTLDELIDQLGGPQRVAEMTGRKGRVVSRPDGTVAFESRAEQGLSIDHV
NLREKQRFMSGEKLVAIISEASSSGVSLQADRRVQNQRRRVHMTLELPWSADRAIQQFGR
THRSNQVSAPEYVFLISELAGERRFASIVAKRLESLGALTHGDRRATESRDLSKYNFENK
YGTRALHCVLTTILSQTENKVPVPQGYPGGVPTFFRDMKQGLLSVGIGGRESRNGCLDVE
KDCSITKFLNRILGLEVHKQNALFQYFSDTFDHLIEMDKREGKYDMGILDLAPGIEEIYE
ESQQVFLAPGHPQDGQVVFYKISVDRGLKWEDAFAKSLALTGPYDGFYLSYKVRGNKPSC
LLAEQNRGQFFTVYKPNIGRQSQLEALDSLRRKFHRVTAEEAKEPWESGYALSLTHCSHS
AWNRHCRLAQEGKDCLQGLRLRHHYMLCGALLRVWGRIAAVMADVSSSSYLQIVRLKTKD
RKKQVGIKIPEGCVRRVLQELRLMDADVKRRQAPALGCPAPPAPRPLALPCGPGEVLDLT
YSPPAEAFPPPPHFSFPAPLSLDAGPGVVPLGTPDAQADPAALAHQGCDINFKEVLEDML
RSLHAGPPSEGALGEGAGAGGAAGGGPERQSVIQFSPPFPGAQAPL

Predicted Contact and Distance Map Used in D-I-TASSER simulation

Contact Map

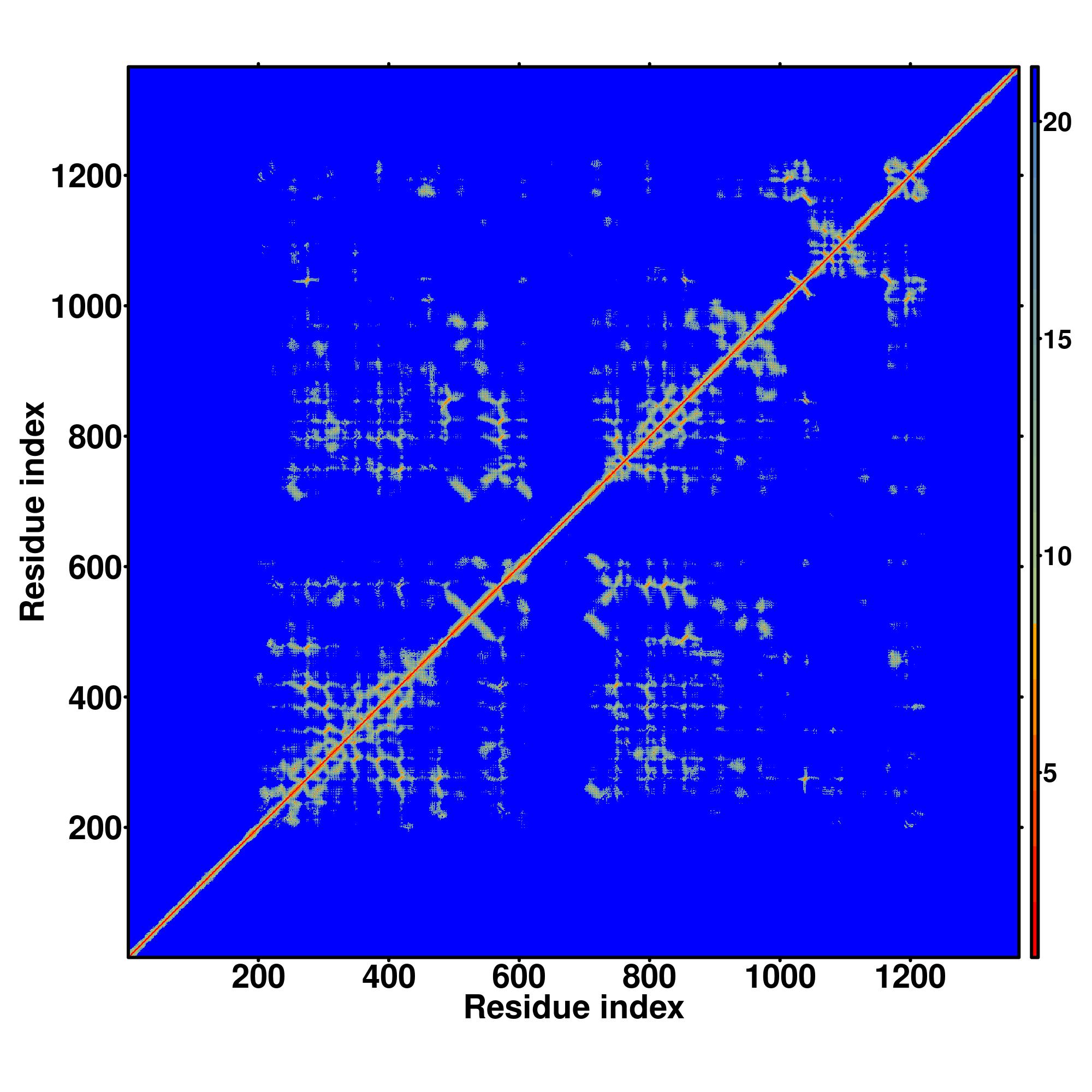

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of DeepPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q9Y2G9-D1	1-1366	1366		MLAVGPAMDRDYPQHEPPPAGSLLYSPPPLQSAMLHCPYWNTFSLPPYPAFSSDSRPFMSSASFLGSQPCPDTSYAPVATASSLPPKTCDFAQDSSYFEDFSNISIFSSSVDSLSDIVDTPDFLPADSLNQVSTIWDDNPAPSTHDKLFQLSRPFAGFEDFLPSHSTPLLVSYQEQSVQSQPEEEDEAEEEEAEELGHTETYADYVPSKSKIGKQHPDRVVETSTLSSVPPPDITYTLALPSDSGALSALQLEAITYACQQHEVLLPSGQRAGFLIGDGAGVGKGRTVAGVILENHLRGRKKALWFSVSNDLKYDAERDLRDIEATGIAVHALSKIKYGDTTTSEGVLFATYSALIGESQAGGQHRTRLRQILDWCGEAFEGVIVFDECHKAKNAGSTKMGKAVLDLQNKLPLARVVYASATGASEPRNMIYMSRLGIWGEGTPFRNFEEFLHAIEKRGVGAMEIVAMDMKVSGMYIARQLSFSGVTFRIEEIPLAPAFECVYNRAALLWAEALNVFQQAADWIGLESRKSLWGQFWSAHQRFFKYLCIAAKVRRLVELAREELARDKCVVIGLQSTGEARTREVLGENDGHLNCFVSAAEGVFLSLIQKHFPSTKRKRDRGAGSKRKRRPRGRGAKAPRLACETAGVIRISDDSSTESDPGLDSDFNSSPESLVDDDVVIVDAVGLPSDDRGPLCLLQRDPHGPGVLERVERLKQDLLDKVRRLGRELPVNTLDELIDQLGGPQRVAEMTGRKGRVVSRPDGTVAFESRAEQGLSIDHVNLREKQRFMSGEKLVAIISEASSSGVSLQADRRVQNQRRRVHMTLELPWSADRAIQQFGRTHRSNQVSAPEYVFLISELAGERRFASIVAKRLESLGALTHGDRRATESRDLSKYNFENKYGTRALHCVLTTILSQTENKVPVPQGYPGGVPTFFRDMKQGLLSVGIGGRESRNGCLDVEKDCSITKFLNRILGLEVHKQNALFQYFSDTFDHLIEMDKREGKYDMGILDLAPGIEEIYEESQQVFLAPGHPQDGQVVFYKISVDRGLKWEDAFAKSLALTGPYDGFYLSYKVRGNKPSCLLAEQNRGQFFTVYKPNIGRQSQLEALDSLRRKFHRVTAEEAKEPWESGYALSLTHCSHSAWNRHCRLAQEGKDCLQGLRLRHHYMLCGALLRVWGRIAAVMADVSSSSYLQIVRLKTKDRKKQVGIKIPEGCVRRVLQELRLMDADVKRRQAPALGCPAPPAPRPLALPCGPGEVLDLTYSPPAEAFPPPPHFSFPAPLSLDAGPGVVPLGTPDAQADPAALAHQGCDINFKEVLEDMLRSLHAGPPSEGALGEGAGAGGAAGGGPERQSVIQFSPPFPGAQAPL

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.2693

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of DeepPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	4bujB	0.84	2.11	0.092	0.865	model1_4bujB.pdb.gz
2	6gmhQ	0.36	7.13	0.062	0.474	model1_6gmhQ.pdb.gz
3	5fvmA	0.35	9.21	0.047	0.517	model1_5fvmA.pdb.gz
4	6tedQ	0.35	6.92	0.054	0.446	model1_6tedQ.pdb.gz
5	6emkA	0.34	9.67	0.033	0.522	model1_6emkA.pdb.gz
6	5cskA	0.34	10.14	0.040	0.537	model1_5cskA.pdb.gz
7	5u1sA	0.34	8.40	0.049	0.470	model1_5u1sA.pdb.gz
8	6af0A	0.33	8.14	0.045	0.460	model1_6af0A.pdb.gz
9	6g2dC	0.33	9.92	0.045	0.519	model1_6g2dC.pdb.gz
10	6bcuA	0.33	8.79	0.059	0.471	model1_6bcuA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:1901363	0.27	heterocyclic compound binding
GO:0097159	0.27	organic cyclic compound binding
GO:0003824	0.24	catalytic activity
GO:0043167	0.19	ion binding
GO:0046872	0.18	metal ion binding
GO:0003676	0.17	nucleic acid binding
GO:0097367	0.13	carbohydrate derivative binding
GO:0003700	0.11	transcription factor activity, sequence-specific DNA binding
GO:0003677	0.11	DNA binding
GO:0000166	0.11	nucleotide binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044699	1.00	single-organism process
GO:0065007	0.73	biological regulation
GO:0050789	0.71	regulation of biological process
GO:0050794	0.70	regulation of cellular process
GO:0032502	0.69	developmental process
GO:0009987	0.68	cellular process
GO:0044767	0.64	single-organism developmental process
GO:0009653	0.62	anatomical structure morphogenesis
GO:0080090	0.60	regulation of primary metabolic process
GO:0044763	0.60	single-organism cellular process
GO:0031323	0.60	regulation of cellular metabolic process
GO:2000112	0.59	regulation of cellular macromolecule biosynthetic process
GO:0051171	0.59	regulation of nitrogen compound metabolic process
GO:0010468	0.59	regulation of gene expression
GO:0006355	0.58	regulation of transcription, DNA-templated
GO:0048583	0.57	regulation of response to stimulus
GO:0048523	0.53	negative regulation of cellular process
GO:0050896	0.52	response to stimulus
GO:0031327	0.51	negative regulation of cellular biosynthetic process
GO:0010605	0.51	negative regulation of macromolecule metabolic process
GO:2000113	0.50	negative regulation of cellular macromolecule biosynthetic process
GO:0051172	0.50	negative regulation of nitrogen compound metabolic process
GO:0042221	0.50	response to chemical
GO:0031347	0.50	regulation of defense response
GO:0010629	0.50	negative regulation of gene expression
GO:0009605	0.50	response to external stimulus
GO:0002252	0.50	immune effector process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044424	1.00	intracellular part
GO:0043226	0.93	organelle
GO:0043229	0.91	intracellular organelle
GO:0043227	0.91	membrane-bounded organelle
GO:0043231	0.90	intracellular membrane-bounded organelle
GO:0044444	0.82	cytoplasmic part
GO:0044422	0.80	organelle part
GO:0044446	0.79	intracellular organelle part
GO:0005634	0.75	nucleus
GO:0032991	0.71	macromolecular complex
GO:0043234	0.70	protein complex
GO:0016020	0.67	membrane
GO:0005829	0.57	cytosol
GO:0005737	0.55	cytoplasm
GO:0044428	0.53	nuclear part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	3iayA	0.209	9.37	0.052	0.314	2.7.7.7	NA
2	0.060	2gtqA	0.219	8.40	0.047	0.306	3.4.11.2	NA
3	0.060	2qf7A	0.197	9.32	0.025	0.295	6.4.1.1	NA
4	0.060	1vbgA	0.229	9.21	0.043	0.340	2.7.9.1	NA
5	0.060	2pffB	0.133	9.03	0.038	0.196	2.3.1.86	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Click to view	Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
	1	0.01	2l1lB	0.071	3.99	0.045	0.078	0.16	III	complex1.pdb.gz	217,278,286,287,291

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Qiqige Wuyun, Yang Li, Quancheng Liu, Xiaogen Zhou, Yiheng Zhu, P. Lydia Freddolino, Yang Zhang. Integrating deep learning potentials with I-TASSER for single- and multi-domain protein structure prediction. Submitted. 2023.
